Rockwell Automation 450L GuardShield POC Safety Light Curtains Pricing & Product Details

Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, and integrated muting.

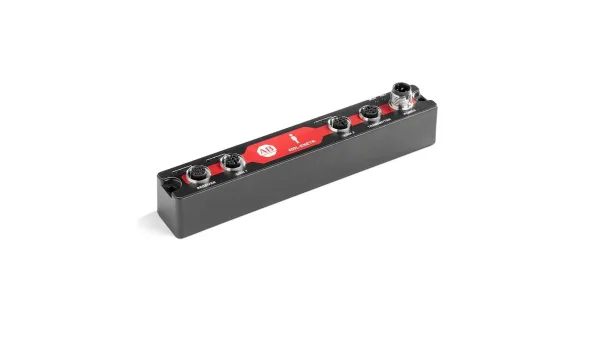

Connection over EtherNet/IP makes the 450L-E light curtain a smart safety device that enhances safety while providing connectivity through The Connected Enterprise®

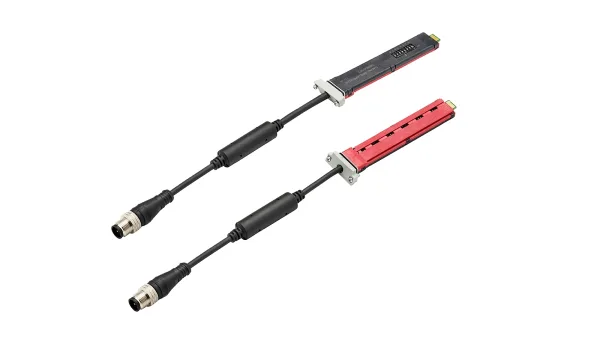

Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
Provides basic on/off functionality (450L-B only)
Bulletin 450L-E Safety Light Curtains

Offers enhanced features including integrated laser alignment, longer operating range and options for cascading, blanking and integrated muting
Features integrated laser alignment for fast and reliable installation
Offers built-in cascading and integrated muting capabilities

Typical applications for the Bulletin 450L-B Safety Light Curtains include:

Electronic fences
Forming operations
Robot cells
Presses
Workstations
