Scape Technologies SCAPE PRO C-XL Pricing & Product Details

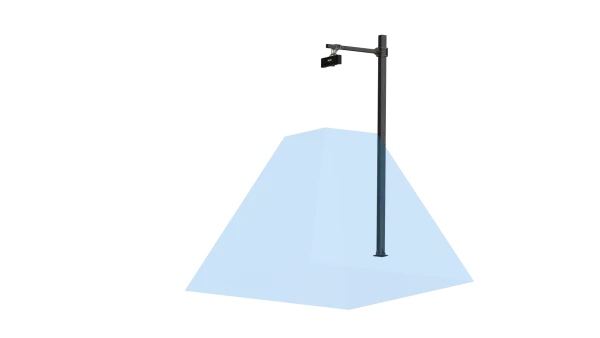

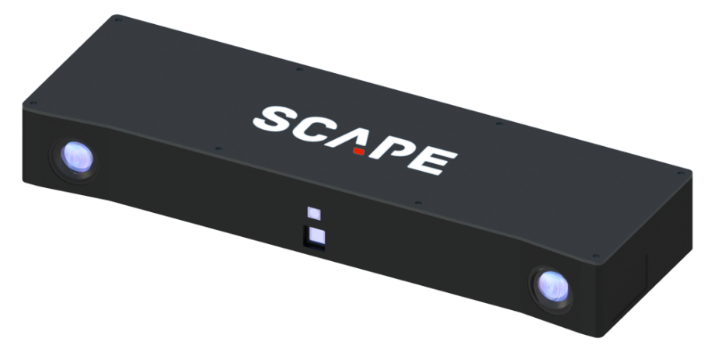

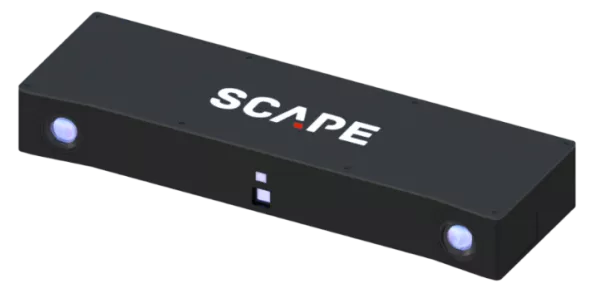

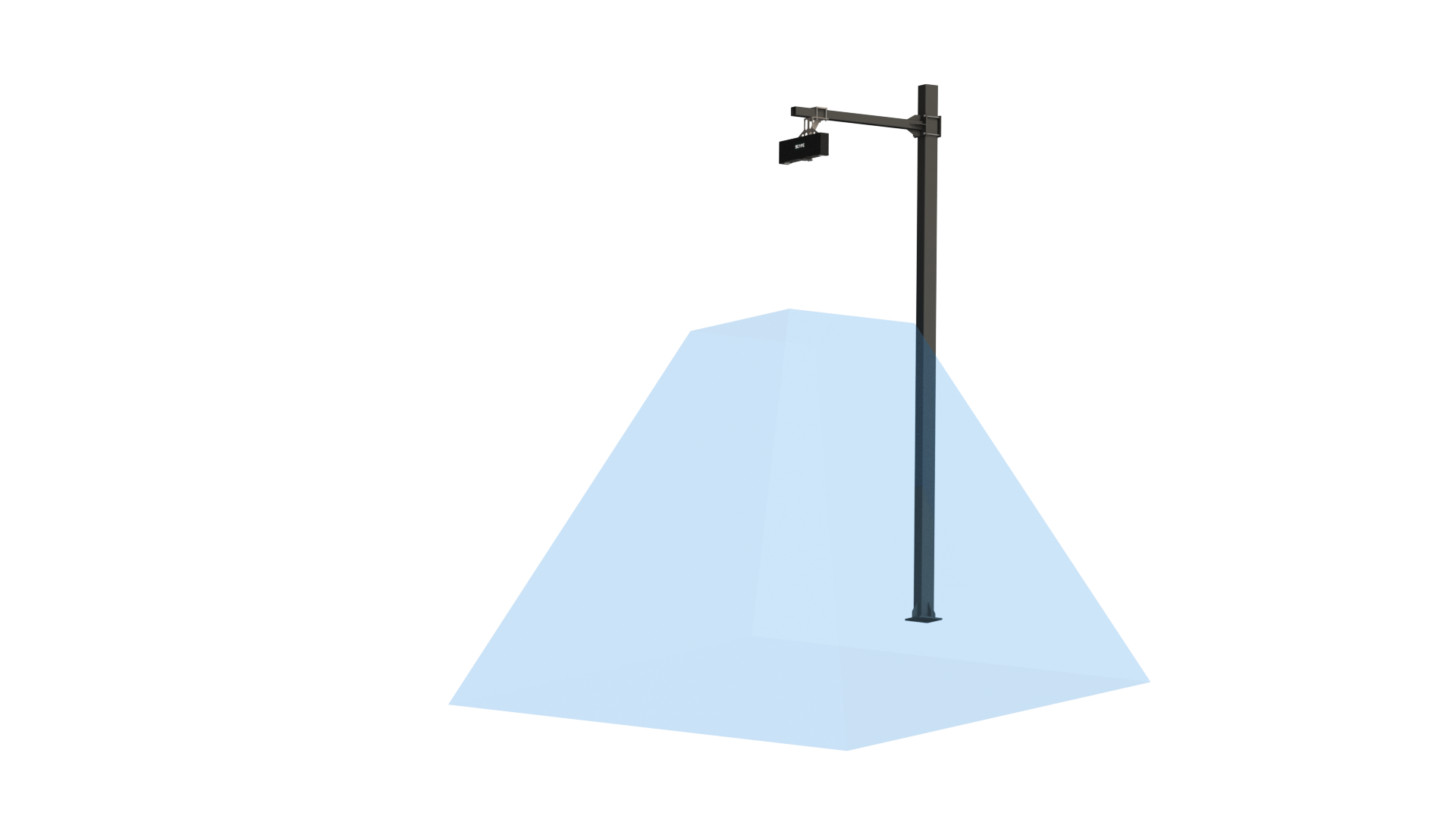

The SCAPE PRO C-XL is a high-capacity industrial 3D scanner designed to capture large-scale 3D data with precision and efficiency. With a working range of 1100 to 3500 mm and an extended range capability of up to 4900 mm, it is particularly well-suited for applications requiring comprehensive area coverage. The scanner features a substantial field of view of 3200 x 3100 mm and generates up to 2.0 million points using blue laser light (447 nm), allowing for the detailed mapping of large objects or scenes without the need for movement during the scanning process.

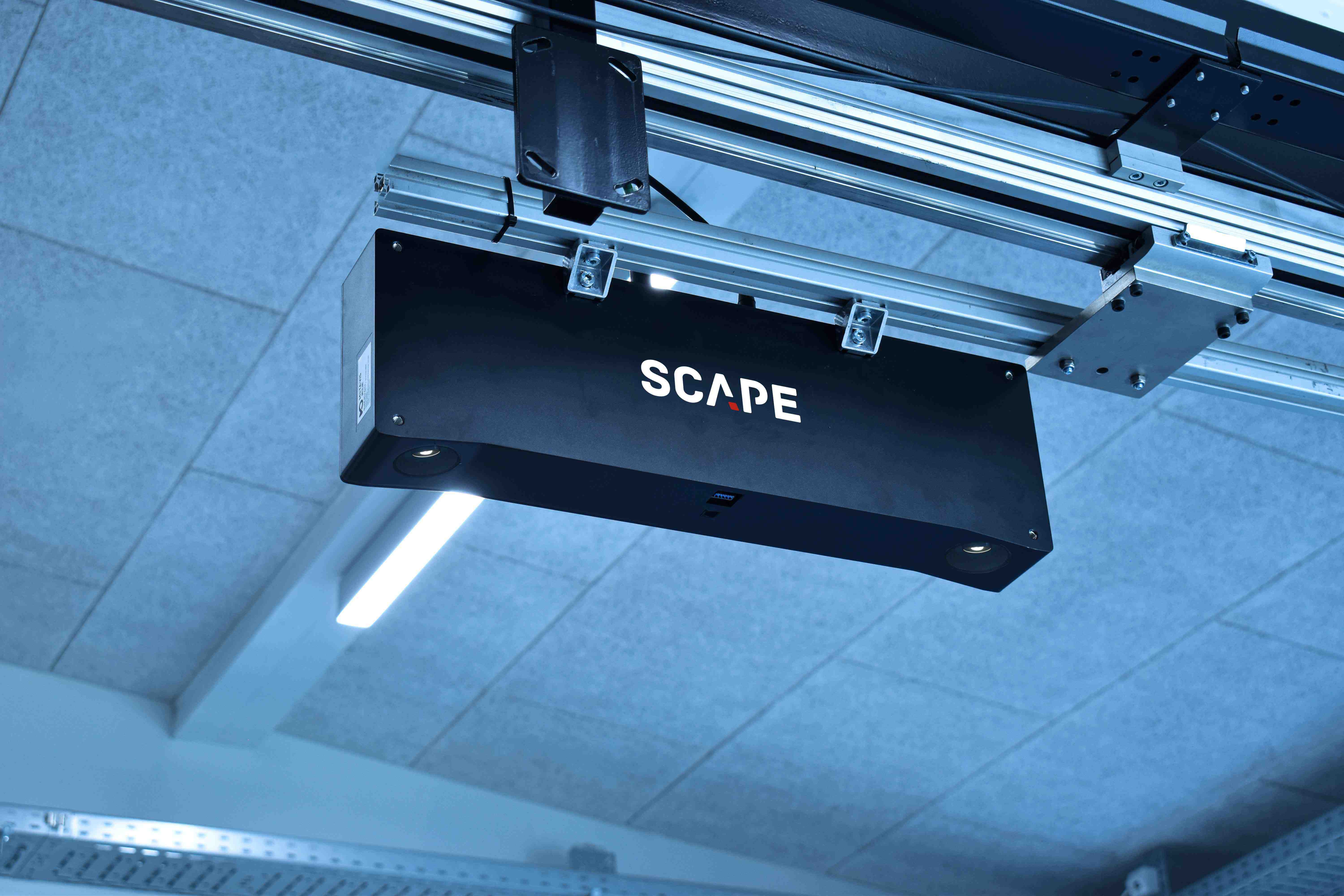

Utilizing binocular scanning technology, the SCAPE PRO C-XL is optimized for tasks such as bin-picking, object detection, and pose estimation, where multiple viewing angles enhance accuracy. Its stationary design provides significant advantages over robot-mounted scanners, notably faster cycle times since the scanner can quickly acquire data without involving robotic movement. The scanner is equipped with a color camera that supports surface inspection and texture mapping, providing critical additional information alongside the geometric data.

With an IP65 rating, the SCAPE PRO C-XL is built to withstand the challenges of demanding industrial environments, offering protection against dust and low-pressure water jets. This versatility makes it suitable for a wide range of applications, including large area scanning for inventory management, quality control in manufacturing, and automated systems that require precise spatial awareness. Its capability to efficiently handle extensive scanning tasks positions the SCAPE PRO C-XL as a valuable tool in enhancing productivity and accuracy in industrial operations.
