YAMAHA GX05L Pricing & Product Details
Ranked Nr. 10 of 33 Linear Motion Systems
GX05L Pricing
Choose your model
GX05
Max. Stroke 800mm | Vertical Payload 8kg | Horizontal Payload 13kg
GX05L
Max. Stroke 800mm | Vertical Payload 12kg | Horizontal Payload 32kg
GX07
Max. Stroke 1100mm | Vertical Payload 16kg | Horizontal Payload 85kg
GX10
Max. Stroke 1250mm | Vertical Payload 30kg | Horizontal Payload 100kg
GX12
Max. Stroke 1250mm | Vertical Payload 45kg | Horizontal Payload 115kg
GX16
Max. Stroke 1450mm | Vertical Payload 55kg | Horizontal Payload 130kg
GX20
Max. Stroke 1450mm | Vertical Payload 65kg | Horizontal Payload 160kg
Price indication:
GX05L Overview

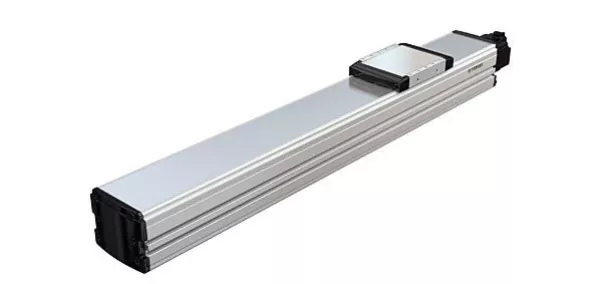

What is GX05L?
Yamaha's GX05L is a high-precision linear slide table that offers excellent accuracy and repeatability for various industrial applications. One of its key features is the use of ground ball screws as a standard feature, which ensures smooth and precise motion control with minimal friction.
All models of the GX05L comply with JIS Standard accuracy class C5, ensuring consistent and reliable performance over extended periods of use. With a positioning accuracy repeatability of ±5µm, the GX05L is capable of handling precision positioning tasks with ease, making it an ideal choice for applications that require high accuracy and repeatability.
The GX05L offers a stroke range of 50 mm to 800 mm, providing flexibility in terms of the range of motion required for different applications. Its compact design and high rigidity allow for easy installation and maintenance, while its high load capacity ensures that it can handle a wide range of payloads.
Overall, the Yamaha GX05L is an excellent choice for industrial applications that require high precision and repeatability, making it well-suited for use in industries such as semiconductor, medical, and precision manufacturing.
What applications is GX05L product best for?
Yamaha's GX05L with its high positioning accuracy and repeatability is ideal for applications that require precise linear motion such as semiconductor manufacturing, electronic assembly, and precision measurement equipment. The ground ball screws provide smooth and accurate motion control while complying with the JIS standard accuracy class C5. Additionally, the stroke range of 50mm to 800mm makes it suitable for both small and large-scale operations.
What are the specifications of GX05L?
| Max. Stroke | 800 mm |
| Horizontal Payload | 32 kg |
| Vertical Payload | 12 kg |
