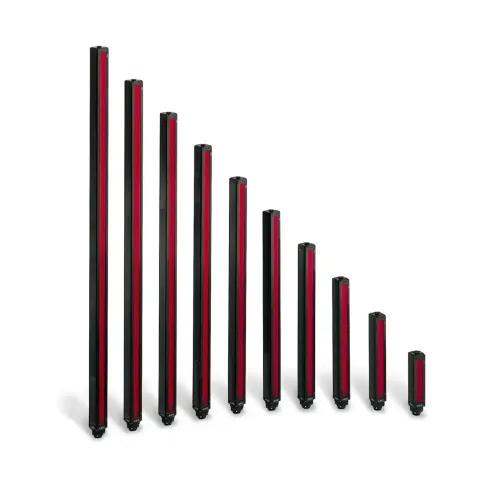

BANNER Measuring light curtain TWO-PIECE MINI-ARRAY SERIES Pricing & Product Details

The A-GAGE® MINI-ARRAY is a programmable measuring light screen system ideal for inspection, profiling, and object detection. Based on the popular MINI-ARRAY emitter and receiver design, this two-piece system is easy to use and installl and does not require a separate controller.

- Simple two-piece measuring light screen for inspection, profiling, and object detection

- Detects single-fault emitter, receiver and dirty lens conditions; continues to function in single-fault conditions

- Diagnostic LEDs provide a simple means of monitoring sensor performance

- Models available with array lengths from 150 to 1220 mm in 150 mm increments plus 1520 mm and 1830 mm models

- Available in models with 9.5 or 19.1 mm beam spacing

- 19.1 mm models optimized for vehicle separation applications

- Two discrete outputs plus EIA-485 serial communication

- System is configurable via the EIA-485 serial interface

- Alarm output signals dirty lens and system fault conditions

- EIA-485 serial communication enables a computer to process scan data and system status.
