BANNER Type 4 safety light curtain EZ-SCREEN 14/30 SERIES Specifications

No reviews yet.
Write a review!

Ranked Nr. 206 of 122 Safety Scanners

FIND SUPPLIER

See all 122 Safety Scanners

- Available in 14 mm resolution for finger, hand and ankle protection or 30 mm resolution for hand and ankle protection

- Operates in ranges from 0.1 m to 6 m (14 mm models) and 0.1 m to 18 m (30 mm models)

- Offers optional reduced resolution (formerly called floating blanking) to ignore constant inflow of materials

- Displays operating status, configuration and error codes

- Includes blocked beam zone indicators

- Features user-configurable trip or latch outputs and Scan Code 1 or 2

- Resists impact, twisting and abusive environments with a durable aluminum housing and metal end caps

- Available with nickel-plated ESD-safe housing for protection against electrostatic discharges or with standard nickel-plated housing

- Offers optional cascading to create a system that responds to a single stop command

- Offers optional lens shields and enclosures for added durability

Optical Safety Device
  • Safety Light Curtain
  • Safety Scanner
Type of beam multibeam
Protection (IP) 65
Other characteristics hand protection, body protection, finger protection
Operating range 0.15-2.4 m

Type 4 safety light curtain EZ-SCREEN 14/30 SERIES Alternatives

See all 216 Safety Scanners
SCHMERSAL SLC 420

5/5 (1)

Protection class IP67Safety type 4 in accordance with IEC 61496-1Resolution 14, 30 and 50 mmProtection field height from 170 mm … 1770 mm
BANNER Compact Type 4 Safety Light Curtain
No reviews yet.
Finger and Hand Detection Type 4 safety light curtains protect personnel from injury and machines from damage by guarding points of operation, access, areas, and perimeters. Banner Engineering offers easy-to-use, compact Type 4 safety light curtains with several resolution options available to detect fingers, hands, arms, or ankles. Our compact safety light curtains are ideal for smaller machines and other space-constrained areas.
BANNER Heavy-Duty Type 4 Safety Light Curtain
No reviews yet.
Finger and Hand Detection Type 4 safety light curtains protect personnel from injury and machines from damage by guarding points of operation, access, areas and perimeters. Banner Engineering offers easy-to-use, heavy-duty Type 4 safety light curtains with several resolution options available to detect fingers, hands, arms, or ankles. Our heavy duty light curtains are built to withstand harsh industrial environments.
BANNER Type 2 Series
No reviews yet.
30 mm Resolution Type 2 Safety Light Curtains Compact optical safeguarding solution is designed for lower-risk applications where risk of injury is limited but some guarding is necessary.Designed for lower-risk applications such as bump or bruise, knock-down, trapping but not crushing, or minor cuts and abrasionsFeatures simple, two-piece integrated system with no control boxDetects narrow objects, such as a hand or ankleOffered with 30 mm resolution and 15 m rangeProvides economical, compact optical safeguardingMeets Type 2 requirements per IEC61496-1/-2 and Category 2 per EN954-1Available in trip (auto reset) or latch (manual reset) models
DATALOGIC Type 2 safety light curtain SG2 EXTENDED
No reviews yet.
SG2 Type 2 Extended offers Finger and Hand resolution safety detection with integrated selectable EDM function and automatic or manual restart mode.
DATALOGIC Safety light curtain SG4 EXTENDED series
No reviews yet.
SG4 Extended offers Finger and Hand resolution safety detection with programmable functions to allow high flexibility and fit every machine needs, with remote configuration or monitoring and also configuration cloning features.
Sick C4-RD
No reviews yet.
The C4-RD safety light curtain is the economic solution for hazardous point protection with the highest level of safety for finger and hand protection. With protective field heights from 150 mm and variants available in 50 mm increments, the C4-RD is ideally suited for use in applications with small access areas to the hazardous point. The thin, clever holder concepts and absence of blind zones enables seamless integration into machines. The rugged design of C4-RD also ensures high availability, and the standardized connectivity and status LEDs guarantee easy commissioning and diagnostics. With a comprehensive range of safety sensors, safe control solutions and a worldwide service network, SICK is the optimal partner for functional safety. At a glance:Protective field heights: 150 mm to 1,200 mm, available in 50 mm incrementsThin, clever brackets and absence of blind zonesRugged housing and high electromagnetic compatibility (EMC)Standardized connectivity and status LEDsResolutions: 14 mm and 30 mmTypical scanning range: Up to 4.5 m

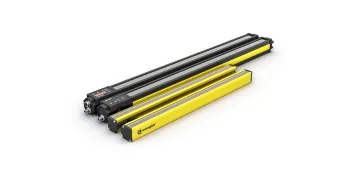

wenglor Safety Light Curtains with Finger Protection
No reviews yet.
TÜV-certified safety light curtains with the highest performance level e in accordance with DIN EN ISO 13849-1 protect people and machines in hazardous areas. The electro-sensitive protective equipment of type 4 offers reliable finger protection with a resolution of 14 mm.
BANNER Measuring light curtain HIGH-RESOLUTION MINI-ARRAY SERIES
No reviews yet.
High-Resolution Measuring Light Curtain - Excels at high-speed, precise monitoring and inspection applications, including on-the-fly sizing, profiling, precision edge and center guiding, and hole detection - Includes controller, emitter/receiver pair and interconnecting cables - Offers programmable controller with a selection of measurement modes, scan modes and output configurations - Available in array heights of 163 to 1951 mm - Provides 120 sensing beams per foot, for reliable detection of objects as small as 2.5 mm - Features a 2 m range with easy, forgiving alignment - Offers programmable blanking, hysteresis and serial communications - Includes advanced configuration software
BANNER SX5-M10
No reviews yet.
Parameterized via softwareProtective field up to 5.5 mWarning field up to 40 mUp to 10 zones can be definedAngular range max. 275 °Angular resolution 0.1 °Optical resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mmLaser class 1 acc. to EN 60825-1Especially resistant to shock and vibrationsConnection of up to three SX5-R remote units possible2 × 2 OSSD outputsProtection class IP65PL d in accordance with EN ISO 13849‐1Category 3 in accordance with EN ISO 13849‐1SIL 2 to IEC 61508
BANNER SX5-B6
No reviews yet.
Parameterized via softwareProtective field up to 5.5 mWarning field up to 40 mUp to 6 zones can be definedAngular range max. 275°Angular resolution 0.1°Optical resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mmLaser class 1 acc. to EN 60825-1Especially resistant to shocks and vibrations1 × 2 OSSD outputsProtection class IP65PL d in accordance with EN ISO 13849‐1Category 3 in accordance with EN ISO 13849‐1SIL 2 to IEC 61508
See all Type 4 safety light curtain EZ-SCREEN 14/30 SERIES Alternatives
