G3 SCARA Robots - 350mm Overview

What is G3 SCARA Robots - 350mm?

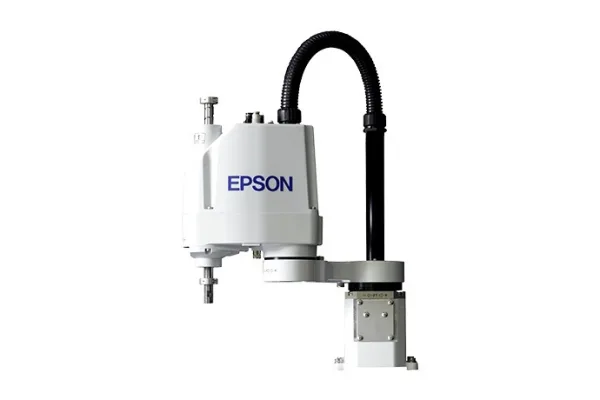

The G3 SCARA Robot is a compact, powerful and low cost robot. Best in class cycle time and precision, tabletop, ceiling and wall mount models. A unique curved arm option, ISO clean & ESD compliant models.

The G3 SCARA Robot is also available in 250mm and 300mm arm lengths

Epson G3 robots lead the industry with best in class cycle time, precision and motion range. With over 30 models available in sizes from 250-350mm, Epson G3 robots are the robot of choice for high precision, high speed applications where performance AND low cost are required. G3 SCARA robots are ideal for applications such as hard drive assembly, lab automation, electronics assembly, medical device assembly, photonics, semiconductor, telecommunications, solar, and many others.

Unique to the G-Series, is the new curved arm option which allows G3 arms to be purchased as right or left curved models to maximize work envelope usage while maintaining small workspace usage overall. G3 arms are available in 250, 300 and 350mm arm lengths and come with 150mm (120 clean) Z-Axis lengths. They are also available in table top, wall or ceiling mount configurations as well as Clean/ESD configurations. Lots of choices. A lot more Power of Choice.

What applications is G3 SCARA Robots - 350mm product best for?

Used for a Wide Variety of Applications and Industries

Automotive - Mirror/glass assembly, Ignition module assembly, Head and tail light assembly and test, Clutch Assembly, Fuel injector assembly, Dashboard assembly

Hard Drive - cover attachment, Disc polishing, Magnetic tape cartridge assembly, High precision drive assembly

Medical - Scalpel blade machining, Dental instrument insert molding, Pacemaker battery assembly, Wire stint laser welding, Hearing aid assembly

Lab Automation - Pipette packaging, DNA test sequencing, Blood Analysis, Test tube capping, Test tube handling

Consumer Products - Paint brush assembly, Electric Tooth brush assembly, Chainsaw Assembly, Connector Assembly

Industrial Products - Smoke detector assembly, Fiber optic connector assembly, Light bulb assembly, Hydraulic valve testing

Telecommunications - Cell phone assembly and test, Radio assembly and test

Pharmaceutical - Custom prescription filling, Tablet packaging, Protein crystal analysis

Solar - Panel assembly

Semiconductor - Assembly and test of custom chips, Wire bonding, Automated board testing, Aerospace electronic components assembly

Electronics - Inspection of PC boards, Automated cleaning of circuit board components

What are the specifications of G3 SCARA Robots - 350mm?

Horizontal Reach 150 mm
Repeatability +/-0.010 mm
Payload 1 kg

G3 SCARA Robots - 350mm Reviews

WRITE A REVIEW!
checkmark
  • Overall

    4.6/5 (1)

Write Review

Sanketkumar Moradiya

ATS AUTOMATION

Nov 30, 2022

  • Overall

    4.6/5

  • Meet Requirements

    5/5

  • Easy to Use

    4/5

  • Quality of Documentation

    4/5

  • Quality of Support

    4/5

  • Maintenance & Uptime

    5/5

  • Value for Money

    5/5

  • Recommendation

    5/5

Title
We had it used this model in our lightweight assembly operation, for the Packaging application, where it was required to Pick up the part and place it on the conveyor.
Pro
Epson Robot is really good for its precise moves and fast speed movement of joints. We had it used in our application where we had a cycle time of 220ppm, which was really fast-paced. We were able to achieve our cycle time with the Epson robot, we had a 2.3kg of payload and a couple of air and vacuum hoses around. This tabletop mount option has done pretty good work, we did not have many places on the cell, we utilized the limit function and limited the joint's movement. We had an EPSON RC+ software for offline programming and all other configuration did not use teach pendant much. this software works great with all the Epson robot types, you can easily edit programs and transfer them to the controller. LEFT & RIGHT configuration is pretty simple, can decide what you want to use and define it right there with the move.
Con
Service Could be better, Takes too much time for repair or replacement!! However Remote support is good! Can just call Epson tech support and get the information you want! sometimes they need physical units for troubleshooting and repair which is a long process to ship them and get it back at your own expense!
