Fetch Robotics PalletTransport1500 Specifications

No reviews yet.
Write a review!

Ranked Nr. 99 of 184 Mobile Robots

FIND SUPPLIER

See all 184 Mobile Robots

The Fetch Robotics PalletTransport1500 is an autonomous pallet conveyance system designed to automate pallet transport, reduce traffic, and incidents in warehouse and manufacturing environments. By reducing dependency on forklifts and lift trucks, the PT1500 increases safety while minimizing training time and cost. The system is ideal for workflows like kitting, zone picking, and pallet building, and can move multi-sized pallets with payloads of up to 2500lbs around your dynamic facility with ease.

One of the key benefits of the PT1500 is that it eliminates manual travel with a pallet jack or forklift, increasing safety by automating putaway, replenishment, crossdocking, returns, and more. Additionally, it allows for case pick-to-robot with Autonomous Mobile Robot (AMR) pickup, delivery, and drop-off using the Pallet Transfer Station, which further reduces the risk of injury from moving heavy pallets.

The PT1500 can safely transport full pallets up to 48"x48" with a 2500lbs capacity in dynamic warehouse environments. It features eight 3D cameras and two LiDAR sensors for superior navigation and fast, safe stops when an obstacle is detected. Additionally, distribution and manufacturing workflows can be customized from anywhere with FetchCore™ cloud software.

The safety features of the PT1500 are also noteworthy. It is a collaborative, autonomous mobile robot designed to work around people without compromising safety at the expense of efficiency. The system is equipped with some of the most advanced safety features in the industry, including 2D LiDAR scanners with a 25m range for mapping, localization, obstacle avoidance, and object detection. Multiple 3D depth cameras allow for superior robot vision to avoid both ground-based and overhanging dynamic obstacles, including forklifts, pallet jacks, and people.

Battery Life 9 hrs
Application
  • Agriculture
  • Cleaning and maintenance
  • Delivery
  • Material handling
  • Picking and Packing
  • Security and surveillance
  • Transportation
Industry
  • Agriculture
  • Healthcare
  • Logistics
  • Manufacturing
  • Mining
  • Retail
  • Warehousing
Speed 1.5 m/s
Type of Technology
  • ACR
  • AGV
  • AMR
  • IMR
Product mass 798 kg
Technology
  • ACR
  • AGV
  • AMR
  • IMR
Payload 1136 kg
Extra info 2D Laser Sensors: Cameras 2x SICK, 98 ft (30 m), 3D Depth: 275 degrees 8x cameras, 360 degree coverage

PalletTransport1500 Alternatives

See all 222 Mobile Robots
iRAYPLE C060D CE
No reviews yet.
The IRAYPLE C060D CE offers a robust lifting solution with a maximum load capacity of 600 kg, making it suitable for a variety of applications. Its compact dimensions of 950 mm×650 mm×300 mm allow it to navigate through narrow passages and accommodate different types of vehicles effectively. Equipped with laser SLAM and visual fusion navigation technologies, it ensures precise maneuvering in diverse environments, catering to various requirements.One of its standout features is the array of obstacle avoidance solutions, including laser and TOF technologies, ensuring enhanced safety during operation. Additionally, the C060D CE supports fast battery replacement, eliminating the need for extended charging times and ensuring continuous operation. With Wi-Fi connectivity offering high bandwidth and low latency, users can enjoy timely scheduling and command execution, enhancing operational efficiency.The C060D CE boasts impressive performance metrics, with a maximum operating speed of 2.0 m/s and acceleration of 1.0 m/s². Its stop position accuracy of ±10 mm and stop angle accuracy of ±1° ensure precise positioning, while features like anti-collision bar detection and sound and light alarms further enhance operational safety. Designed for versatility and reliability, this lifting solution operates effectively in a wide range of environments, with an operating temperature range of 0℃ to 40℃ and operating humidity of 5% to 90% without condensation, making it suitable for various industrial and commercial applications.

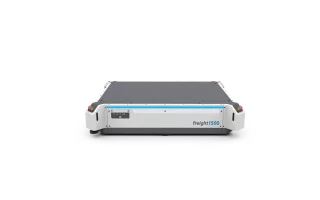

Fetch Robotics Freight1500
