Hypersen HPS-LCF3000 Pricing & Product Details
Ranked Nr. 141 of 93 3D Vision Systems
HPS-LCF3000 Overview
What is HPS-LCF3000?

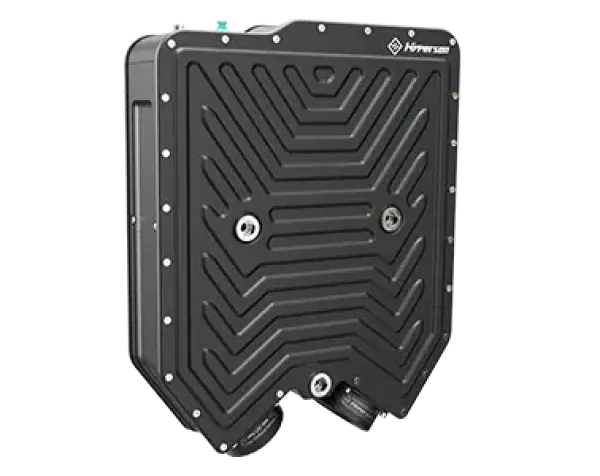

Hypersen's HPS-LCF3000 is a 3D inspection system suitable for transparent, mirrored and highly reflective materials. It has a field of view of 13mm and a measurement range of 6mm with a Z-axis repeatability of 0.15μm. The system can record detailed raw data and generate various forms of 2D/3D graphs. It can capture 2048 points/profile and has an ultra-high-speed scanning rate of 35000 lines/sec.
The system comes with a complete SDK and one-stop software support service. It is applied in industrial precision measurement and scientific research. The stand-off distance of the HPS-LCF3000 is 59mm, and the maximum surface slope on the mirror is ±13.5 degrees. Its dimensions are 449.3397106 mm, and it weighs 20 kg.
The HPS-LCF3000's ingress protection level is IP55 and it requires a power of 24 VDC, 2A. It has PC connectivity through 40G fiber and digital input through optocoupler input and output. The system's technical specifications are subject to the latest official datasheet, and Hypersen reserves the right for the final interpretation.
Overall, the HPS-LCF3000 is a powerful 3D inspection system designed for materials with unique optical properties. With its high-speed scanning and accurate measurements, it is suitable for precision measurements in industrial and scientific settings. Its ability to capture detailed raw data and generate 2D/3D graphs makes it an ideal tool for analyzing complex surfaces.
What applications is HPS-LCF3000 product best for?
The Hypersen HPS-LCF3000 is a high-precision 3D inspection sensor suitable for a range of applications. One of its primary strengths is its ability to accurately measure 3D topography, making it ideal for use in industries where surface topography plays an important role, such as in automotive and aerospace manufacturing.
Another key application for the HPS-LCF3000 is surface defects detection. With its high resolution and precision, the sensor can detect even the smallest defects on a surface, such as scratches, dents, and cracks. This makes it an essential tool in quality control and inspection processes across a range of industries.
The sensor is also well-suited for gap and flush measurement applications. Its ability to accurately measure the distance between two surfaces and detect any inconsistencies makes it valuable in manufacturing settings, where precise measurements are crucial to ensure the quality and safety of finished products.
The HPS-LCF3000's curved contour scanning capabilities are another useful feature, especially in industries where parts with complex shapes and contours are common, such as in the medical device and electronics industries. The sensor can accurately scan and measure curved surfaces, providing detailed data for use in design and production processes.
The sensor's ability to measure step height is another important application. This makes it useful in industries where precise measurements of height differences are necessary, such as in semiconductor manufacturing.
Finally, the HPS-LCF3000 can also be used for impurity and air bubble inspection, making it valuable in the pharmaceutical and food industries, where detecting and removing impurities and bubbles is critical to ensuring product safety and quality.
Overall, the Hypersen HPS-LCF3000 is a versatile sensor that can be used in a wide range of industries and applications, providing high-precision 3D measurement data for use in production, quality control, and scientific research.
What are the specifications of HPS-LCF3000?
| Image Type |
|
| Working distance | 1000 mm |
