KUKA LBR IIWA 7 R800 Pricing & Product Details

3.2/5 (1) Write a review!

Ranked Nr. 84 of 210 Cobots

FIND SUPPLIER

See all 210 Cobots

LBR IIWA 7 R800 Pricing

Price indication:

LBR IIWA 7 R800 Overview

What is LBR IIWA 7 R800?

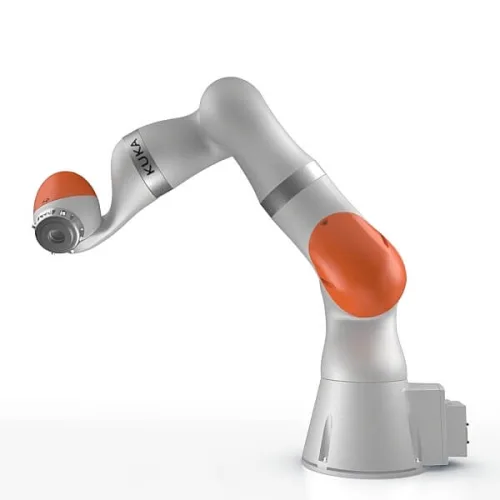

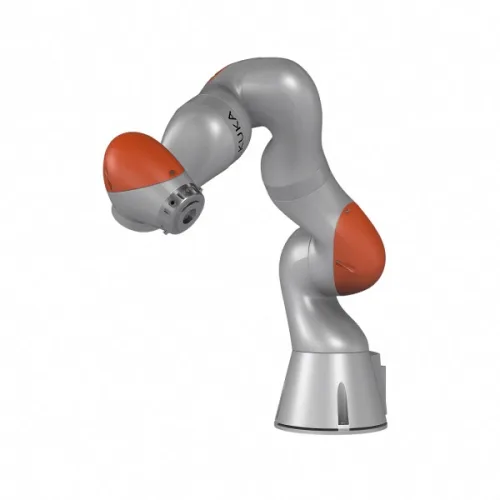

The KUKA LBR IIWA 7 R800 is a highly adaptable collaborative robot designed for precision tasks in industrial settings. With a reach of 800 mm and a rated payload capacity of 7 kg, it is suitable for applications that require precise handling and manipulation of parts. The robot offers a high degree of flexibility with its 7 axes and can operate safely alongside human workers, meeting Category 3 and Performance Level d safety standards according to EN ISO 13849-1.

This robot is designed to function within a temperature range of 5°C to 45°C and has an IP54 protection rating, ensuring resistance to dust and splashes of water. It is equipped with the KUKA Sunrise Cabinet for its control system, providing robust and reliable operation. The LBR IIWA 7 R800 also features a pose repeatability of ±0.1 mm, which enhances its accuracy in tasks requiring fine motor control.

The KUKA LBR IIWA 7 R800 is versatile in its mounting options, allowing for floor, ceiling, or wall installation. It operates at varying speeds depending on the axis, with the maximum speed for the A1 axis reaching 98°/s under rated payload conditions. This makes it well-suited for tasks such as assembly, material handling, and quality inspection in dynamic production environments.

What applications is LBR IIWA 7 R800 product best for?

  1. Precision Assembly: The KUKA LBR IIWA 7 R800 is ideal for high-precision assembly tasks, such as assembling electronic components or intricate mechanical assemblies, due to its ±0.1 mm repeatability and 7 kg payload.
  2. Laboratory Automation: With its IP54 rating and ability to operate in a range of 5°C to 45°C, this robot is well-suited for laboratory automation tasks involving delicate handling and precise movements.
  3. Collaborative Tasks: Designed for safe interaction with human workers, it is suitable for collaborative tasks in manufacturing environments where it performs alongside operators without extensive safety barriers.

What are the specifications of LBR IIWA 7 R800?

See all LBR IIWA 7 R800 specifications

LBR IIWA 7 R800 Reviews

WRITE A REVIEW!
checkmark

  • Overall

    3.2/5 (1)

Write Review

Patricia Leconte

Colruyt group

Nov 9, 2022

  • Overall

    3.2/5

  • Meet Requirements

    4/5

  • Easy to Use

    1/5

  • Quality of Documentation

    2/5

  • Quality of Support

    4/5

  • Maintenance & Uptime

    5/5

  • Safety

    5/5

  • Compatibility

    2/5

  • Value for Money

    3/5

  • Recommendation

    3/5

Period
  • 2020
  • 2019
  • 2018
Title
I used the robot for multiple cases going from complex assembly operations, pick and place and contour following applications.
Pro
The robot has accurate force sensors in each joint and the 7 dof are usefull for complex applications. The robot is programmed in Java. It has some advantages however it is often a drawback if you are not used to program in Java.
Con
This robot is not plug and play and documentation is heavy. The installation procedure is complex compared to other brands
READ ALL 1 REVIEWS
