The omnidirectional MPO-700 is the ideal basis for high-end service robots. Its four Omni-Drive-Modules enable it to make smooth journeys in all directions. In addition it combines the advantages of classic wheels with the surface mobility otherwise only offered by Mecanum wheels.

The MPO-700's Omni-Drive-Mmodules offer important advantages compared to other omnidirectional drive systems, such as the MPO-500's Mecanum wheels.

The modules are also controlled by ROS.

Technology
  • ACR
  • AGV
  • AMR
  • IMR
Dimensions
Operating time up to 12 h
Product mass 120 kg
Payload 400 kg
Extra info FEATURES: Strong and agile: The omnidirectional robot MPO-700 offers full surface mobility combined with extraordinary payloads. / Unflinching: The MPO-700 will not get out of step even on uneven floors and offers a resilient odometry. / Stable substructure: The MPO-700 uses integrated robotic arms to move vibration-free into place and then serves as a solid foundation.

MPO-700 Downloads

MPO 700 Datenblatt
You need to register to download this file.

MPO-700 Alternatives

See all 222 Mobile Robots
Swisslog CarryPick
Payload 600kg | Product mass 209kg

5/5 (1)

The CarryPick storage and order picking system adapts to changing customer demands. CarryPick is an innovative automated storage and picking system designed for multi-channel intralogistics. A swarm of mobile vehicles (KMP600), developed by Swisslog and KUKA, navigates via a grid to deliver mobile racks to workstations for picking and reducing the travel path for workers.The workstations are safe and configurable to your requirements. They also reduce the picking error rate thanks to pick-by-light and pick pointer. Users benefit from an intuitive workstation interface making it easy to use and ensuring smooth processes.React quickly to changes of goods range. The standard mobile racks can be customized for different sized and shaped articles. This is especially suitable for the fashion industry where clothes require hangers. Warehouse building requirements are also very modest. Thanks to the simplicity of its components, the system can easily be moved to another location. This also means the system can be installed in urban areas where builings have mostly low ceilings.Start small and expand flexibly in line with your performance and growing volumes by adding more vehicles. Project implementation and employee training is accomplished very quickly. Complete installation takes less than 6 months.
Neobotix MPO-500
AGV | Payload 80kg | Product mass 80kg
No reviews yet.
The MPO-500 mobile robot has Mecanum wheels that give it exceptional maneuverability and the ability to move smoothly in any direction. This allows the omnidirectional robot not only to navigate agily through narrow and twisty environments, but also opens up completely new working possibilities. Robot arms can be quickly moved to new positions, components can be freely positioned and measuring systems can be exactly positioned. Here the user also benefits from the freedom in development by ROS.
Geek+ MP1000R
Payload 1000kg | Product mass 169kg
No reviews yet.
Unique advantages of moving solution: Rapid Deployment Ready and easy deployment for singular robots Short project implementation cycle of only 2-4 weeks for multiple robots Smooth Operations Able to independently create and modify mapping according to requirements Customizable process management and charging policies High Investment Value Increase in moving efficiency by at least 50% Possible to achieve return on investment within a year Flexible Scheduling Flexible addition or removal of robots to fit changing needs Supports the simultaneous utilization of different models of robots Highly Adaptable No need for environment modifications Suitable for complex human-robot interaction scenarios
WObit MOBOT® AGV FlatRunner MW
Payload 1800kg | Product mass 750kg
No reviews yet.
MOBOT® AGV FlatRunner MW (Automated Guided Vehicle) is a mobile robot for the transport of goods, in which movement is executed automatically. Its main task is to autonomously transport goods between selected points. Navigation The robot can be navigated using a laser mapping system (LMS), a free navigation system using a natural object such as walls for navigation. Unlimited mobility The robot drive system is equipped with Mecanum wheels, which allows movement in any direction and execute 360-degree rotations. A wheel consists of several rollers that are each aligned at an angle of 45 degrees relative to the axle. This excellent maneuverability shortens throughput times and reduces idle times in the manufacturing process. Along with safety scanners and laser navigation, this solution vastly increase possibilities of robot application and allows safe and precise movement even in the tightest spaces. Charging option The robot is equipped with 2 batteries in cassettes, which enable quick swapping. it can also, be charged using a wire charging station, optionally there is a possibility of use an automatic charging station.
IBG Automation FC Load
AGV | Payload 1000kg | Product mass 450kg
No reviews yet.
Autonomous forklift AGV for picking up and transporting Euro pallets or pallet cage.

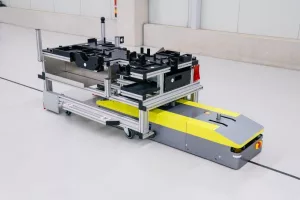

IBG Automation FC 450
Payload 250kg | Product mass 138kg
No reviews yet.
STÄUBLI PF100 omni
Payload 7000kg | Product mass 1000kg
No reviews yet.
The STÄUBLI PF100 omni is a versatile autonomous mobile robot designed for various industrial applications. Its standout feature is its omni-directional wheel system, allowing it to move in any direction without turning. This unique mobility enables precise and efficient material handling in tight spaces and complex layouts, making it suitable for industries where space optimization is crucial.With a payload capacity of up to 100 kg and a top speed of 2 m/s, the PF100 omni is a robust and capable solution for tasks such as material transport, palletizing, and assembly. It operates seamlessly in diverse environments, thanks to its compatibility with industry-standard software systems and protocols, making integration into existing automation processes straightforward. Additionally, it offers a high degree of safety with advanced collision avoidance technology and user-friendly programming interfaces.One of its lesser-known but significant specifications is its adaptability to extreme temperatures. The PF100 omni can operate in environments with temperatures ranging from -20°C to +45°C, making it suitable for both cold storage and high-temperature manufacturing settings. This versatility, combined with its omni-directional mobility and high payload capacity, positions the PF100 omni as a valuable asset in various industrial automation scenarios, optimizing productivity and adaptability in challenging conditions.
Wise Robotics F4-1000C
Payload 1000kg | Product mass 795kg
No reviews yet.
A powerful and precise robot delivering fast and accurate automated forklift operations For all forklift needs, the F4 is the ideal automated solution. It can handle all manner of large and irregular loads with both extreme accuracy and high speed. The F4 can work in synergy with goods to person systems, moving products swiftly from goods into the pick faces. It can also integrate seamlessly into A-to-B arrangements or production line operations. If your products require forklifting for mobility, the F4 is the optimal automated choice.
TÜNKERS TACT 1208
AGV | Payload 1000kg | Product mass 480kg
No reviews yet.
The TÜNKERS Automated Cart TACT 1208 is a bidirectional, ramp-capable underride AGV, particularly characterised by its modular build. It adapts flexibly to different applications matching modules. This is made possible, among other things, by use of lifting table modules, gripper systems, roller conveyors, or accumulating conveyor systems.
Multiway Robotics Dual Differential Drive
AMR | Payload 300-1000 kg
No reviews yet.
AMR MW-C03/06/10, Open interface, can be matched with different tooling, suitable for heavy load transportation, and meet the needs of different scenarios.

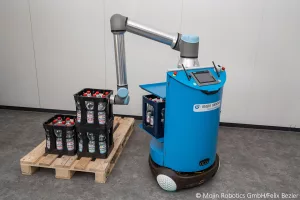

Mojin Robotics APi-L
AMR | Payload 170kg | Product mass 130kg
No reviews yet.
The APi-L - modularity and scalability in terms of load and range as guiding principles. Our base combines everything a mobile robot needs: Sophisticated robust drive and reliable proven state of the art safety technology, machine protection, energy management, variable communication means and channels, and variable degrees between automation and autonomy. Use case specific upper torso / body structurescan be fitted to the customer specific needs hence offer maximum flexibility: whether cobot, roller conveyor, paternoster conveyor, or task specific gripper systems as well as image processing including machine learning technology if required – just as you need it. The mobile platform is designed to drive in a differential drive manner with omni-directional support wheels to assure safe driving through highly dynamic environments.. Navigation based on LIDAR sensor technology ensures a robust orientation and localization in any given environment. For collision avoidance and machine protection, 2 additional 2d/3d cameras monitor the surroundings. For data protection reasons, the images are not stored only processed and erased for safety. The control concept is based on a proven standard long term available safety PLC that safely integrates any given sensor. Additional mechanical 360° buffers with proximity switches between chassis and floor ensure safe human-machine interaction. The powerful platform is designed to pull up to 500 kg and will later be amended by robustly designed trailer to support further load capacity and optimize distance and time ratios and increase throughput with an optimum number of vehicles on the shopfloor. The platform due to it’s compliance with the VDA5050 and it’s superior navigation technology is designed to be operated in multi-vendor fleets and can potentially circumnavigate obstacles on demand.
