MV1-D1024E-3D02-160-G2 Overview

What is MV1-D1024E-3D02-160-G2?

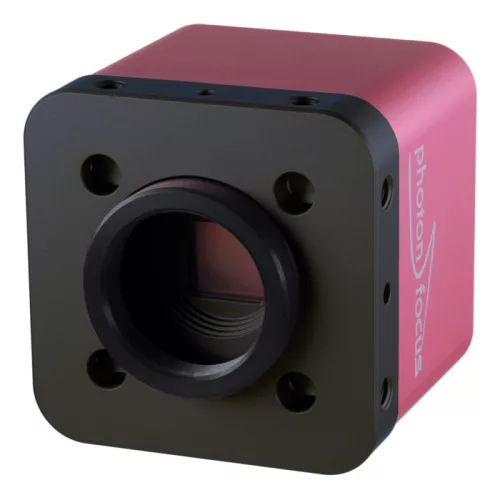

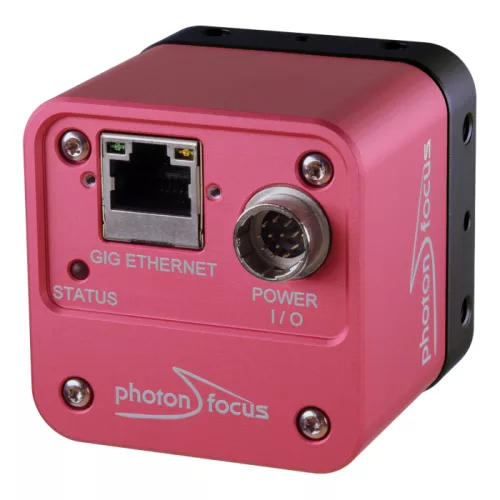

The CMOS camera MV1-D1024E-3D02-160-G2 was developed for laser triangulation of highly reflective materials. The Photonfocus CMOS sensor A1024B with a full well capacity (FWC) of 200 ke- optimized for high dynamic range applications and a high signal to noise ratio (SNR) was combined with a robust algorithm for line determination.

The laser line detection algorithm is able to compute the peak position of a laser line with sub-pixel accuracy. Thus, the height profile of an object gets computed within the camera, making additional calculations in the PC needless.

3D triangulation rate on different region of interest:

Resolution Profiles [fps]
1024 x 1024150
1024 x 256590
1024 x 1281170
1024 x 642300
1024 x 324400
1024 x 206750
512 x 1614770

Laser line with LinLog® Technology:Laser line without LinLog® Technology:


Typical triangulation setup:


Features:

  • Detection of a laser line (peak detector) with sub-pixel accuracy
  • Configurable region of interest (ROI)
  • Dynamic range up to 120dB via LinLog®
  • Image correction
  • Ultra low trigger delay and low trigger jitter
  • Extended trigger input and strobe output functionality
  • Isolated inputs (2 single ended, 2 differential) and outputs (2 single ended)
  • A/B shaft encoder interface (RS-422 (G2 models) or HTL (H2 models))
  • Free GUI available (PF 3D Suite) for an easy system set up and visualisation of 3D scans
