MV4-D2048x1088-C01-3D06-G2 Overview
What is MV4-D2048x1088-C01-3D06-G2?

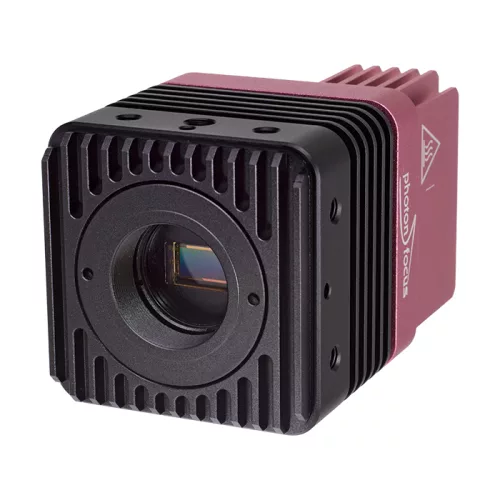

The 3D CMOS cameras MV4-D2048x1088-C01-3D06-G2 are designed for high triangulation rates. The CMOSIS CMOS image sensor CMV2000, which is optimized for high frame rates and high sensitivity, was combined with two robust algorithms to determine the triangulation line in the FPGA of the camera. The user can either employ a FIR algorithm for asymmetric line profiles or a robust COG algorithm for symmetric profiles.
The triangulation algorithm activated in the camera calculates the line position of a line with 1/16 sub-pixel accuracy. In addition to the output of the height profiles, qualifiers are also output, which can be used to suppress artifacts or characterize the surface.

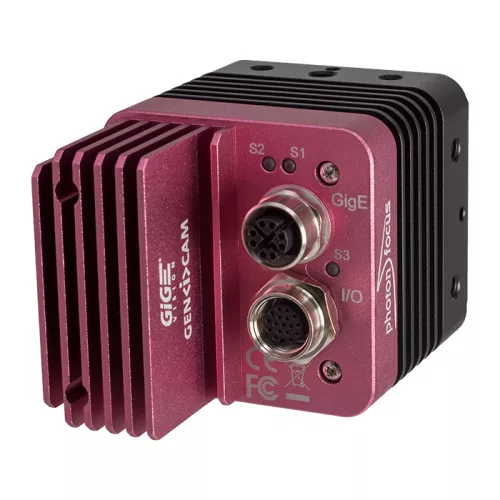

The camera is equipped with GigE interfaces and is therefore able to capture 3D profiles without a frame grabber or to set up cost-effective multi-camera systems as used for the inspection of profiles. The camera is available with GigE, 10 GigE and 10 GigE fiber interface, according to the GigE Vision and GenICam standards. In addition, the cameras have a complete encoder interface that can be configured for the TTL, RS422, HTL and dHTL interface standards, as well as various outputs. External devices with an RS485 interface can also be optionally controlled. Of course, all I/O's are galvanically decoupled from the camera electronics. The field-tested cooling concept of the MV4 housing provides for a sufficient electronics cooling.
FEATURES:
- Linear Mode / multiple slope (High Dynamic Range Mode)
- Configurable region of interest (ROI)
- Temperature monitoring of camera
- Low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- 4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
- 3x Isolated outputs (2x open drain, 1x TTL highspeed)
What applications is MV4-D2048x1088-C01-3D06-G2 product best for?
Industrial Automation
Fully automated production, self-learning machines and robots: Many Industry 4.0 applications rely on machine vision and the depth of detail in image data. High-precision embedded vision systems are used in process and quality control, as well as for measuring object and surface characteristics. Photonfocus develops and produces both sensors for integration into existing systems and ready-to-use solutions with onboard decision-making.
Automotive
Numerous applications in the automotive industry rely on fully automatic inspection systems for checking production processes, object properties and quality. High-precision embedded vision systems perform 2D and 3D image acquisition simultaneously, thereby ensuring that industrial robots and production plants are as profitable and productive as possible.
Food processing
Highly specialized embedded vision systems enable fully automated quality control, sorting and portioning in the food industry. They ensure maximum speed, efficiency and productivity. Photonfocus solutions can either be fully integrated in the production line or used as standalone systems with onboard data processing.
Material Processing
Fully automated sorting processes save the use of humans for monotonous and tedious activities. Photonfocus sensors are highly reliable when it comes to deciding which foods can be resold or which are spoiled, or separating waste into glass, plastic, metal or other materials.
Traffic & Transport
Embedded vision applications count and identify vehicles in road traffic and thus influence traffic. In rail applications, precise measuring technology with machine vision inspects tracks and train components, detecting wear and defects. At the same time, intelligent onboard solutions give train drivers and maintenance staff direct feedback regarding the condition of the route, thereby ensuring safety and keeping downtimes to a minimum.
What are the specifications of MV4-D2048x1088-C01-3D06-G2?
