ROBOWORLD Universal Robots UR10/UR10e Robosuit Pricing & Product Details

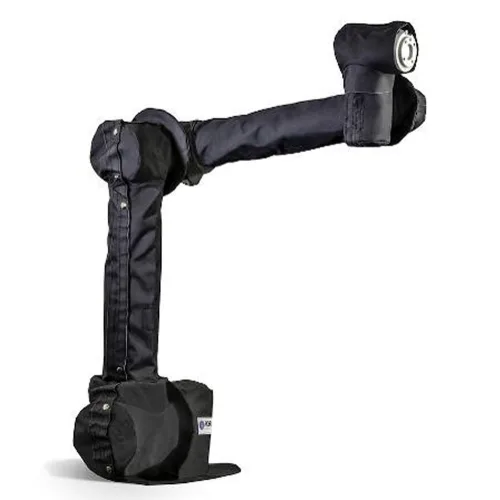

The UR10 Robosuit ® consists of nine suit components: a base skirt, base cover, lower arm, shoulder, upper arm, wrist, and three ring-retainers. Components join/interlock via either PVC rings or simple cuff-overlaps. The design is such that each adjoining piece “mates” with the next. Velcro seams are featured unless otherwise specified. The e-series version of the Robosuit ® includes two additional components: a J6 ring retainer and dedicated tool flange cover.

Each cover is custom manufactured to your specific application and need and will protect your UR robot from extremes in temperature, sharp metal turnings, cutting fluids and coolants, and particulate (grit, dust, and debris).

FEATURES:

12OZ 1000 Denier nylon UR10 Robosuit ®:

Excellent general use material for basic protection from dust, dirt, and large grit
Not suited for use in wet applications as the material is breathable
Very low level of abrasion resistance
Wide range of colour choices available
Available in e-series and CB


18OZ Fire-retardant PVC vinyl UR10 Robosuit ®:

Excellent general use material for most water-soluble coolants and cutting fluids, fine mesh grits and powders, de-ionized water, and limited protection from pressurized water sprays/ mist
Very low level of chemical and abrasion resistance
Wide range of colour choices available
Available in e-series and CB


17OZ Hypalon ® impregnated vinyl UR10 Robosuit ®:

Excellent material for use in high-abrasion environments as well as metal chips (de-burr/cutting)
Provides limited levels of protection from water spray/ mist while offering good levels of chemical resistance
Limited range of colour choices available
Available in e-series and CB


Aluminum coated Kevlar ® UR10 Robosuit ®:

Excellent material for use in high and low heat environments, light sparks and for UV protection
Nominal insulating factor of R-0.7
Maximum radiant operating temperature of 1500F. Minimum operating temperature -65F
Silver in colour
Available in e-series and CB


10-Mil laminated Teflon ® UR10 Robosuit ®:

Excellent protection in (caustic) chemical environments
FDA approved option, however, that does not equate to the Robosuit ® being FDA-approved
Maximum radiant operating temperature of 650F
Grey in colour
Available in e-series and CB


Isotherm ® weld splatter UR10 Robosuit ®:

Excellent material for use in low-inertia weld splatter and heavy spark applications
Maximum sustain (radiant) operating temperature of 500F. Short-term exposure to 700F
Grey in colour
Available in e-series and CB
