Scape Technologies SCAPE Ultra-L Pricing & Product Details

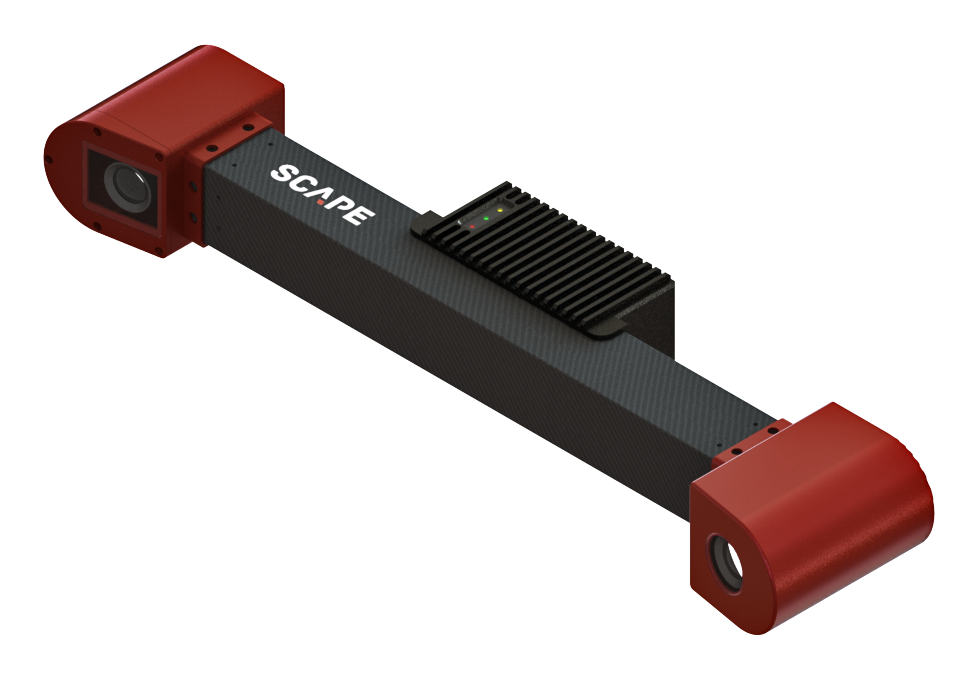

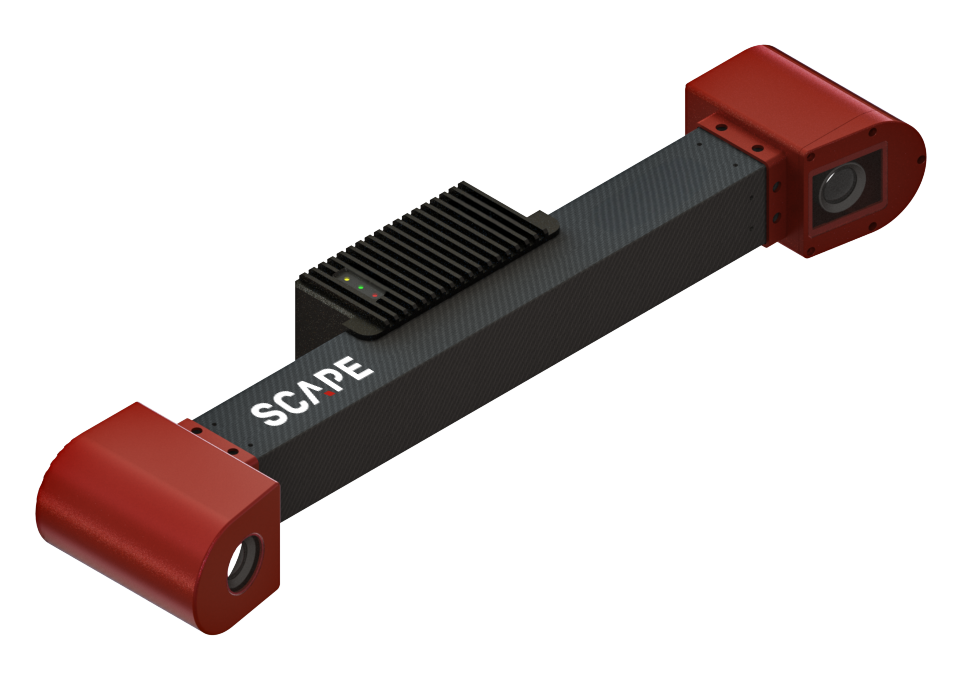

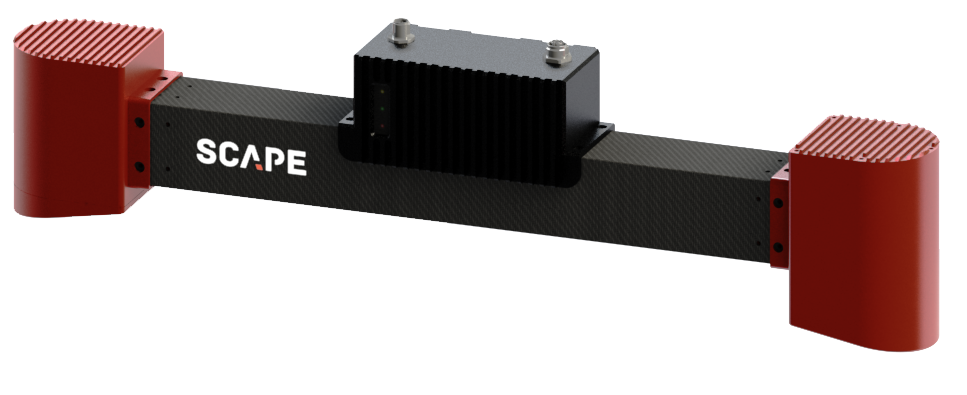

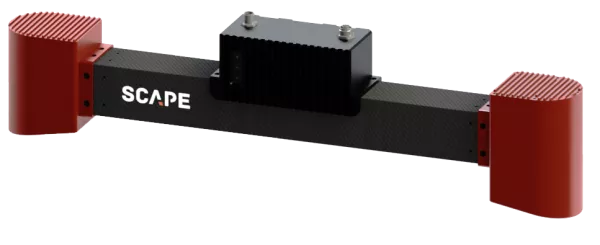

The SCAPE Ultra-L is a high-precision monocular 3D scanner, available at the lowest price on the market. It is designed for stationary mounting in industrial environments. With a working range of 1057 to 2070 mm, it provides an extensive field of view measuring 1700 x 1400 mm. This scanner generates up to 2.0 million points using blue laser light (447 nm), enabling the creation of detailed 3D point clouds with high accuracy. The built-in shutters prevent projected light from spilling outside the designated scanning area, ensuring optimal data quality and minimizing noise in the acquired point cloud.

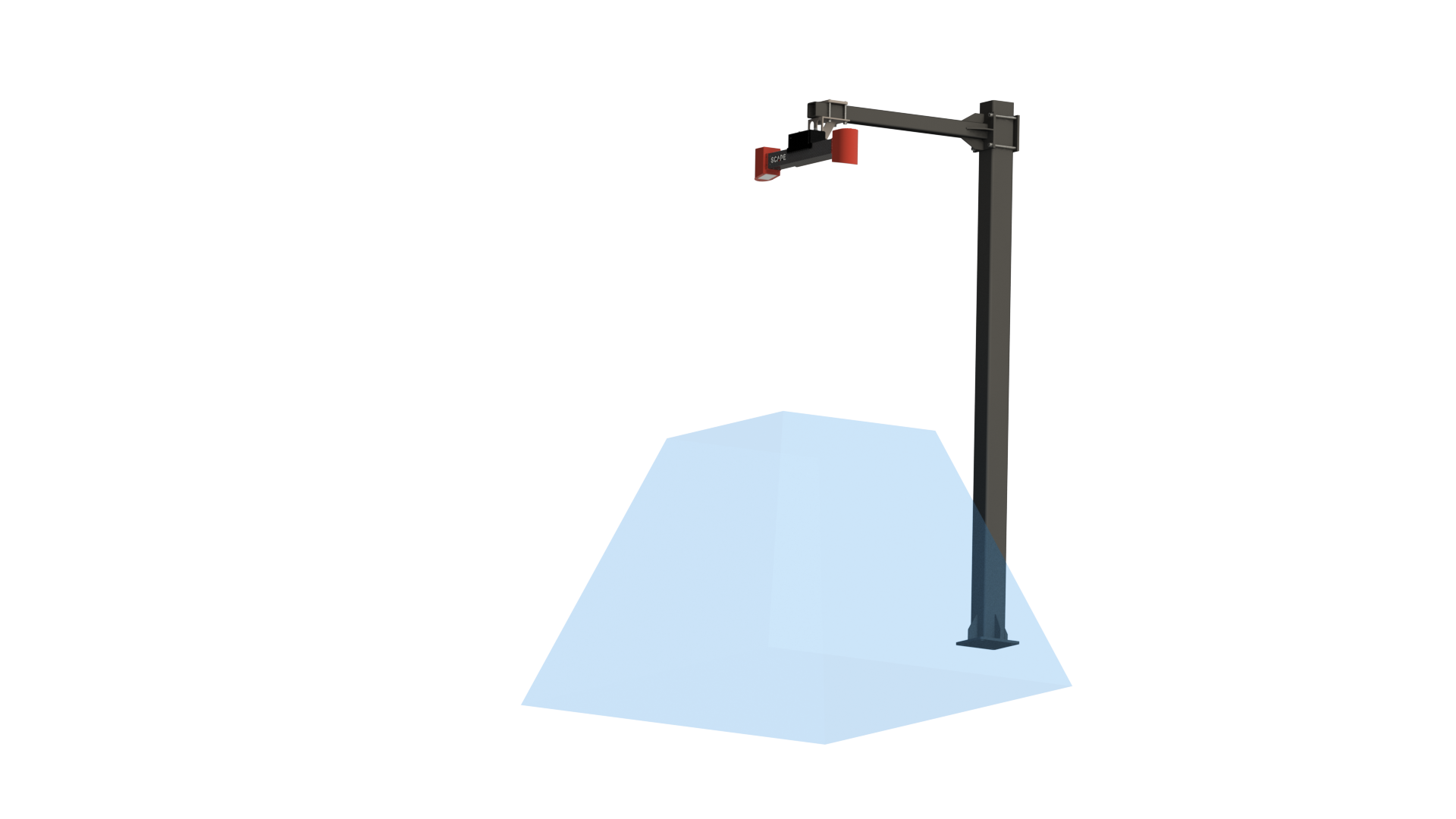

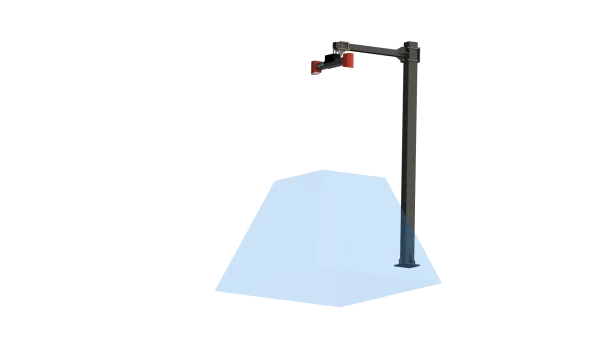

The design of the SCAPE Ultra-L significantly reduces cycle times to just one second, as it eliminates the need for a robot to handle data acquisition. This stationary design is particularly beneficial for applications where quick, repeated scans are necessary, such as in bin-picking tasks, industrial inspections, and machine guidance. The ability to capture precise depth information while maintaining a stable setup contributes to its efficiency in demanding operational conditions.

IP65-rated for protection against dust and low-pressure water jets, the SCAPE Ultra-L is built to withstand challenging environments typically found in manufacturing and industrial settings. Its capabilities make it suitable for various applications, including object detection, high-precision industrial inspections, and gathering depth information for automated systems. Plus, it comes with SCAPE 3D Scanner Viewer Software, which further enhances its usability by allowing for multiple configurations tailored to different surface types, ensuring high-quality results across diverse scanning scenarios.
