STÄUBLI MRS90 Specifications

Write a review!

FIND SUPPLIER

Add to comparison

The Stäubli MRS90 (formerly known as HelMo) is a highly advanced mobile robot system designed for industrial automation. Developed with expertise from Stäubli WFT, this system operates autonomously, navigating various working environments, collecting materials, and executing tasks independently. It represents a significant step forward in man-robot collaboration, with the capability for robots to work alongside humans or autonomously handle repetitive tasks.

One of its standout features is its flexibility in factory motion, offering high-performance dynamics for efficient and precise movement. The MRS90 is equipped with a range of robot arms (TX2-90, TX2-90L, TX2-90XL) with load capacities ranging from 7 kg to 14 kg, providing versatility in handling different tasks. Its autonomous driving capabilities, intuitive mapping, and safety features ensure safe and efficient operation in dynamic industrial settings.

The MRS90's technical specifications reveal its robust capabilities. It includes a rotation unit with a maximum rotation angle of 350° and tool change stations with the MPS032 system for efficient task switching. The drive unit has a maximum speed of 0.6 m/s and precise positioning accuracy. With IP67 wrist protection and IP65 robot arm protection, it can withstand challenging conditions. Moreover, the system is equipped with multiple laser scanners for navigation and features an array of interfaces, including WLAN, LAN, and Fieldbus.


Application	Agriculture Cleaning and maintenance Delivery Material handling Picking and Packing Security and surveillance Transportation
Industry	Agriculture Healthcare Logistics Manufacturing Mining Retail Warehousing
Industry	Education Automotive Food and Beverage Packaging Healthcare Electronics Aerospace and Defense Energy and Utilities
Payload	14 kg
Product mass	730 kg
Navigation System	Inertial Laser-based Magnetic guidance Simultaneous Localization and Mapping (SLAM) Vision-based
Speed	0.6 m/s
Type of Technology	ACR AGV AMR IMR
Extra info	Maximum rotation angle: 350°, Safe positions: 0° / ± 90° / 180°, Tool change station: 4 tools per station, Tool changing system: MPS032. DRIVE UNIT: Position accuracy of drive unit: ± 10 mm, 1°, Dimensions (without robot arm): 890 x 1120 x 1000 mm (W x H x D), Number of laser scanners: 3 (360° monitoring area), Height of scan plane (personal safety): 150 mm, Drive type: Differential drive. TOTAL SYSTEM: Navigation: based on laser scanner data, Protection class wrist / robot arm / total system: IP67 / IP65 / IP20, Average surface pressure on floor max: 10 N/mm², Power supply: 1 x 230 V / 16 A, Interfaces: WLAN, LAN, Fieldbus (1), Multi coupling: compressed air, power supply, 2x Cat5e, 26 x 1 mm² electrical pins, Battery capacity: 5,8 - 8,7 kWh, Compressed air tank: 0,75 l (2) / 7 bar, Optical and acoustical effects: 4 LED units and memory space for up to 16 audio files.

MRS90 Alternatives

See all 230 Mobile Robots

STÄUBLI PF100 omni

Payload 7000kg | Product mass 1000kg

No reviews yet.

The STÄUBLI PF100 omni is a versatile autonomous mobile robot designed for various industrial applications. Its standout feature is its omni-directional wheel system, allowing it to move in any direction without turning. This unique mobility enables precise and efficient material handling in tight spaces and complex layouts, making it suitable for industries where space optimization is crucial.With a payload capacity of up to 100 kg and a top speed of 2 m/s, the PF100 omni is a robust and capable solution for tasks such as material transport, palletizing, and assembly. It operates seamlessly in diverse environments, thanks to its compatibility with industry-standard software systems and protocols, making integration into existing automation processes straightforward. Additionally, it offers a high degree of safety with advanced collision avoidance technology and user-friendly programming interfaces.One of its lesser-known but significant specifications is its adaptability to extreme temperatures. The PF100 omni can operate in environments with temperatures ranging from -20°C to +45°C, making it suitable for both cold storage and high-temperature manufacturing settings. This versatility, combined with its omni-directional mobility and high payload capacity, positions the PF100 omni as a valuable asset in various industrial automation scenarios, optimizing productivity and adaptability in challenging conditions.

HAN’S ROBOTS STAR mobile manipulator

No reviews yet.

The STAR mobile manipulator by Han's Robot is a highly intelligent mobile robot designed to perform a variety of functions such as grasping, handling, assembly, and material detection. It seamlessly combines a self-developed mechanical arm, mobile robot, vision system, gripper, and more, offering versatility across industries including electronics, metal products, automotive, healthcare, and even family services. What sets STAR apart is its rapid deployment capability based on SLAM navigation technology, allowing it to autonomously generate an environment map without the need for scene transformation. This feature, combined with automatic charging, ensures 24/7 operation and high-frequency task response.One standout feature of the STAR is its automatic lifting system, which optimizes space utilization by automatically lifting internal materials, enabling the storage of more items in limited space while reducing the need for material transfers. The robot's stable performance, driven by independently developed core components, demonstrates the perfect integration of its body and arm. Its intelligent scheduling, powered by a self-developed architecture and planning algorithm, facilitates large-scale robot scheduling, ensuring efficient system operation. With a range of models and customizable tray lifting units, the STAR mobile manipulator offers a cost-effective and scalable solution for industries embracing the future of intelligent manufacturing and automation.

Wellwit Robotics Mobile Robot Base MRB150

AMR | Payload 300kg | Product mass 66kg

No reviews yet.

The Wellwit Robotics Mobile Robot Base MRB150 is a highly advanced and versatile mobile robot base that has been designed to meet the needs of a wide range of applications. One of the key features of this robot base is the Lidar SLAM navigation system that has been adopted, which allows for highly accurate and reliable navigation in complex environments. This system uses advanced laser sensors to create a 3D map of the surrounding environment, allowing the robot to navigate with precision and avoid obstacles in real-time.In addition to the Lidar SLAM navigation system, the Wellwit Robotics Mobile Robot Base MRB150 also comes with a range of optional peripherals that can be added to enhance its functionality. These peripherals include a depth camera, a warning searchlight, and an obstacle avoidance radar, among others. Each of these peripherals is designed to enhance the robot's capabilities in different ways, allowing it to operate more effectively in specific environments or situations.For example, the depth camera can be used to provide additional information about the environment, such as the distance and depth of obstacles or the shape and texture of surfaces. This information can be used to improve the accuracy and reliability of the robot's navigation and obstacle avoidance systems, allowing it to operate more safely and effectively in complex environments.Similarly, the warning searchlight can be used to alert other people or machines in the area to the presence of the robot, helping to avoid collisions and other safety hazards. The obstacle avoidance radar, on the other hand, can be used to detect and avoid obstacles that may be too small or too difficult to detect using other sensors.Overall, the Wellwit Robotics Mobile Robot Base MRB150 is a highly advanced and versatile mobile robot base that is designed to meet the needs of a wide range of applications. With its Lidar SLAM navigation system and range of optional peripherals, it offers highly accurate and reliable navigation and obstacle avoidance capabilities, making it an ideal choice for use in complex environments.

Hello Robot Stretch 2

Payload 2kg | Product mass 23kg

No reviews yet.

The Hello Robot Stretch 2 is a highly advanced mobile robot designed for industrial applications. Its versatile mobile base allows it to navigate autonomously around indoor environments, such as warehouses, factories, and research labs. The base is equipped with an array of sensors and cameras that help the robot perceive its surroundings and avoid obstacles. This means that the robot can be deployed in a variety of indoor environments and adapt to changing conditions without the need for human intervention.The base of the Stretch 2 robot is also designed to be easily programmable and customizable, so users can adapt it to their specific needs. The robot is built on an open-source platform, which means that users can write custom software and integrate it with existing systems. This makes the robot highly flexible and capable of performing a wide range of tasks.The arm of the Stretch 2 robot is another impressive feature. It is equipped with a variety of sensors and grippers that allow it to grasp and manipulate objects with precision and reliability. The arm can lift up to 3 kg of weight and has a reach of up to 1.5 meters. This makes it suitable for a range of tasks, including material handling, inspection, and assembly.The Stretch 2 robot is also designed to be easy to use, even for those with little or no programming experience. The robot's software interface is intuitive and user-friendly, and the robot can be programmed using a simple drag-and-drop interface. This means that users can quickly and easily teach the robot new tasks without the need for extensive training.Overall, the Hello Robot Stretch 2 is a highly advanced mobile robot that is ideal for industrial applications. Its versatile mobile base, advanced arm, and ease of use make it an excellent investment for businesses seeking to improve their operations and increase productivity.

Movu Robotics ifollow

No reviews yet.

Movu Robotics' ifollow is an autonomous mobile robot system designed for industrial automation. It excels in navigating warehouses with static and moving obstacles, carrying payloads of up to 1.2 tons without the need for new infrastructure. Notably, ifollow can operate in temperatures as low as -25°C, making it suitable for cold storage environments, with an impressive 8-10 hours of operation on a 2-hour charge.This adaptable system does not require floor modifications, offering versatile deployment in warehouses of all sizes and layouts. It prioritizes safety with advanced sensory technology, automatically avoiding obstacles and people. Additionally, ifollow is multifunctional, capable of handling various load types and scalable to meet changing demands. It integrates seamlessly with Warehouse Management Systems, supporting up to 200 robots and responding rapidly to fluctuations in workload.In various industries like manufacturing, retail, and groceries, ifollow optimizes operations, enhances productivity, and improves safety. Its compact design, ranging payload capacities, and compatibility with existing software systems make it a valuable asset for businesses seeking efficient and adaptable automation solutions for their warehouses.

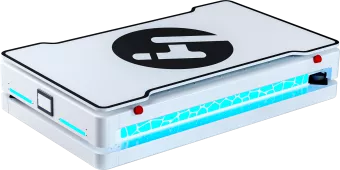

HAN’S ROBOTS HR
