Teledyne Z-Trak Pricing & Product Details

High-Performance 3D Profiler Sensor for In-Line Measurement and Inspection Applications

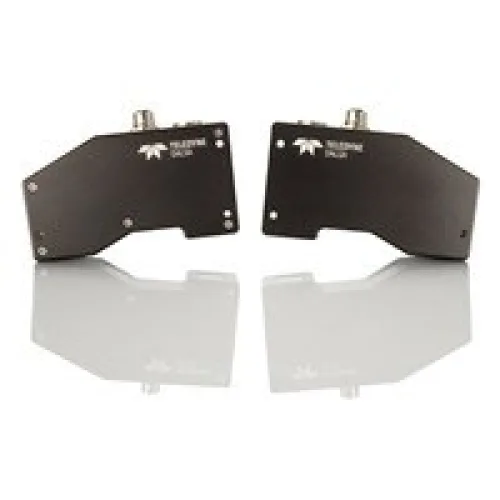

Z-Trak is a series of 3D profile sensors delivering high-resolution, real-time height measurements using laser triangulation. These lightweight IP67 rated profile sensors are ideal for in-line measurement, inspection, identification and guidance applications in automotive, electronics, semiconductor and factory automation.

Z-Trak series delivers reliable and repeatable results in varying operating conditions. Z-Trak models handle object widths from 8.5 mm to 1520 mm and height range of 10 mm to 1000 mm. All Z-Trak models are factory calibrated and come with a choice of laser options to suit the surface reflectance.

Z-Trak series features real-time laser line optimization for uniform measurement results, multi-sensor synchronization using generic Gigabit network routers and Power-Over-Ethernet (POE) to simplify setup and configuration. Z-Trak series comes bundled with Teledyne DALSA’s field-proven software packages – Sapera LT, Sapera Processing, and Sherlock 8 3D – at no extra cost. In addition, Z-Trak sensors can operate with 3rd party software packages using either GenICam® or proprietary interfaces.

Powerful. Versatile. Easy to Integrate.
All Z-Trak models are factory calibrated and include powerful features such as FIR-peak detector, optimized optical design, adaptive laser control to optimize integration time, field proven software libraries, and many more.

The overall result? A high-accuracy, high-resolution 3D laser profiler at a low total-cost of ownership.

Open Platform Software Development Tools
GigE Vision compliant, the Z-Trak series supports both Teledyne DALSA vision software as well as off-the-shelf 3rd party 3D image processing packages.

Choose from a wide variety of versatile software to best suit your application. Z-Trak is supported by:

Sapera Processing 3D
Z-Expert
Sherlock 8 3D
MVTec Halcon
GenICam
