YAMAHA B type - Timing belt drive model Pricing & Product Details

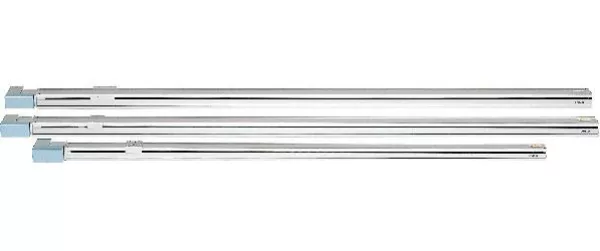

Yamaha's B type-Timing belt drive model is an advanced linear motor system that offers exceptional performance in terms of speed, stroke length, and payload capacity. One of the key features of this model is its maximum stroke length of 3050mm, which makes it ideal for applications that require long-distance transport between job processes. With a stroke length that ranges from 150mm to 3050mm, this model can cover a wide range of applications.

Another important feature of Yamaha's B type-Timing belt drive model is its maximum speed of 1875mm, which makes it one of the fastest linear motor systems available in the market. This high speed enables the system to perform tasks quickly and efficiently, which can increase productivity in manufacturing processes. Additionally, this model has a maximum payload capacity of 10 to 30kg, which means it can handle heavy loads with ease.

The B type-Timing belt drive model also comes with a 4-row circular arc groove type 2-point contact guide, which is resistant to large moment loads. This guide is designed to provide excellent reliability and durability, even in harsh environments. The 2-point contact design of the guide ensures that there is less differential slip, which means that the system can maintain a smooth and accurate movement even under heavy loads.

The 4-row circular arc groove type 2-point contact guide used in this model is also highly resistant to wear, which ensures that it can last for a long time without requiring maintenance. This guide is designed to withstand large moment loads, which makes it suitable for a wide range of applications. In addition, the guide's structure ensures that it provides a satisfactory rolling movement, even if the installation surface precision is poor.

In conclusion, Yamaha's B type-Timing belt drive model is an advanced linear motor system that offers exceptional performance, reliability, and durability. With its long stroke length, high speed, and high payload capacity, this model is suitable for a wide range of applications, including those that require long-distance transport between job processes. Additionally, its 4-row circular arc groove type 2-point contact guide provides excellent resistance to wear and large moment loads, ensuring that the system can operate smoothly and accurately for a long time.

●F/N/B type

For the F type, N type, and B type, two guide frames are laid out on the high rigidity aluminum extruded material frame. Two bearing units per rail, four bearing units in total, support a large load firmly. As a large moment load is mainly converted into vertical force, the moment applied to one bearing unit becomes small to ensure excellent durability.

●F8 series

The F8 series uses a newly developed module guide to greatly reduce the crosssectional area (70 % when compared to F10). The rail is laid out in the full width of the frame to ensure the high rigidity even with compact design. Of course, this series also uses the 4-row circular arc groove type 2-point contact guide.

Note 1. Note 1. Except for T4L/T4LH and T5L/T5LH
Note 2. Except for F8 series/F10/B10.

Resolver with excellent environment resistance is used for the position detector.

A resolver is used for the position detector. The resolver has a simple and rigid structure without using electronic components and optical elements. Detection problems due to electronic component breakdown, dew condensation on or oil sticking to the disk that may occur in optical encoders do not occur in the resolver. The resolver provides excellent durability. Additionally, as the absolute specifications and incremental specifications use the same mechanical specifications and common controller, desired specifications can be selected only by setting parameters. Furthermore, even when the absolute battery is consumed completely, the robot can still operate as the incremental specifications. So, even if a trouble occurs, the line stop is not needed to ensure the safe production line. Furthermore, the backup circuit has been completely renovated and now has a backup period of one year in the non-energizing state.

Long service life greatly reduces the maintenance cost.

As the acceleration is determined by the weight parameter, the service life can be assured when the weight and position of center of gravity are known.

YAMAHA's robot uses high rigidity ball screw or guide, it provides excellent durability. This greatly contributes to reduction of the customer's maintenance cost.

Controllers suitable for applications are prepared.

In addition to the robot program operation and pulse train control, a positioner that is operated by specifying a point number was added to the product lineup. Additionally, multi specifications that control multiple robots using one controller are also supported. You can select an optimal controller suitable for your application.

*Clicking an image will jump to relevant controller page.

Programs	I/O point trace (positioner)	Pulse-train control

Various custom specifications are supported.

YAMAHA supports custom orders flexibility to meet the customers' various needs.
