• Precise double rail profile guide
    The linear guide with ball bearing circulation and scrapers provides high precision and rigidity
  • Dampened end position
    By using PowerStop shock absorbers, you can gently move up to the end positions, increasing the process reliability and durability of your application
  • Failure-free continuous operation
    Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Choose your model:
Protection (IP) 40
Max. Stroke 50-200 mm
Min. Force -220 N
Max. Force 265-750 N
Extra info SERIES FEATURES: 10 million maintenance-free cycles (max.) / IP40 / Magnetic field sensor /

Pneumatic linear unit LSX series Downloads

MER GD PG LSX25 50 SEN APD V1
You need to register to download this file.
MER GD PG LSX40 100 SEN APD V1
You need to register to download this file.

Pneumatic linear unit LSX series Alternatives

See all 115 Robot Accessories

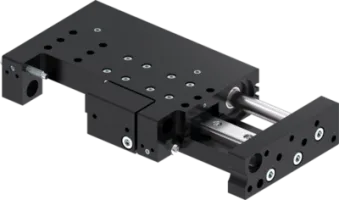

Zimmer Pneumatic linear unit LSF Series
