AGI Automation Components AGTC TOOL CHANGER Specifications

Gifu 30# For Vertical Machining Centers

Product mass 3kg

No reviews yet.

High Speed Disc Type Tool Magazine with Nonimpact Arm and Simultaneous Linkage with Spindle on Tool Unloading Mechanism.

Gifu Compact Rotary Disc Tool Magazine

Product mass 8kg

No reviews yet.

Tool magazine drive source: Electric, Servo

Gifu Chain Type Tool Changer

Product mass 8kg

No reviews yet.

Tool Magazine Drive Source: Electric, Servo

Gifu 40# For Vertical Machining Centers

Product mass 8kg

No reviews yet.

Light-Weight and Brick Modularized Structure Disc Type Tool Magazine with Simultaneously Tool Changing Mechanism

AGI Automation Components AGC-40 TOOL CHANGER

Payload 90.72kg | Product mass 1.88kg

No reviews yet.

Fail Safe - The locking mechanism remains locked even with a loss of pnumatic pressure.Handles High Moments as Extremely High Repeatability - The index pin gives Tool Chang Adapters the ability to handle radical moments, with high repeatablity +/- 0.0005 in.Fast Coupling - The robot adapter can couple with the tool mounting adapter in less than 1/2 second.Low Deflection - The unique latching mechanism pulls the tool adapter into the robot adapter body - preloading the toll mounting adapter for excellent rigidity.Coupling Window - The robat adapter pulls up the tool adapter, allowing the user to couple while up to 0.4" off the face of the tool mounting plate.

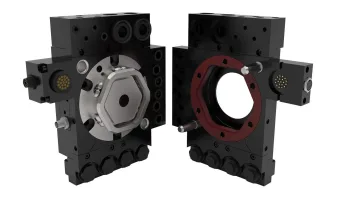

DESTACO MODULAR ROBOT TOOL CHANGERS – RQC & RTP SERIES

Payload 90-1089 kg

No reviews yet.

DESTACO’s RQC & RTP Series of modular robot tool changers lead the industry with a full product line covering up to 1200lbs [545Kg]. A wide variety of utilities are available to quick disconnect, I/O, air, water, weld power, servo power, vacuum lines. These models feature a high level of flexibility accommodating up to 4 optional modules to be picked up among a wide choice, 6 patented roller mechanisms that provide a low stress and highly rigid locking capability, and accommodations for the two halves to couple and to be safe in case of air failure.

ANUBIS 3D MTC-612 MANUAL TOOL CHANGERS (6 X 12MM)

Payload 80kg | Product mass 1.45kg

No reviews yet.

The MTC-612 is the largest manual tool changer in our line up and consists of 6 through-ports sized for G1/2 fittings which can be used for either vacuum or pressure. Customized robot flange plates ranging from 20-55mm and 80-100mm diameter patterns makes the MTC-612 a universal solution for your quick change needs.

Grip MGW Connector

Payload 10-120 kg | Product mass 0-10.5 kg

No reviews yet.

The MGW Connector is our universal quick changer for every application and we have made it even better! The new system is of higher quality and offers more safety and accuracy. The innovations are a response to the current requirements of our customers. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) of the robot and ensures that the tools are correctly aligned with the robot arm. MGW Connector advantages:Interface according to DIN EN ISO 9409-1Durable - 5,000/10,000 cycles*Withstands high loadsNo tool required due to integrated operating leverIntuitive operationCan be released and closed with one handProtection against unintentional opening for dynamic applicationsSpring-loaded locking pin secures hand lever against self-releasingLightweight made of high-strength aluminum, anodizedOptional mounting surface for energy feed-through*Cycles dependent upon the MGW material. By turning the semi cylindrical bolt by 180°, the upper assembly and lower assembly are secured together. When locking, the lower assembly is pulled up by the lever action. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) of the robot and ensures that the tools are correctly aligned with the robot arm.

DESTACO MANUAL TOOL CHANGERS - TC1 SERIES

Payload 10kg | Product mass 0.33kg

No reviews yet.

DESTACO’s TC1 Series tool changers are ultralight, compact, and ideal for cobot work cells and applications requiring custom coupling solutions. Designed for safety, ease of use, durability, and excellent repeatability, this tool changer features a very low profile and a coupling solution with pneumatic and electrical pass-thru capability. The tool changer features IS0 9409 mounting, plus a highly adaptive blank version that is easily modified by machine builders for application specific needs.

Grip SWA Connector

Payload 8-62 kg | Product mass 0-5 kg

No reviews yet.

The SWA Connector has a very low profile for applications with very little space. The transverse screw clamps the upper and lower assembly of the SWA with two wedge-shaped locking flanges, creating a form-fit without any play. SWA Connector advantages:Extremely low profileEasy to useLow weight, made of high-strength aluminum, anodizedAvailable in steel, optionally nitratedHigh repeatability < 0.02 mmDurable - 10,000 cyclesInterface according to DIN EN ISO 9409-1

PRAGATI Automatic tool changer ATC Series

Product mass 8-20 kg

No reviews yet.

Features: Rigid mounting very close to main mass of ATC prevents vibration while exchanging heavy tools.Magazine rotation either by cam index or by servo drive.Encoder for synchronisation of arm movements with tool clamp / unclamp in machine spindle.Tool Gripper plates of gripper arm are designed as separate parts for easy conversion of ATC from one tool standard to another.Choice of Aluminium or high strength plastic tool pockets.Option of mechanical tool load unload feature in tool magazine.Magazine capacities of 20, 24, 30 and 40 tools.

Type	Collision/Torque Sensors Compensation Unit Compilance Devices Connectors Dispensers Force Torque Sensors Sanders Screwdrivers Tool Changers Vacuum Generators Welding Torches Wrist Cameras
Payload	90.72 kg
Product mass	1.88 kg
