Automation Technology C5 Series Specifications

No reviews yet.
Write a review!

Ranked Nr. 65 of 93 3D Vision Systems

FIND SUPPLIER

See all 93 3D Vision Systems

the 3D-Sensors of the new C5 Series come with resolutions of up to 12-Megapixel and collect the 3D data with measuring speeds of up to 200,000 Profiles per second (depending on the model). The developers have devoted special attention to industrial suitability and have equipped the 3D sensors with a ruggedized housing (IP67), M12 connectors, air barriers and many more features.

Until now, 3D-recordings in a two-digit megapixel resolution were reserved only for the camera C4-4090-GigE. The C5 Series combines the high-resolution characteristics of the C4 camera with the compact and ruggedized design of the C2 sensor family, merging thanks to state-of-the-art technology the best of both worlds. The result is ultra-high resolution high-speed 3D-sensors that enable a reliable industrial use even in harsh environments.


Details:

  • Non-Contact 3D Measurement in Accordance with the Laser-Sheet of Light (Triangulation) Method
  • Measuring Speeds of up to 200 kHz
  • Image Processing Integrated in the Camera
  • Robust Housing with IP67
  • Configurable Camera Modes: Image Mode, Profile Mode
  • Selection of 3D Camera Algorithms: Threshold-Selection Method, Maximum Method, COG Method, FIR-PEAK Method
  • All algorithms achieve the maximum profile rate, regardless of the algorithm selected and its parameters
  • Easy Configuration via Camera Register
  • Configurable Selection of the Data Output, e.g. Height Data or Height Data + Intensity Data
  • Genuine Global Snapshot Shutter for Accurate Profiles without Movement Distortion (blurring)
  • Programmable Number of Profiles that can be merged to form a Height Image
  • Up to 8 Freely Selectable AOIs (Sensor Read-Out Windows) in Image and Profile Mode
  • Flexible Trigger Functions for Profile and Image Triggering
  • RS422 Interface Converter with Programmable Counter for Profile Trigger Generation and Integral
  • Identification of Direction of Movement
  • Data Transmission via Gigabit Ethernet Interface
  • Configurable Opto-Coupled I/Os for Trigger Function and Synchronisation
  • Storage of a User-Defined Start-Up Camera Configuration in a Configuration EEprom
  • Integrated Control for External Illumination (Laser)
  • Enhanced 3D Imaging with High Dynamic Range 3D (HDR-3D)
Protection (IP) 67

C5 Series Downloads

C5 Series web
You need to register to download this file.

C5 Series Alternatives

See all 159 3D Vision Systems
iRAYPLE 3D Cameras
Color | Monochrome
No reviews yet.
RAYPLE 3D Cameras are advanced imaging devices that utilize line structured light and speckle laser technology to capture high-precision and high-quality 3D data. These cameras offer a range of standout features and capabilities, making them a reliable option for industrial automation and various 3D applications.One of the notable features of iRAYPLE 3D Cameras is their ability to capture data with high precision. Through the use of line structured light and speckle laser technology, these cameras can generate detailed and accurate 3D point cloud data or volume data. This precision is crucial for tasks such as object recognition, dimensional measurement, and quality inspection, where precise and reliable data is essential.iRAYPLE 3D Cameras also excel in capturing data at high frame rates. The cameras are designed to quickly capture and process multiple frames per second, enabling real-time data acquisition. This high frame rate capability is particularly advantageous in dynamic applications where capturing moving objects or rapidly changing environments is required.Another standout feature of iRAYPLE 3D Cameras is their ability to handle high dynamic range scenes. These cameras are equipped with advanced sensors and algorithms that can effectively capture data in scenes with varying levels of brightness and contrast. This capability ensures accurate and reliable 3D data acquisition even in challenging lighting conditions, making the cameras suitable for a wide range of industrial environments.Ease of use is a key aspect of iRAYPLE 3D Cameras. They are designed to be user-friendly and straightforward, with intuitive interfaces and easy-to-use features. The cameras provide seamless integration with software systems, allowing for convenient setup and streamlined workflows. This user-friendliness ensures efficient deployment and reduces the learning curve, making iRAYPLE 3D Cameras accessible to a broader range of users.In addition to their standout features, iRAYPLE 3D Cameras are also built to meet the demands of industrial automation. They are designed to withstand harsh environments and can operate reliably in extreme temperatures. This durability and tolerance for challenging conditions make them suitable for integration into industrial production lines, robotic systems, and quality control processes.
Automation Technology C6 Series
No reviews yet.
World’s fastest 3D sensor in the combination of speed and resolutionAdvanced 3D technology (HDR-3D)Intelligent line detection algorithms with advanced filtering and validation for highly accurate scansWide measuring rangeAvailable as 3D camera, 3D sensor and MCS moduleIndustrial protection class IP67Service-friendly design Optimization C6 Series Compared to C5 Series:C6-3070 with on-sensor processing for world’s fastest 3D profiling based on AT’s own sensor technologyC6-4090 is 1.8 times faster compared to the C5-4090 with the same resolutionUnique new MultiPart feature: parallel output of up to nine different features (e.g. range, reflectance, scatter) at maximum profile speed with optimized pixel formatsUnique new feature MultiPeak: output of up to four different peaks for even more robust 3D data and for scanning transparent objectsSupport of the latest 3D standard through GenICam 3.0
Visio Nerf CIRRUS 150
Working distance 300mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Visio Nerf CIRRUS 300
Working distance 450mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Visio Nerf CIRRUS 1600
Working distance 2500mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Visio Nerf CIRRUS 800
Working distance 1250mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Visio Nerf CIRRUS 1200
Working distance 1900mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Visio Nerf CIRRUS 600
Working distance 950mm
No reviews yet.
cirrus3D is specifically designed to integrate the core of your installation without specific development.Cirrus3D allows the implementation of applications with vision / robotics of incomparable efficiency and very high quality. Dedicated to industrial use, these sensors are not very sensitive to the environment, dust, dirt or the variations of brightness and this in order to guarantee an unmatched reliability and robustness of your installations (IP 65).
Lucid Vision Helios2 Time of Flight 3D Camera
Monochrome
No reviews yet.
The Helios2 Time of Flight (ToF) camera is an IP67 “factory tough” 3D camera featuring Sony’s DepthSense sensor, engineered for high performance operation in industrial environments. Built for demanding 24/7 environments and a variety of industrial 3D applications such as robotics, 3D inspection, and logistics, including advanced material handling, pick and place, sorting, palletization / de-palletization, volume estimation, and more. The Helios2 delivers sub-millimeter precision and improved accuracy compared to the previous Helios. The calibration between the VCSELs and sensor timing is enhanced resulting in more 3D detail, along with improved edge detection to reduce flying pixels and overall noise.

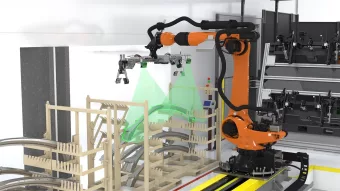

Liberty Reach V-Guide
