BANNER Measuring light curtain EZ-ARRAY SERIES Specifications

No reviews yet.
Write a review!

Ranked Nr. 205 of 122 Safety Scanners

FIND SUPPLIER

See all 122 Safety Scanners

Measuring Light Curtain

- IO-Link, Modbus-RTU, and RS-485 models are available

- Applications include edge and center-guiding, loop tension control, hole sizing, parts counting and on-the-fly product sizing and profiling.

- Closely spaced infrared beams detect objects as small as 5 mm wide edge resolution is 2.5 mm.

- Controller functionality is built into the receiver, so basic setup requires no controller, software, or PC.

- Easy-to-use software is included for advanced configuration, using a PC.

- Configuration options include 14 measurement modes, three scanning methods, two analog and two discrete outputs and a serial output.

- Range is 4 meters.

- Array heights range from 150 to 2400 mm.

Optical Safety Device
  • Safety Light Curtain
  • Safety Scanner
Operating range 0.15-2.4 m
Other characteristics infrared
Protection (IP) 65
Type of beam multibeam
BANNER

Measuring light curtain EZ-ARRAY SERIES Alternatives

See all 216 Safety Scanners
KEYENCE Safety Light Curtain GL-R series
Scanning range 10m

4.7/5 (1)

The KEYENCE Safety Light Curtain GL-R series offers durability and simplicity. Its high power, recessed lens, and aluminum frame ensure reliable protection. Easy integration with indicators, built-in alignment, and diverse wiring options streamline setup. Notably, it excels in extreme temperatures and supports tailored software integration, making it a versatile choice for industrial safety.
Autonics Type 4 safety light curtain SFLA Series

5/5 (1)

The SFLA series safety light curtains are installed in potentially dangerous or hazardous areas to safeguard personnel from injury. The light curtains feature proven technology from Autonics area sensors and mapping sensors. The light curtains are built to meet internationally safety standards and regulations. Various detection models (finger/hand/hand-body detection) and safety functions are available for diverse applications. The dedicated software atLightCurtain allows real-time status monitoring user settings such as automatic muting/blanking area functions.
BANNER Measuring light curtain MINI-ARRAY SERIES
No reviews yet.
Measuring Light Curtain - Features low-profile, programmable measuring light screen systems for inspections and profiling - Includes a controller, emitter/receiver pair and interconnecting cables - Offers programmable controller with a selection of measurement modes, scan modes and output configurations - Available in heights from 133 to 1819 mm, depending upon model - Offers emitters/receivers for detecting objects as small as 12.7 mm - Includes advanced configuration software - Available in models for central monitoring and control over a DeviceNet control network - Features optional heated enclosures for outdoor applications
BANNER Measuring light curtain HIGH-RESOLUTION MINI-ARRAY SERIES
No reviews yet.
High-Resolution Measuring Light Curtain - Excels at high-speed, precise monitoring and inspection applications, including on-the-fly sizing, profiling, precision edge and center guiding, and hole detection - Includes controller, emitter/receiver pair and interconnecting cables - Offers programmable controller with a selection of measurement modes, scan modes and output configurations - Available in array heights of 163 to 1951 mm - Provides 120 sensing beams per foot, for reliable detection of objects as small as 2.5 mm - Features a 2 m range with easy, forgiving alignment - Offers programmable blanking, hysteresis and serial communications - Includes advanced configuration software
OMRON F3W-MA
No reviews yet.
• A muting system can be configured easily in combination with the safety light curtain. • Muting functions can be stably performed even when workpieces with holes pass.
PILZ Safety light curtain PSENopt
No reviews yet.
The safety light curtain PSENopt, also referred to as a light barrier, can be used in all areas of industry where a barrier-free safety concept is to be implemented. Thanks to their compact dimensions and ease of installation, the safety light curtains enable an ergonomic work environment. This is the case, for example, when operator intervention is required as part of each cycle, such as insertion work, or the infeed and outfeed of material. You can choose between Type 2 and Type 4 safety light curtains in accordance with EN IEC 61496-1/-2, versions for finger, hand and body protection, in lengths from 15 cm to 180 cm. In addition to the Basic light curtains, all Advanced light curtains offer expanded functionalities such as muting, blanking and cascading. Slimline safety light curtains PSENopt slim can be used for space-critical applications. Accessories range from deviating mirrors, protective columns for shock, collision and vibration protection, protective IP6K9K housing through to test rods. You’ll find the required cable, connector and adapter accessories under Connection technology. High productivity with the safety light curtains PSENoptProtected fields and detection capability can be set up to be process-orientedHigher productivity due to reduced access timesRapid and simple assembly, installation and commissioningUser-friendly diagnostics thanks to built-in LEDs to reduce down timesComprehensive portfolio including accessories – ideal in combination with safe control technology from Pilz For every discipline – additional benefits of the safety light curtains PSENopt Advanced Simple configuration and commissioning with the PSENopt ConfiguratorThree functionalities in one safety light curtain: muting, blanking and cascadingIncreased safety as there are no dead zonesFlexible installation thanks to coding Small safety light curtains, high level of safety – additional benefits of the PSENopt slimNarrow design saves space and costsIncreased safety as there are no dead zonesEffective protection against encroachment into and behind the protected area thanks to the cascading function
Sick Safety light curtains senSe2
No reviews yet.
Reliably protecting people every day, keeping machines available and always keeping economic efficiency in mind – the senSe2 safety light curtain makes this all possible. It combines an appropriate safety standard with first-class usability. Simply switch on the light curtain and protect the application – without complicated set-up, but including real-time diagnostics and quick maintenance. Externally, the senSe2 has a clear and sophisticated design which ensures both perfect functionality and efficient machine integration. The ideal solution for cost-efficient protection of hazardous points as well as access areas which are only open to one side. At a glance: Intelligent design without blind zones; easy mounting Impact-proof housing Minimum configuration effort System connection: M12 male connector, 5-pin Certification complies with GB 4584 and EU guidelines Type 2 (IEC 61496), SIL 1 (EN 61062), PL c (EN ISO 13849)
Leuze MLC 320
No reviews yet.
The Standard version of this type 2 safety light curtain, with a start/restart interlock (RES) and contactor monitoring (EDM), also features practical function extensions for increased performance – still being simple to handle and integrate into your systems. Advantages:Basic functions such as automatic start/restart, start/restart interlock (RES), contactor monitoring (EDM)Optimal handling due to function selection without PC as well as LED and 7-segment display with integrated 3-zone alignment aidPrevention of mutual interference of the sensors by selectable transmission channels and range reduction, if applicableUniversal application due to standard functionsShort delivery times and global availabilityQR code on the sensor for quick service information

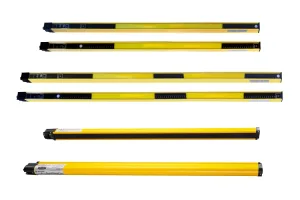

Rockwell Automation 440L Type 4 and 445L Safe 4 GuardShield PAC Safety Light Curtains
