COGNEX 3D-A1000 Dimensioning System Specifications

No reviews yet.
Write a review!

Ranked Nr. 153 of 93 3D Vision Systems

FIND SUPPLIER

See all 93 3D Vision Systems

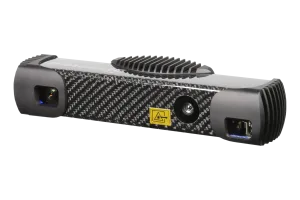

The COGNEX 3D-A1000 Dimensioning System is an industrial smart camera designed to capture both 3D and 2D images of moving objects with exceptional accuracy and efficiency. It stands out due to its innovative use of patented 3D symbolic light technology, which allows it to freeze motion with a single image, eliminating the need for complex calibration and encoder integration. This technology results in highly accurate 3D point cloud data, making it ideal for tasks like container fill measurement, damage detection, and feature finding. The system offers fast and reliable results without requiring intricate setup or ongoing maintenance.

One notable feature of the 3D-A1000 is its ability to optimize various aspects of logistics and warehouse operations. It can estimate shipping costs, optimize storage density, track registered goods, sort products efficiently, recover lost revenue, and eliminate manual processes. Its compact and plug-and-play design, along with its factory calibration, makes it easy to integrate into existing systems, while its <5 mm (0.2") dimensional accuracy on cuboidal and irregular objects ensures precision in measurement, even in challenging scenarios. Additionally, the system is unaffected by uneven transitions, speed changes, or curved conveyance, making it suitable for a wide range of applications.

For those seeking expanded dimensioning capabilities, the 3D-A1000 offers a Multi-Head Dimensioning System that can capture more angles and perspectives. This fully configurable solution allows users to quickly and accurately dimension items at smaller gaps and faster belt speeds, providing a comprehensive, multi-perspective view. Its adaptability and ease of setup make it a powerful addition to logistics and industrial processes, offering seamless barcode tunnel integration with DataMan Multi-Reader Sync and superior performance on difficult target surfaces.

Industry
  • Education
  • Automotive
  • Food and Beverage
  • Packaging
  • Healthcare
  • Electronics
  • Aerospace and Defense
  • Energy and Utilities
Application
  • AR/VR Integration
  • Object Recognition & Control
  • Precise Measurement & Guiding
  • Quality Control & Inspection
  • Robotics & Automation
  • Security & Surveillance
Image Type
  • Color
  • Hyperspectral
  • Monochrome
  • Multispectral
  • MWIR
  • Near-infrared
  • SWIR

3D-A1000 Dimensioning System Downloads

3 D A1000 Dimensioning System 1
You need to register to download this file.
3 D A1000 Dimensioning System 2
You need to register to download this file.
3 D A1000 Dimensioning System 3
You need to register to download this file.
