G1 Mini SCARA Robots - 175mm Pricing

Price indication:

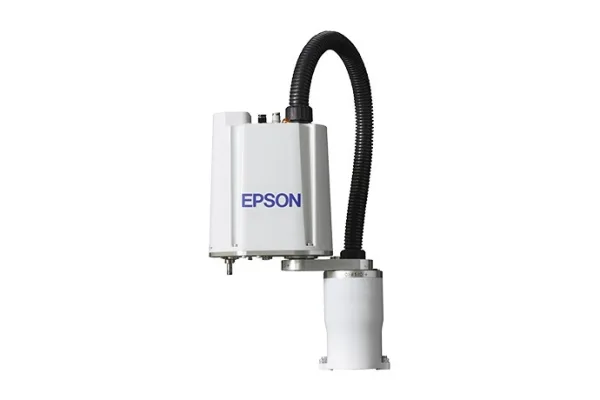

G1 Mini SCARA Robots - 175mm Overview

What is G1 Mini SCARA Robots - 175mm?

Mini Sized with Maximum Performance

Best in Class Cycle Time and Precision

High Performance, High Rigidity Arm Design

Industry Leading Mini SCARA

ISO Clean & ESD Compliant Models

Also available in 225mm arm length

Epson Robots started the Compact class of SCARA robots about 10 years ago with the simple understanding that "smaller is better". Now 10 years later, once again Epson Robots is leading the way with the same "smaller is better" priciple applied to our G1 series robots. Epson G1 175 and 225mm arms are Mini SCARA arms with the same high performance you've come to expect from all Epson Robots. G1 cycle times lead the industry and the best part is that they not only beat competitive models in speed tests, they do it while handling larger payloads as compared to competitive models. Also, with repeatabilities down to 0.005mm G1 arms can handle many of the high precision jobs that used to require high precision XY arms which take up lots of factory space with their large footprints.

Epson G1 Mini SCARA robots are the robot of choice for super high precision, high speed applications where performance AND low cost are required. They are ideal for applications such as hard drive assembly, lab automation, electronics assembly, medical device assembly, photonics, semiconductor, telecommunications, solar, and many others.

Unique to the G1 Mini SCARA robots is that they are available as 4 axis or 3 axis models. G1 Mini SCARA robots can be ordered with the last rotational axis (U-Axis) removed. This is for applications where rotational orientation of the part is not required.

What applications is G1 Mini SCARA Robots - 175mm product best for?

Used for a Wide Variety of Applications and Industries:

Automotive - Mirror/glass assembly, Head and tail light assembly and test, Clutch Assembly, Fuel injector assembly, Dashboard assembly

Hard Drive - cover attachment, Disc polishing, Magnetic tape cartridge assembly, High precision drive assembly

Medical - Dental instrument insert molding, Pacemaker battery assembly, Wire stint laser welding, Hearing aid assembly

Lab Automation - Pipette packaging, DNA test sequencing, Blood Analysis, Test tube capping, Test tube handling

Consumer Products - Electric Tooth brush assembly, Connector Assembly

Telecommunications - Cell phone assembly and test, Radio assembly and test

Pharmaceutical - Custom prescription filling, Tablet packaging, Protein crystal analysis

Solar - Panel assembly

Semiconductor - Assembly and test of custom chips, Wire bonding, Automated board testing, Aerospace electronic components assembly

Electronics - Inspection of PC boards, Automated cleaning of circuit board components

What are the specifications of G1 Mini SCARA Robots - 175mm?

Horizontal Reach 100 mm
Repeatability +/-0.005 mm
Payload Max (4 Axis/ 3 Axis): 1 Kg / 1.5 kg kg
