Epson RS3 SCARA Robots - 350mm Pricing & Product Details

Ranked Nr. 113 of 161 SCARA Robots

See all 161 SCARA Robots

RS3 SCARA Robots - 350mm Pricing

Price indication:

RS3 SCARA Robots - 350mm Overview

What is RS3 SCARA Robots - 350mm?

Unique Design - Maximum Work Envelope Efficiency

Industry Leading Work Envelope Usage

No Lost Space in Center of Work Envelope

Extremely high speed with superior cycle throughput

Zero Footprint Robot

ISO Clean & ESD Compliant Models

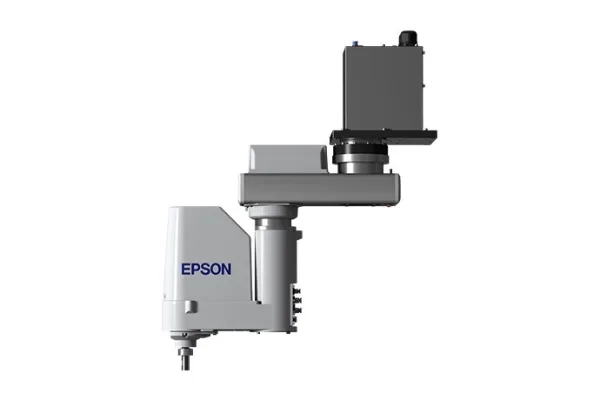

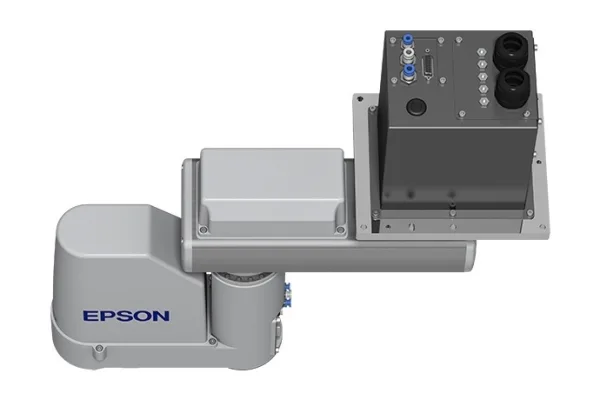

Epson RS3 SCARA robots use a unique new design to improve both work envelope usage and cycle throughput. The arm structure was designed so that joint 2 can maneuver under joint 1 and thus utilize the entire workspace underneath the arm. Unlike other SCARA robot designs, there is no lost space in the center of the work envelope. No other robot vendor offers a 350mm SCARA robot arm which can work with pallets as large as 494mm x 494mm. A pallet size this large would normally require a SCARA arm which is almost double the size. Imagine now being able to use a 350mm arm for applications that used to require a much larger 750mm arm. The RS3 SCARA arms are also designed for speed. With super fast cycle times the RS3 is ideal for applications running in demanding industries such as Automotive, Medical, Semi Conductor, Food, Pharmaceutical, Consumer, and many others, Epson RS3 SCARA's are the unique alternative to "just another SCARA" arm and they deliver the high performance required for todays demanding applications.

RS3 SCARA+ arms are available in 350mm arm lengths with either a 130mm Z-Axis length (100mm clean). They are also available in ISO3 Clean/ESD configurations as required for the semi-conductor and medical industries.

With the industry leading ease of use of the Epson RC+ Development Environment and a ton of integrated options, Epson RS3 Robots with Epson Controllers significantly reduce overall learning curves and development time. RS3 SCARA+ robots are available with either our compact powerful RC180 Controller or our open architecture PC based RC620+ Workcell Controller. The choice is yours depending upon your application. Both controllers feature a host of integrated options such as Vision Guide, .NET support, DeviceNet, Profibus and Ethernet/IP communications interfaces and much more.

What applications is RS3 SCARA Robots - 350mm product best for?

Used for a Wide Variety of Applications and Industries:

Automotive

Consumer Products

Industrial Products

Telecommunications

Pharmaceutical

Packaging

Semiconductor

Food

Electronics

What are the specifications of RS3 SCARA Robots - 350mm?

Horizontal Reach 130-350 mm
Repeatability +/-0.010 mm
Payload 1-3 kg
