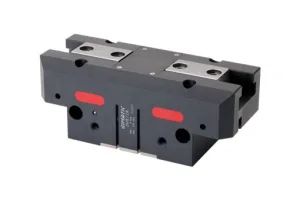

Gimatic 2-jaw self-centering pneumatic parallel gripper series DH-DH Alternatives & Competitors

• Double-acting drive.
• Available with normally closed spring on request.
• Self-centering mechanism.
• Various mounting and feeding options.
• Optional magnetic sensors.
• FDA-H1 food-grade grease.
• Stainless steel jaws.

• Double-acting drive (normally closed on request).
• High gripping force.
• IP67 protection rating.
• Double O-Ring sealing on the columns.
• Suitable for harsh environments.
• Optional magnetic sensors.
• FDA-H1 food-grade grease.

• Double-acting drive.
• Backlash adjusting system.
• Maintenance-free long life and reliability.
• Various mounting and feeding options.
• Optional magnetic sensors.
• FDA-H1 food-grade grease.

• Double-acting drive.
• Self-centering mechanism.
• Ready for magnetic and inductive sensors.
• Light weight, due to its alloy construction.
• FDA-H1 food-grade grease.

• Double-acting drive.
• Very high performance/price ratio.
• Lightweight, as light alloy and plastic resin had been utilized.
• Gripper mounting possible on two sides.
• Optional magnetic sensors.
• FDA-H1 food-grade grease.

• Double-acting drive.

• Backlash adjusting system.

• High performance in small dimensions.

• The rugged construction lends itself to heavy duty applications for a trouble free long life without maintenance.

• Various mounting and feeding options.

• Ready for PRO-SN programmable magnetic sensor.

• FDA-H1 food-grade grease.

• Hannover IF Design Award 1999 winner.
• Modular with Gimapick system.
• Double-acting drive (single-acting on request).
• Air feeding possible directly from the fixing plate.
• Easy fastening by through holes on the flange.
• High gripping force and low weight.
• Optional magnetic sensors.
• FDA-H1 food-grade grease.

• 4 needles (PT25) or 8 needles (PT28) with 2mm diameter
• 4 needles of diameter 1.5mm (PT23) (PT30).
• Suitable for plastics, textile and food industry.
• Double-acting drive (PT25) (PT28).
• Single-acting drive (normally closed) (PT23) (PT30).
• Simultaneous needle stroke adjustment.
• Various mounting accessories available.
• PT25: Large through-hole.
• PT28: Blow-off duct (T) for cleaning and release.
• PT28: PTFE pad for contact with hot surfaces.
• PT28: Optional magnetic sensors.
• PT23S and PT30S: clamp-mounting.
• PT23N and PT30N: mounting on plate.
• Optional magnetic sensors for PT23S and PT30S.

• Robust guide.
• Long stroke.
• Integrated springs.
• Various fixing and supply options.
• FDA-H1 food-grade grease.
