HPS-FT-EC2000-IO Overview
What is HPS-FT-EC2000-IO?

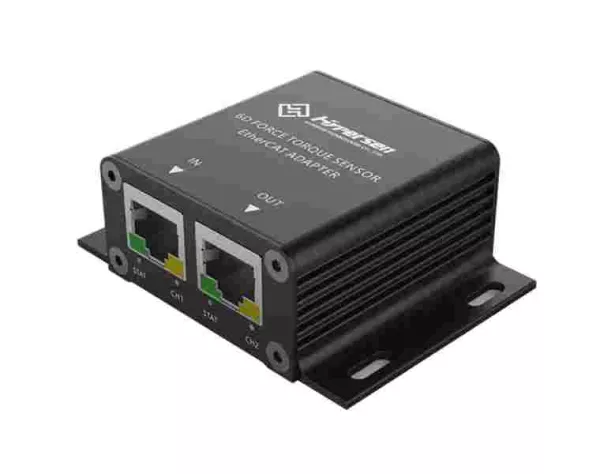

Hypersen's HPS-FT-EC2000-IO is a force and torque sensor that converts RS485 interface to EtherCAT interface. It allows a shorter data update cycle and reduces communication jitter during data synchronization. The sensor measures the six components of force and torque and has integrated functions like signal conditioning and data acquisition. The HPS-FT-EC2000-IO supports up to 2000Hz data output frequency and has multiple types of adjustable digital filters. It has a real-time IO alarm function with a multi-axis configurable alarm threshold.
The sensor can be configured to support different sensor coordinate systems. It is compatible with binary and ASCII command analysis modes, making it suitable for embedded systems and robot control systems. The HPS-FT-EC2000-IO is commonly used in industrial robots, collaborative robots, medical robots, and wind tunnel testing, among other applications.
In terms of technical specifications, the HPS-FT-EC2000-IO has a size of 70.8 * 55.35 * 24.65 mm and a weight of 86g. It has an operating temperature range of -10~55°C and a power consumption of 0.5W. The sensor is designed to be used with the 6D Force Torque Sensor HPS-FT series, and it can be a useful tool for engineers and designers who need to measure force and torque in their applications.
What applications is HPS-FT-EC2000-IO product best for?
The Hypersen HPS-FT-EC2000-IO is an ideal solution for various applications in robotics and automation. Its ability to measure the six components of force and torque makes it suitable for tasks that require precise control and feedback. One such application is Robot Hand Guiding, where the sensor can be used to provide real-time feedback to the operator's movements, allowing for precise control and manipulation of objects.
Another application where the HPS-FT-EC2000-IO can be useful is Surface Polishing. With its high frequency data output and configurable digital filters, the sensor can be used to monitor the force and torque applied during the polishing process, ensuring consistency and quality of the finished product.
In Force Controlled Assembly, the HPS-FT-EC2000-IO can be used to precisely measure and control the force and torque applied during assembly, ensuring that parts are assembled correctly and securely. This is especially useful in applications where small or delicate components are being assembled.
Machine Tending is another application where the HPS-FT-EC2000-IO can be useful. Its ability to provide real-time feedback on the force and torque being applied can help ensure that parts are loaded and unloaded from machines correctly and safely, reducing the risk of damage to parts or machines.
In Force Feedback Control applications, the HPS-FT-EC2000-IO can provide real-time feedback to a robot's movements, allowing for precise control and manipulation of objects. This is useful in applications where the robot needs to interact with objects with varying shapes and sizes.
Finally, the HPS-FT-EC2000-IO can be used for Robot Collision Avoidance. By providing real-time feedback on the force and torque being applied, the sensor can help robots detect and avoid collisions with other objects, ensuring the safety of both the robot and the surrounding environment.
What are the specifications of HPS-FT-EC2000-IO?
| Product mass | 0.086 kg |
