HPS-FT025 Overview
What is HPS-FT025?

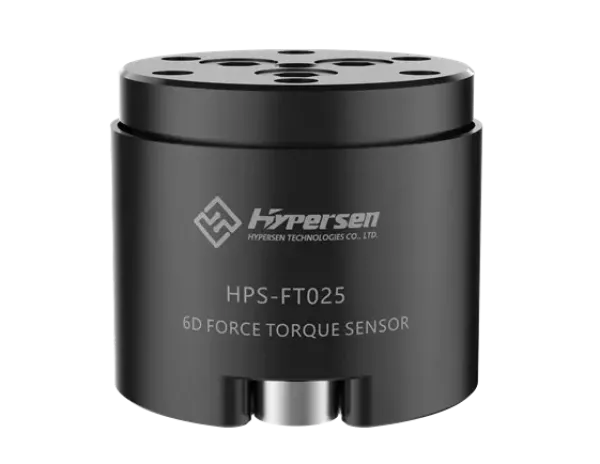

The Hypersen HPS-FT025 is a high-performance force and torque sensor that can measure force and torque on three spatial axes of XYZ. It is equipped with a high-performance processor and a 24-bit ADC that provides high accuracy and high SNR digital output. This sensor is designed for use in various applications, such as industrial robots, collaborative robots, factory automation, and more.
One of the key features of the HPS-FT025 is its high static overload protection. It can withstand an overload of up to 350% without causing any damage to the sensor. Additionally, it has a low zero drift and cross-axis effect, as well as a low temperature drift, which ensures accurate measurements over time.
The HPS-FT025 has a maximum output data rate of 2000Hz, making it ideal for applications that require real-time force and torque feedback. It is available with Ethernet, EtherCAT, and RS-485 communication interfaces, which makes it easy to integrate into existing systems.
In terms of technical parameters, the HPS-FT025 has a measuring range of ±150N (Fxy), ±200N (Fz), ±4Nm (Mxy), and ±4Nm (Mz). Its precision is 0.05N (Fxy), 0.05N (Fz), 0.001Nm (Mxy), and 0.001Nm (Mz). The sensor has a weight of 28g and a size of 23*26.2mm (diameter). It operates in a temperature range of -10~55°C and consumes only 0.5w of power.
The HPS-FT025 has a protection rating of IP65, which means it is dust-tight and protected against water jets. It also has a hysteresis of 0.1% (F.S.), non-linearity of less than 1%, and creep of less than 2%. The signal noise is 0.05N (Fxy), 0.08N (Fz), 0.001N (Mxy), and 0.001N (Mz), and the crosstalk is less than 1% (F.S.).
Overall, the Hypersen HPS-FT025 is a highly reliable and accurate force and torque sensor that is suitable for a wide range of industrial applications. With its high static overload protection, low drift, and fast data output rate, it can provide real-time feedback for various automated processes, ensuring optimal performance and efficiency.
What applications is HPS-FT025 product best for?
The Hypersen HPS-FT025 force and torque sensor is a versatile device that can be used in a wide range of applications in industrial automation. Some of the most common applications include robot hand guiding, surface polishing, force-controlled assembly, machine tending, force feedback control, and robot collision avoidance.
In robot hand guiding, the HPS-FT025 can provide real-time force and torque feedback to the robot controller, allowing for precise and accurate control of the robot's movements. This can be especially useful in applications where the robot needs to handle delicate or fragile objects.
In surface polishing applications, the HPS-FT025 can be used to monitor the force and torque applied by the polishing tool, ensuring consistent and high-quality surface finishes. This can be especially useful in applications where surface finish is critical, such as in automotive or aerospace manufacturing.
In force-controlled assembly, the HPS-FT025 can be used to ensure that parts are assembled with the correct force and torque. This can help to prevent damage to the parts and ensure that they are assembled correctly, improving product quality and reducing the risk of failures.
In machine tending applications, the HPS-FT025 can be used to monitor the forces and torques applied by the machine, ensuring that the machine is operating within safe and optimal parameters. This can help to reduce downtime and maintenance costs, as well as improve product quality and throughput.
In force feedback control, the HPS-FT025 can be used to provide real-time feedback to the operator, allowing them to adjust their actions to achieve the desired force and torque. This can be especially useful in applications where precise control is required, such as in surgical robotics or teleoperated systems.
In robot collision avoidance, the HPS-FT025 can be used to detect and measure the forces and torques involved in collisions, allowing the robot to take evasive action or shut down to prevent damage or injury. This can be especially useful in applications where humans are working in close proximity to robots, such as in collaborative robotics.
What are the specifications of HPS-FT025?
| Product mass | 0.028 kg |
