PalFlex Overview

What is PalFlex?

Modular and ready-to-use solution for any palletizing need of boxes, cans or other objects up to 16 kg (after checking the applied tool).

Speed up to 14 pieces/min (guaranteed rate with box weight of max 8 kg and with non-collaborative working mode and multiple gripping head).

The large color panel mounted on the machine assists the user in a clear and fast way, allowing him to optimize the palletizing process automatically without the need of additional programs.

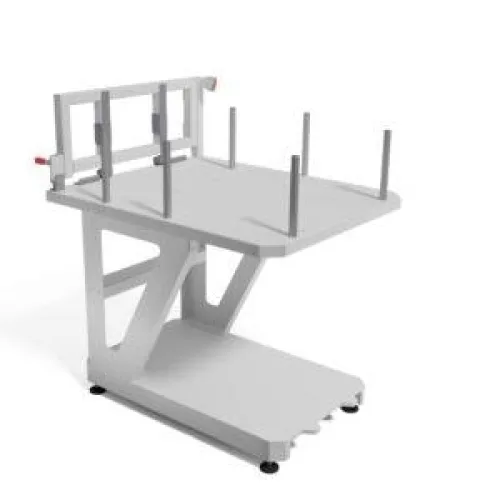

Possibility of managing interlayers, thanks to the special warehouse module and the creation of particularly high pallets by means of a telescopic column.

PalFlex advantages:

  • Easily transportable with a simple pallet truck

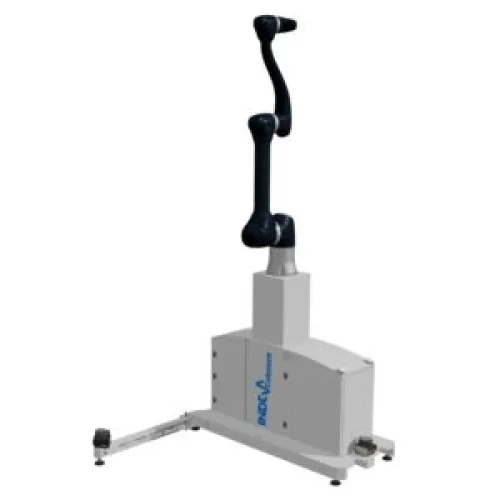

  • Motorized telescopic column for Cobot to reach different heights
  • Plug & Play: just a standard 220V and AC outlet to get started
  • Ballasted base, possibility of working without having to anchor it to the floor and flexibility in positioning
  • Secure: Immediate lockout upon obstacle detection, safety level Cat.3 PL d, guaranteed by the CE marking in accordance with the Machinery Directive 2006/42/EC
  • Versatile: gripping hand can be customized according to the customer’s specific needs. Realizable in different shapes depending on what is to be handled (16-20 kg after verification of the cobot payload)
  • Quick and easy task configuration using dedicated palletizing software, with just a few steps, allows the creation and optimization of palletizing configurations
