iRAYPLE L5042CG141E Pricing & Product Details

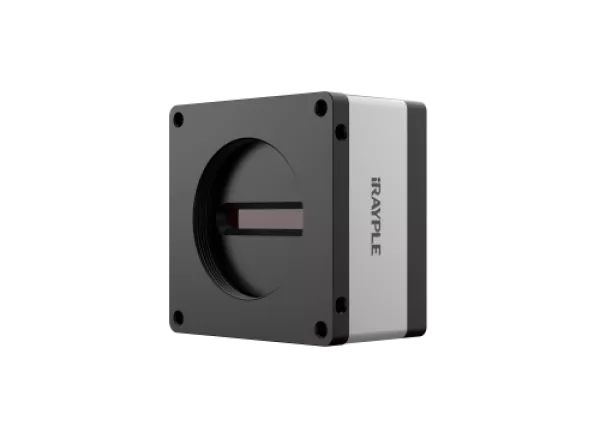

The IRAYPLE L5042CG141E is a high-performance 4K image sensor designed to meet demanding industrial imaging requirements. It boasts a global shutter CMOS sensor with a resolution of 4096 × 2 pixels, offering exceptional clarity and detail in captured images. With a line rate of 28 kHz and a bit depth of 12, this sensor ensures rapid image capture with accurate color representation and minimal motion blur, making it ideal for applications requiring precise imaging even in fast-moving environments.

One of its standout features is its comprehensive image signal processing (ISP) capabilities, including support for brightness enhancement, gamma correction, and look-up table (LUT) functionality. This enables users to fine-tune and optimize captured images according to specific application requirements, ensuring superior image quality and consistency. Additionally, the sensor supports various output data formats, including BayerRG, RGB, and YUV, providing flexibility for integration into diverse imaging systems and workflows.

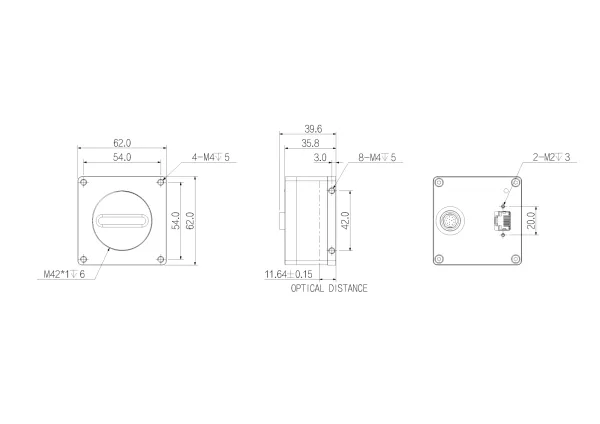

Built for versatility and reliability, the L5042CG141E features a rugged yet compact design, with dimensions of 62 mm × 62 mm × 35.8 mm and a weight of 240 g (excluding rear case connector). It operates efficiently within a wide temperature range (-30℃ to +50℃) and can be powered via DC12~24V, offering compatibility with a range of industrial setups. With certifications including CE, FCC, UL, and RoHS, users can trust in the sensor's compliance with international standards for quality, safety, and environmental protection. Whether deployed in machine vision, robotics, or surveillance systems, the IRAYPLE L5042CG141E excels in delivering high-performance imaging solutions for demanding industrial applications.
