R5016MG-06M-RGG01E Overview

What is R5016MG-06M-RGG01E?

The iRayple R5016MG-06M-RGG01E, part of the R5000 Series, offers a versatile solution for industrial vision applications. Its standout feature includes a light-integrated design, providing optional red/white/blue illumination with separate control, catering to diverse inspection needs. Additionally, the device supports various focal lengths and features electrical auto-focus and one-click auto-training capabilities, enhancing ease of use and adaptability across different setups.

Equipped with a GigE interface and boasting an IP65 protection level, the R5016MG-06M-RGG01E ensures robust connectivity and durability in harsh industrial environments. It offers abundant IO interfaces such as Ethernet, RS232, and GPIO, supporting multiple communication protocols, facilitating seamless integration into existing systems. Moreover, built-in deep-learning algorithms and multi-parameter polling ensure effective performance in complex applications, making it suitable for a wide range of quality control and inspection tasks in manufacturing environments.

With a resolution of 1440 × 1080 and a maximum frame rate of 60 fps, this device delivers high-quality imaging performance. Its comprehensive functionality includes support for various code formats and evaluations of code quality, along with certifications such as CE, FCC, and KC, ensuring compliance with industry standards. Whether it's reading 1D or 2D codes, assessing code quality, or operating at high speeds, the iRayple R5016MG-06M-RGG01E excels in delivering reliable and efficient performance for industrial automation and quality assurance applications.

What applications is R5016MG-06M-RGG01E product best for?

  1. Industrial Automation: The iRayple R5016MG-06M-RGG01E is ideal for automated quality inspection tasks in manufacturing environments, ensuring accurate code reading and evaluation at high speeds.
  2. Logistics and Warehousing: With its ability to read various code formats and operate at high speeds, this device is well-suited for automated sorting, tracking, and inventory management in logistics and warehousing operations.

What are the specifications of R5016MG-06M-RGG01E?

Image Type
  • Color
  • Hyperspectral
  • Monochrome
  • Multispectral
  • MWIR
  • Near-infrared
  • SWIR
Frame rate 60 FPS

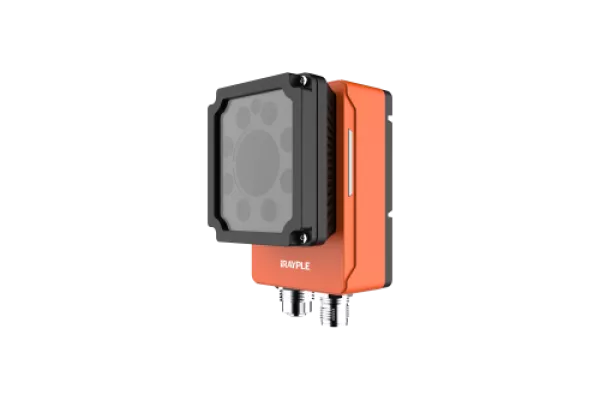

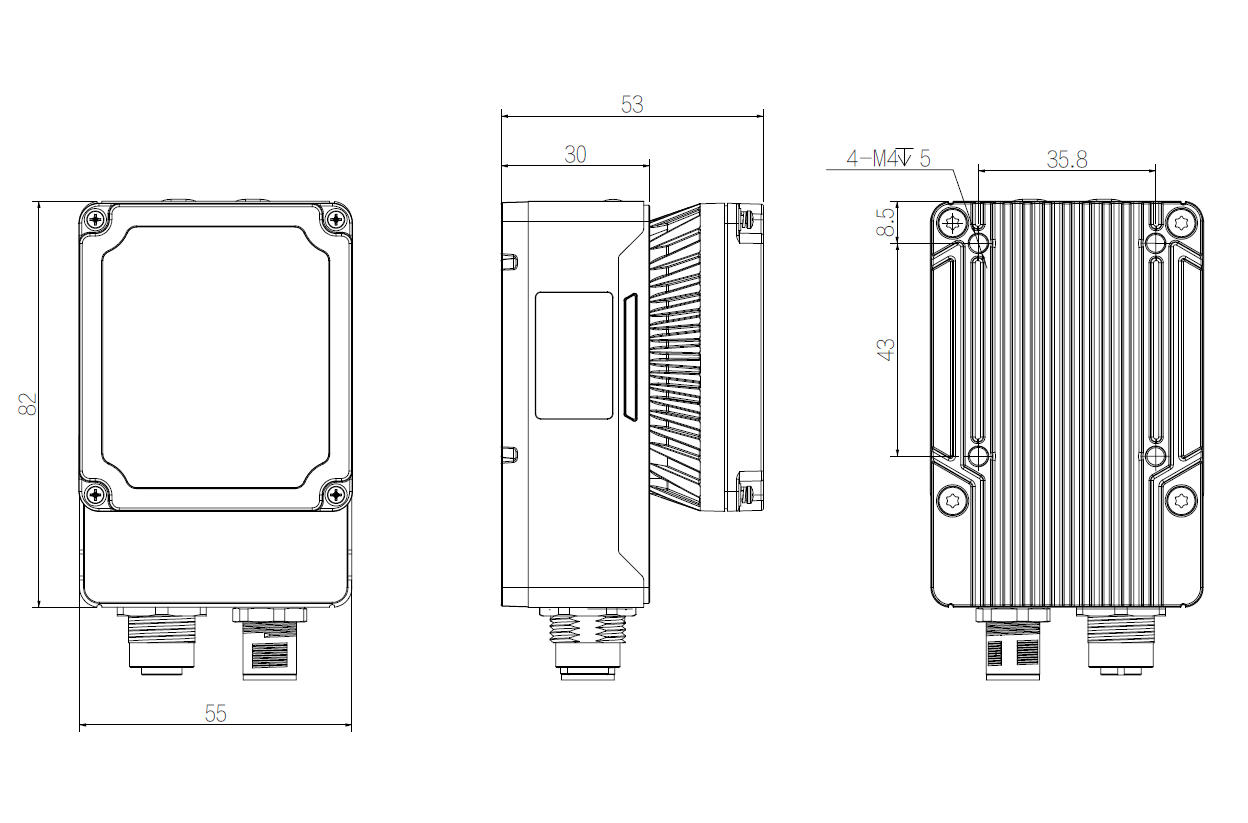

R5016MG-06M-RGG01E Images
