Kitagawa NTS317 Three Jaw Pneumatic Parallel gripper Pricing & Product Details
Ranked Nr. 523 of 237 Grippers
NTS317 Three Jaw Pneumatic Parallel gripper Pricing
Choose your model
NTS206 two jaw Pneumatic Parallel gripper
Parallel
NTS307 three jaw Pneumatic Parallel gripper
Parallel
NPGT08 two Jaw pneumatic Parallel gripper
Parallel
NTS208 two jaw Pneumatic Parallel gripper
Parallel
NTS210 Two Jaw Pneumatic Parallel gripper
Parallel
NTS212 Two Jaw Pneumatic Parallel gripper
Parallel
NTS216 two jaw Pneumatic Parallel gripper
Parallel
NTS220 Two Jaw Pneumatic Parallel gripper
Parallel
NTS309 Three Jaw Pneumatic Parallel gripper
Parallel
NTS311 Three Jaw Pneumatic Parallel gripper
Parallel
NTS313 Three Jaw Pneumatic Parallel gripper
Parallel
NTS317 Three Jaw Pneumatic Parallel gripper
Parallel
NPGT10 Two Jaw Pneumatic Parallel gripper
Parallel
NTS311 with set of NTS-QM311 Quick jaw change base jaws
Parallel
NTS309 with set of NTS-QM309 Quick jaw change base jaws
Parallel
Price indication:
NTS317 Three Jaw Pneumatic Parallel gripper Overview
What is NTS317 Three Jaw Pneumatic Parallel gripper?
High quality & durable standard model

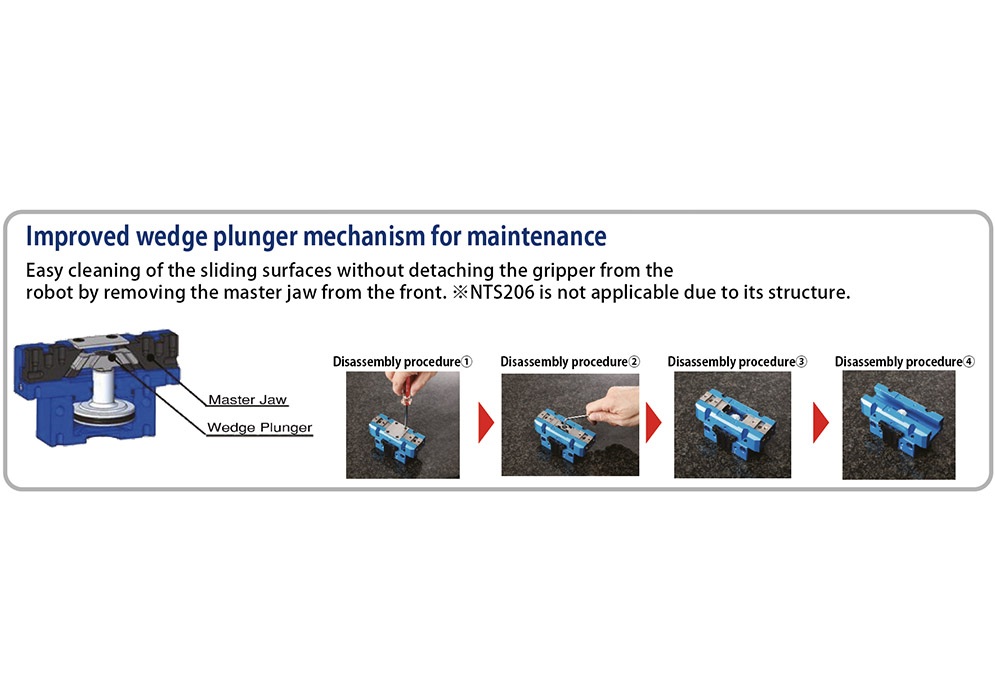

Swarf protection and improved maintenance
High gripping force for stable gripping of heavy workpieces

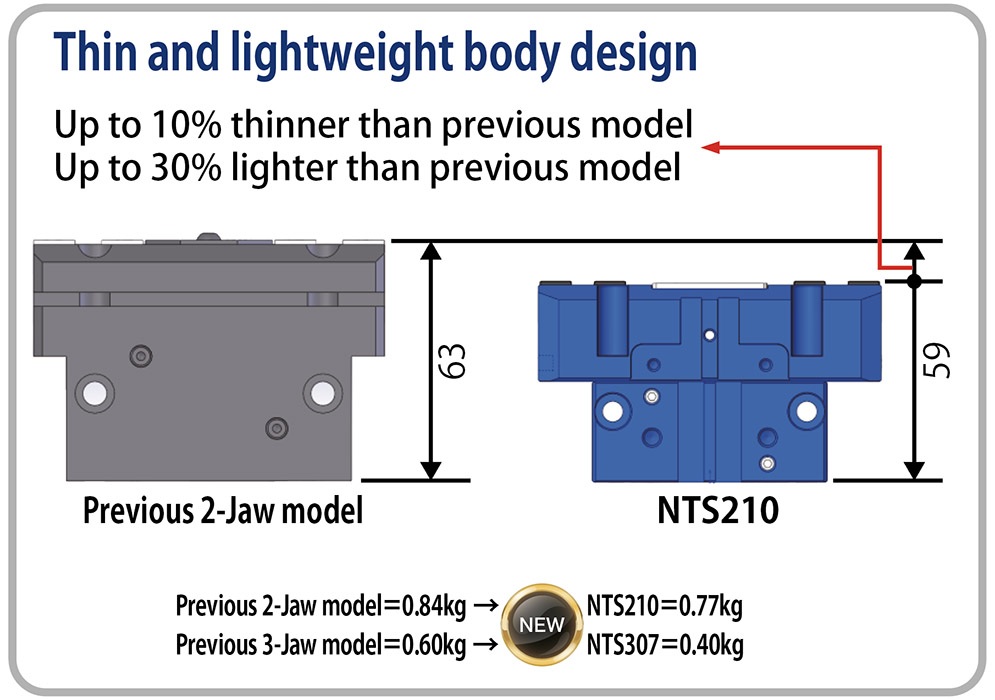

Lightweight and compact body not limiting the load capacity of robot
New mounting style for smaller protrusion compared with conventional models

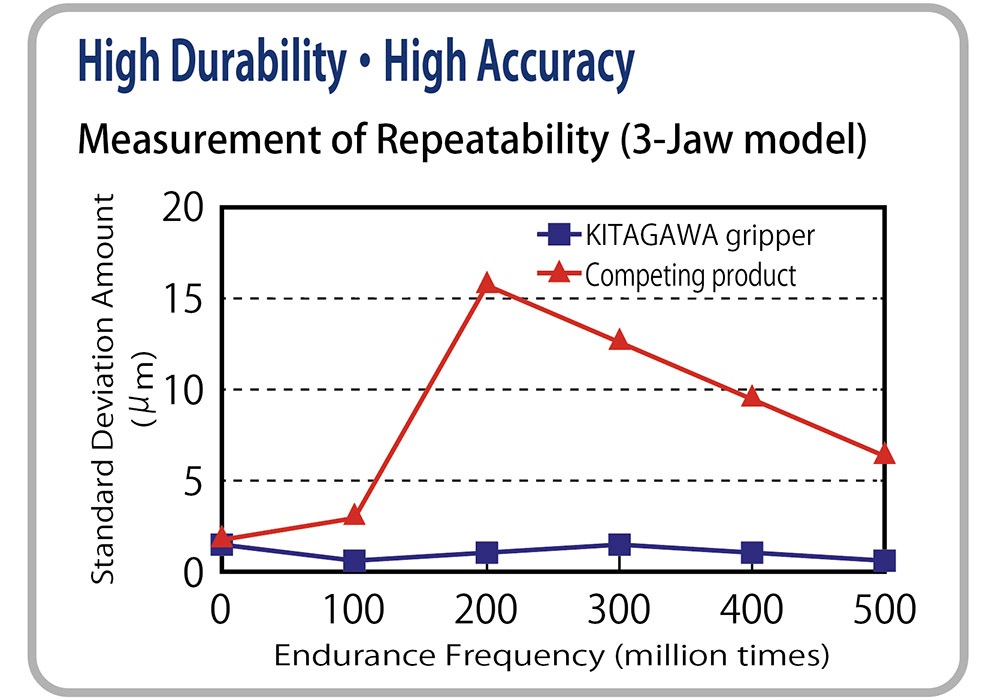

Improved gripping accuracy due to extremely rigid body

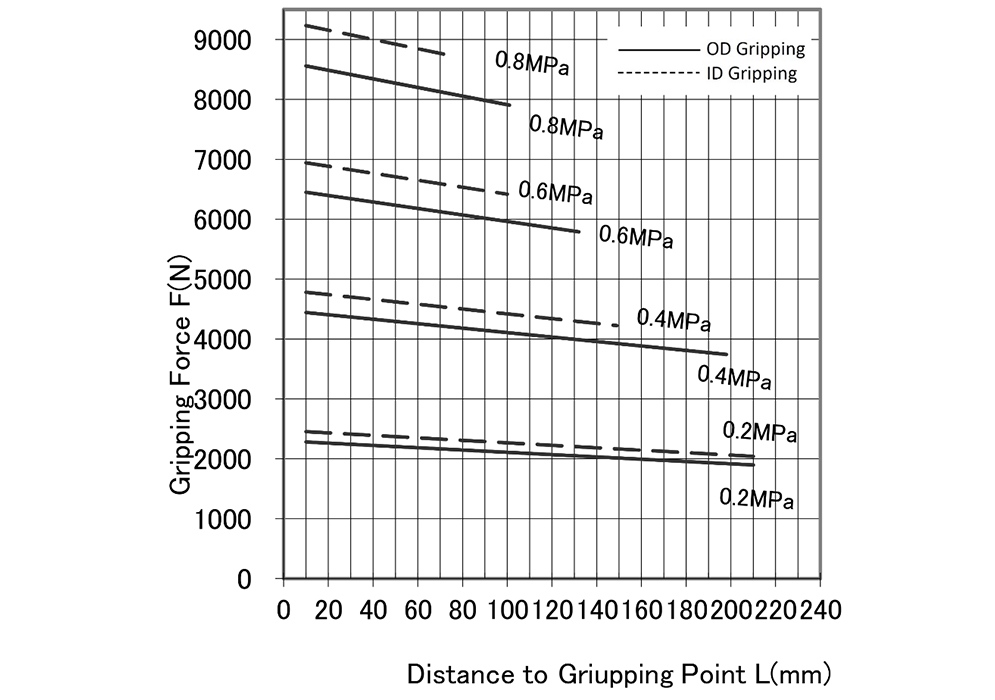

Close Force(N): 6400
Open Force(N): 6900
* Air pressure set at 0.6 MPa.
Measurement Distance L(mm): 20
Jaw Stroke: 32mm(dia.), 16mm(per finger)
What are the specifications of NTS317 Three Jaw Pneumatic Parallel gripper?
| Operation type |
|
NTS317 Three Jaw Pneumatic Parallel gripper Images
