KraussMaffei Berstorff LRX EasyControl linear robot Specifications

No reviews yet.
Write a review!

Ranked Nr. 47 of 36 Cartesian (Gantry) Robots

FIND SUPPLIER

See all 36 Cartesian (Gantry) Robots

100% compatibility with other injection molding machine manufacturers

Attractive price/performance ratio

Optimal equipment for pick-and-place applications

Fast process adjustment


Highlights

Precision with rack-and-pinion drive
Rack-and-pinion drive for high-precision robot positioning with fast movements in all axes.

Motors with absolute value encoder
High acceleration and short cycle times, No hassle with referencing when starting the robot (absolute encoder)

Operation with the "convenience" factor
The new control system conforms to the concept of the LRX EasyControl. The system features a hand-held HMI to allow for fast start-up and easy operation. Depending on the task, programming can be done graphically or using a text editor.

Compact and light: the new wrist axes
Servo wrist axes optimized in design and weight increase productivity by saving process times.

Fast and flexible with the central media portal
Central media supply allows simple gripper change and provides modular expandability of gripper functions.

High-performance control cabinet concept ensures high availability
Control of pneumatic and vacuum valves and compact main board for I/O signal processing

Payload 5-100 kg
Protection (IP) 54
Number of Axis

LRX EasyControl linear robot Alternatives

See all 47 Cartesian (Gantry) Robots
KONSEI Gantry robot
Payload 0.5-100 kg
No reviews yet.
Useful when ・You need connect another loader to extend or have mutiple carriages. ・Multi-purpose use is required Features ・Option to connect another loader to extend via long stroke ・Can handle heavy workpieces ・ Multi-purpose use is possible via combination of multiple carriages
LUCAS RC2-YZ : YZ 2-AXIS GANTRY ROBOTS
Payload 100-6000 kg
No reviews yet.
Characteristics The Lucas two-axis robots are modular and totally configurable. Their vertical axes can serve several work areas from the air. Key points With our three-metre-long join system, 2-axis gantries are available to order in all sizes.Several vertical axes can work on one gantry at the same time, whether collaboratively or to improve productivity.They are ideal for moving heavy loads dynamically, quickly and precisely.The LUCAS multi-element design facilitates the transport and handling of long axes.The beams may be extended through joining to another beam even after installation.The variable distance between the legs makes it easy to implement the robot and overcome constraints imposed by existing equipment.A range of options are available:- Rotation at the end of the vertical axis, telescopic vertical axis, extra security systems, etc.- Easy to programme and operate thanks to the LUCAS Control control cabinet.
ENGEL Cartesian robot Viper
Payload 6-120 kg
No reviews yet.
ENGEL has been building high-performance cartesian robots, also called gantry or linear robots, since 1980. Our viper robots are the perfect addition to your injection molding machine. The innovative and sturdy design offers increased payload capacity with low dead weight. The digital solutions from our inject 4.0 program ensure that all movements are aligned. High load capacity for machines from 30 to 5,500 tons Integrated control concept for easy operation Reduction of cycle time through optimized path planning Flexible connection of gripper solutions

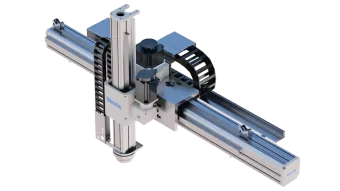

Hirata Gantry robot GR-1750 series
Payload 50-100 kg
No reviews yet.
High rigidity, high durability Maintenance free, weight capacity from 50 to 150 kg Abundant variations The stroke and number of axes can be freely configured and combined Extensive record Supports machine tools, transferring and stocking large or heavy items, and assembly Supports applications in various fields including ship building, aerospace, housing, automobiles, tires, household appliances, photovoltaic cells, OEL, medical devices, and food products
FUYU Cartesian robot FSL120XYZ-T
Payload 50-100 kg
No reviews yet.
Technical Features FSL120 linear module, fully enclosed structure, body width 120mm, two guides and four sliders, with high precision, multi-segment repeat positioning, compact structure, strong versatility, suitable for use in special environments. Range of Application It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dustfree workshops or special fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on-line inspection, precise positioning detection of soldering automation equipment, laser plus (laser cutting/laser marking/laser engraving/laser drilling, etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and other fields.
