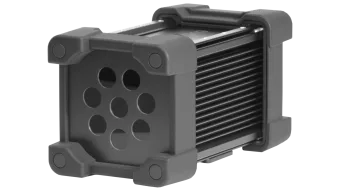

Lucid Vision Helios2+ Time of Flight 3D Camera Specifications

No reviews yet.
Write a review!

Ranked Nr. 106 of 93 3D Vision Systems

FIND SUPPLIER

See all 93 3D Vision Systems

Get an IP67 “factory tough”, high-performance 3D camera with the accuracy and precision you need powered by LUCID’s 3D ISP core and Sony’s DepthSense IMX556 Time-of-Flight (ToF) sensor. With the Helios2+ camera delivering two new features – High Dynamic Range (HDR) and High-Speed modes – over the original Helios2, the Helios2+ provides unmatched depth data clarity and high-speed 3D imaging for 24/7 operation in harsh industrial environments.



Helios2+ Time-of-Flight Camera with On-Camera HDR & High Speed Features

The Helios2+ is an advanced version of the Helios2 ToF camera offering two new key features enabling deployment in challenging environments, High Dynamic Range (HDR) mode and High Speed Time-of-Flight mode, while retaining all other benefits of the Helios2. Both HDR and High-Speed modes are realized entirely with on-camera processing and will impair minimal changes on the vision systems back-end. The Helios2+ shares the same ‘factory tough’ industrial platform with its predecessor and is 100% mechanically and electronically compatible with the Helios2 to offer a seamless upgrade path for existing customers. Its compact form factor, industrial reliability and attractive price point make the Helios2+ ideal for many demanding 3D applications such as 3D inspection, automated material handling and robotics to run more efficiently while reducing overall system cost.

Protection (IP) 67
Image Type
  • Color
  • Hyperspectral
  • Monochrome
  • Multispectral
  • MWIR
  • Near-infrared
  • SWIR
Resolution 640
Operating range 0.3-6 m

Helios2+ Time of Flight 3D Camera Alternatives
