Robot Phoenix Bat 1600-S6 Pricing & Product Details
Ranked Nr. 76 of 78 Delta Robots
Bat 1600-S6 Pricing
Choose your model
Bat 800-S3
Payload 3kg | Reach 800mm
Bat 1600-S6
Payload 6kg | Reach 1600mm
Bat 1300B-S50
Payload 50kg | Reach 1300mm
Bat 1000B-S60
Payload 60kg | Reach 1000mm
Bat 2000M-S15
Payload 15kg | Reach 2000mm
Price indication:
Bat 1600-S6 Overview
What is Bat 1600-S6?

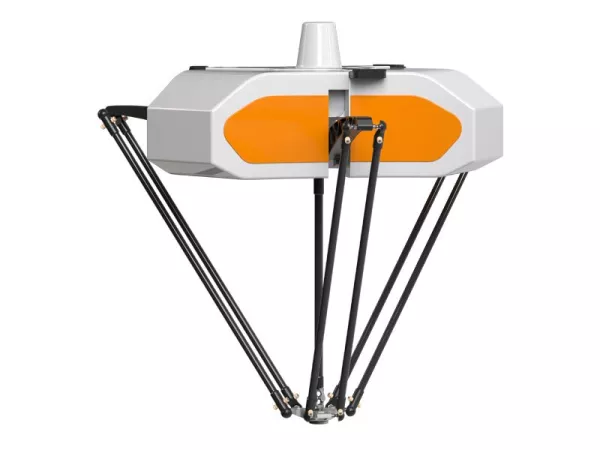

The Robot Phoenix Bat 1600-S6 is a large-scale, 4-axis delta robot designed for high-speed and high-precision industrial automation. With a maximum payload capacity of 6 kg and a wide workspace diameter of 1600 mm, it is suited for handling larger or multiple lightweight items simultaneously. Its repeatability of ±0.1 mm (±0.2° for the rotational axis) ensures reliable accuracy in complex tasks, such as sorting, picking, or gluing across expansive work areas.
The Bat 1600-S6 achieves cycle times as low as 0.26 seconds for lightweight objects and maintains competitive speeds even with heavier loads, supported by a top linear velocity of 10 m/s. These performance metrics, along with its rated power of 4.6 kW and IP54-rated design, make it viable for use in demanding, semi-clean environments where throughput and consistency are key.
Physically, the robot has a tall operational profile with the upper workspace plane located 1022 mm from the installation surface, accommodating a workspace volume of 350 mm cylindrical height. Its mounting dimension supports integration into floor or overhead setups, making it well-suited for applications in logistics automation, high-volume food packaging, and battery pack assembly in the new energy sector.
What applications is Bat 1600-S6 product best for?
- E-commerce Logistics: The Bat 1600-S6 is ideal for high-speed sorting of mixed parcel sizes in e-commerce fulfillment centers, using its 1600mm reach and 10m/s speed to manage large conveyor coverage with precision.
- Battery Pack Handling: In new energy production lines, the Bat 1600-S6 handles heavy and delicate battery modules with ±0.1mm accuracy, ensuring precise alignment during assembly and packaging stages.
- Bulk Food Sorting: The robot excels at high-throughput sorting of bagged or boxed food items in industrial packaging lines, utilizing its 6kg payload and extended reach to optimize multi-lane operations.
- Medical Supply Kitting: The Bat 1600-S6 assembles and organizes kits containing multiple medical items, leveraging its wide cylindrical workspace to handle varied object dimensions within strict tolerances.
- Chemical Container Palletizing: For daily chemical industries, the robot efficiently moves and arranges mid-sized plastic containers, balancing speed and control while meeting hygiene and repeatability standards.
What are the specifications of Bat 1600-S6?
| Payload | 6 kg |
| Reach | 1600 mm |
