Robot Phoenix Bat 800-S3 Pricing & Product Details
Ranked Nr. 81 of 78 Delta Robots
Bat 800-S3 Pricing
Choose your model
Bat 800-S3
Payload 3kg | Reach 800mm
Bat 1600-S6
Payload 6kg | Reach 1600mm
Bat 1300B-S50
Payload 50kg | Reach 1300mm
Bat 1000B-S60
Payload 60kg | Reach 1000mm
Bat 2000M-S15
Payload 15kg | Reach 2000mm
Price indication:
Bat 800-S3 Overview
What is Bat 800-S3?

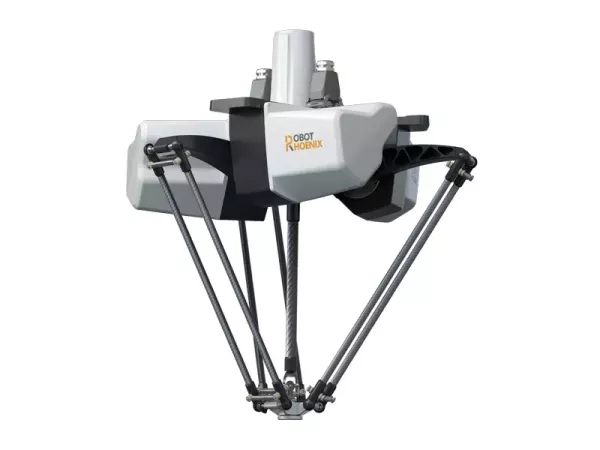

The Robot Phoenix Bat 800-S3 is a high-performance delta robot specifically designed for rapid and precise operations in automation-intensive industries. It features a 4-axis configuration and delivers a standout repetitive positioning accuracy of ±0.08 mm (±0.2° for rotational axis), making it well-suited for tasks that demand exacting precision. With a cylindrical workspace diameter of 800 mm and a height of up to 200 mm, it provides a robust operational envelope for compact, high-speed applications.
This robot supports a maximum payload of 3 kg and reaches peak speeds of 6 m/s, with cycle times as low as 0.25 seconds for lighter loads. Such characteristics make it ideal for high-throughput processes such as sorting, packing, loading/unloading, and adhesive dispensing. Its versatility is underlined by compatibility with multiple industries, including electronics, food, pharmaceuticals, daily chemicals, logistics, and new energy sectors, where reliability and speed are critical.
Physically, the Bat 800-S3 is compact, with a 120 kg body and a base mounting dimension of 600 mm diameter. Its power system runs on three-phase AC380V, consuming 3.4 kW, and it holds an IP54 protection rating, ensuring basic resistance to dust and moisture. These design parameters reflect its focus on performance stability in clean, controlled production environments.
What applications is Bat 800-S3 product best for?
- Electronics Industry: The Bat 800-S3 excels in high-speed placement and sorting of small electronic components on PCBs, leveraging its ±0.08 mm accuracy and 0.25s cycle time to ensure error-free handling in compact workspaces.
- Food Packaging: In automated snack or confectionery lines, the Bat 800-S3 performs rapid pick-and-place operations with hygienic precision, taking advantage of its 3kg payload and IP54 rating for clean environments.
- Pharmaceutical Sorting: Ideal for sorting blister packs or small vials, the robot’s 4-axis control and 800mm reach enable swift, sterile handling with repeatability suited to regulated environments.
- Logistics Micro-Fulfillment: The Bat 800-S3 supports fast parcel sorting in dense grid layouts, with its 6m/s top speed and compact footprint streamlining throughput in last-mile logistics hubs.
- Battery Cell Assembly in New Energy: Its precision and power make it fit for placing and bonding lightweight battery cells during the early assembly stages of lithium-ion battery production.
What are the specifications of Bat 800-S3?
| Payload | 3 kg |
| Reach | 800 mm |
