SAFELOG AGV L1 Specifications

No reviews yet.
Write a review!

Ranked Nr. 26 of 186 Mobile Robots

FIND SUPPLIER

See all 186 Mobile Robots

The SAFELOG AGV L1 transport robot is characterized by its remarkable combination of high carrying capacity and exceptional maneuverability, attributed to its distinctive omnidirectional driving style. This unique feature allows the AGV L1 to effortlessly navigate in all directions, making it a versatile asset in various industrial environments.

A standout attribute of the AGV L1 is its adaptability in constrained spaces. With a device height of just 340 mm, the robot is adept at maneuvering beneath pallets or lattice boxes while accommodating loads weighing up to 1,500 kg. Its load-handling mechanism, which involves four lifting bolts, ensures secure and efficient transportation. Optional RFID readers further enhance its capabilities by identifying load specifics.

Functioning as a towing vehicle, the AGV L1 demonstrates its strength by moving trolleys and trailers with a maximum weight capacity of 3,000 kg. On the operational front, the robot is equipped with WLAN communication for seamless interaction with other AGVs and peripheral systems. This connectivity is facilitated through the utilization of the company's agent-based control software, IntelliAgent. Notably, the AGV L1 benefits from swarm intelligence, eliminating the need for a higher-level control center and enabling coordinated actions among SAFELOG robots. This advanced feature contributes to their autonomy and efficiency in industrial automation processes.

Application
  • Agriculture
  • Cleaning and maintenance
  • Delivery
  • Material handling
  • Picking and Packing
  • Security and surveillance
  • Transportation
Industry
  • Agriculture
  • Healthcare
  • Logistics
  • Manufacturing
  • Mining
  • Retail
  • Warehousing
Charge time 4 hr
Speed 1 m/s
Type of Technology
  • ACR
  • AGV
  • AMR
  • IMR
Product mass 280 kg
Payload 1500 kg

AGV L1 Alternatives

See all 222 Mobile Robots

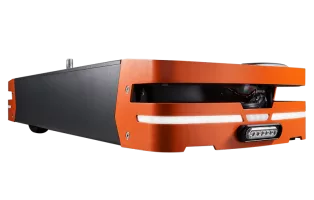

SAFELOG AGV M4
Product mass 235kg
No reviews yet.
The SAFELOG AGV M4 transport robot, an evolution of the AGV M3, stands out for its diverse applications. With its reduced height of 220 mm (a 15 percent reduction), it effortlessly navigates beneath a wide range of trailers and trolleys available in the market.Featuring an innovative system of lifting bolts and snap latches, the AGV M4 boasts automatic coupling and uncoupling capabilities, further augmented by an RFID reader for material supply trolley identification. With a substantial towing capacity of 1,500 kg, the robot can efficiently transport heavy loads. In its standard configuration, the AGV M4 handles top loads of up to 200 kg. The robot's robust steel chassis is rated IP54, offering protection against dust and water splashes.Powered by a newly developed brushless DC motor, the AGV M4 achieves higher starting torque, allowing it to reach speeds ranging from 0.02 m/s to 1.6 m/s. Leveraging intelligent, agent-based control, the robot communicates seamlessly with other transport robots and peripheral systems. Notably, its swarm intelligence capabilities eliminate the need for a higher-level control center, while interfaces for control center connections, including VDA 5050, are readily available, enhancing its adaptability in industrial automation workflows.
KUMATECH Lifting Jim
AGV | Payload 1500kg | Product mass 1200kg
No reviews yet.
To built an AGV which is able to lift 3 meters high and is still compact we developed Lifting Jim. Compared to Forklift Joe this AGV has 2 legs under the pallet which take care for the stability. With those legs it`s not necessary to add additional weight at the back like the counterweight Forklift Joe, therefor we are able to built much more compact. Lifting Jim uses the same navigation platform as his brothers with same advantages. Lifting till 2mCompactMax. 1500kgCompletely designed and built in-houseNavigation on floor structure, no adjustments to the building needed!Remote Access (connected vehicles)
Wellwit Robotics W500SL Under Ride Lifting AGV
AGV | Payload 500kg | Product mass 220kg
No reviews yet.
The Wellwit Robotics W500SL Under Ride Lifting AGV is a highly advanced autonomous guided vehicle designed for material handling applications in manufacturing and logistics industries. This AGV features the latest LiDAR SLAM navigation technology, which enables the vehicle to navigate and operate autonomously in complex environments. This technology uses lasers to map and create a 3D image of the AGV's surroundings, allowing it to avoid obstacles and navigate through tight spaces with ease. The LiDAR SLAM navigation system also allows for real-time localization and mapping, ensuring the AGV can quickly adapt to changes in its environment.One of the key features of the Wellwit Robotics W500SL Under Ride Lifting AGV is its impressive 500 kg payload capacity. This makes it an ideal solution for material handling tasks that require heavy lifting and transport, such as moving large crates or pallets of goods. The AGV is equipped with a high-strength lift mechanism that can easily handle heavy loads, and its compact size and maneuverability make it ideal for use in tight spaces such as factory floors or warehouses.In addition to its impressive payload capacity, the Wellwit Robotics W500SL Under Ride Lifting AGV also offers a high level of safety and reliability. The AGV is designed with multiple safety features, including a laser safety scanner that ensures the AGV can detect and avoid obstacles in its path. The AGV also features a robust collision avoidance system that can detect and respond to potential collisions, ensuring that the AGV can safely navigate around other vehicles or objects in its environment.Overall, the Wellwit Robotics W500SL Under Ride Lifting AGV is an advanced and highly capable autonomous guided vehicle that is ideal for material handling applications in manufacturing and logistics industries. Its LiDAR SLAM navigation technology and 500 kg payload capacity make it a valuable asset for any business looking to improve their efficiency and productivity. With its advanced safety features and reliability, this AGV is a powerful tool for streamlining operations and reducing costs.
Neobotix MPO-700
AGV | Payload 400kg | Product mass 120kg
No reviews yet.
The omnidirectional MPO-700 is the ideal basis for high-end service robots. Its four Omni-Drive-Modules enable it to make smooth journeys in all directions. In addition it combines the advantages of classic wheels with the surface mobility otherwise only offered by Mecanum wheels. The MPO-700's Omni-Drive-Mmodules offer important advantages compared to other omnidirectional drive systems, such as the MPO-500's Mecanum wheels. The modules are also controlled by ROS.

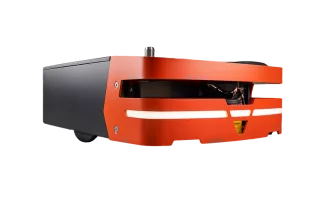

SAFELOG AGV S3
