YAMAHA Double Y axes type Specifications

Write a review!

Ranked Nr. 3 of 36 Cartesian (Gantry) Robots

Add to comparison

Yamaha's Double Y-axis type is a compact Cartesian robot that combines two robots into a single unit. This design is ideal for applications that require synchronized motion on two axes, such as pick-and-place operations, material handling, and assembly.

The Double Y-axis type robot has four or six axes, depending on the specific model. The four-axis version consists of two X-axis stages and two Y-axis stages, while the six-axis version adds two Z-axis stages to the design.

The Double Y-axis type robot is designed to be highly versatile and customizable, with a range of options for stroke length, maximum speed, and maximum payload. The robot's maximum speed ranges from 200 mm/s to 1000 mm/s, depending on the model, and the maximum payload ranges from 5 kg to 30 kg, making it suitable for a variety of applications across different industries.

Choose your model:

Arm type Payload 40kg Moving arm type Payload 30kg Gantry type Payload 50kg Pole type Payload 30kg XZ type Payload 14kg Shaft up/down type Payload 5kg Double Y axes type Payload 25kg


Max. Stroke	1750 mm
Payload	25 kg
Number of Axis	6

Double Y axes type Alternatives

See all 47 Cartesian (Gantry) Robots

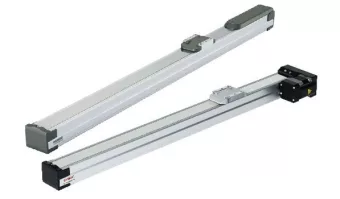

YAMAHA Cartesian robot SS series (Slider type)

Payload 2-12 kg

No reviews yet.

Yamaha's Cartesian robot SS series (Slider type) is a high-performance, versatile robot that is designed to handle a wide range of industrial applications. One of the key features of the SS series is its closed-loop control system, which ensures that there is no step-out during operation. This means that the robot is able to achieve precise and accurate positioning without any loss of steps, which is critical in applications where precision is essential.The SS series also features a newly developed control system that ensures constant torque at all times. This system combines the best features of servo and stepping motors, providing the same functions as a servo motor while using a lower cost stepping motor. This results in a more energy-efficient system that saves on power consumption and reduces CO2 emissions.With a stroke range of 50 to 800mm and a maximum speed of 250 to 1000mm/sec, the SS series is capable of handling a wide range of tasks quickly and efficiently. It has a maximum payload capacity of 2 to 12kg in the horizontal position, making it ideal for handling a variety of materials.The SS series also features a slider type design, which is ideal for applications that require long service life. The 4-row circular-groove 2-point contact guide ensures minimal ball differential slip, even with large momentum loads or poor installation surface accuracy. This rugged design helps to minimize breakdowns and ensure long service life.In addition, the SS series offers high-speed operation, which helps to reduce production time and improve productivity. By combining the advantages of the vector control method with high-lead ball screws, the SS series is able to achieve a maximum speed of 1 meter per second, which is faster than any single-axis servo motor.Yamaha has also recently added space-saving models to the SS series lineup, which allows for more efficient layout and design. These models are able to reduce the overall length by up to 143.5mm, thanks to the use of a folding motor design.Finally, the SS series offers excellent maintenance ability, thanks to its easy-to-detach belt cover and clean type electric cylinders that are suitable for use in clean room environments. Overall, the Yamaha SS series Cartesian robot is an excellent choice for industrial applications that require precise, accurate, and efficient handling of materials.

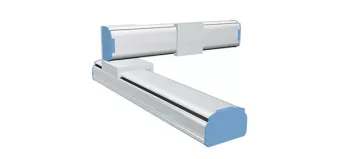

YAMAHA Arm type
