YAMAHA GX10 Specifications

No reviews yet.
Write a review!

Ranked Nr. 10 of 33 Linear Motion Systems

See all 33 Linear Motion Systems

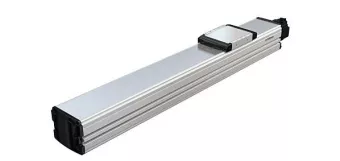

Yamaha's GX10 series is a linear motor stage that comes with ground ball screws as a standard feature. All models comply with JIS Standard accuracy class C5, ensuring high precision and accuracy in positioning. The GX10 series has a positioning accuracy repeatability of ±5µm, which makes it suitable for applications that require high-precision positioning.

The GX10 series has a stroke range of 100 mm to 1250 mm, which makes it suitable for various applications. The compact design of the GX10 series makes it an ideal choice for applications where space is limited. The linear motor stage is capable of handling loads up to 70 kg and can achieve maximum speeds of up to 1000 mm/s.

The GX10 series is commonly used in applications that require high-precision and high-speed positioning, such as semiconductor manufacturing, inspection equipment, and laser processing. Its high-speed capabilities make it a great choice for applications that require fast and precise movements, while its precision and accuracy make it suitable for applications that require tight tolerances.

Choose your model:
GX05 Max. Stroke 800mm | Vertical Payload 8kg | Horizontal Payload 13kg GX05L Max. Stroke 800mm | Vertical Payload 12kg | Horizontal Payload 32kg GX07 Max. Stroke 1100mm | Vertical Payload 16kg | Horizontal Payload 85kg GX10 Max. Stroke 1250mm | Vertical Payload 30kg | Horizontal Payload 100kg GX12 Max. Stroke 1250mm | Vertical Payload 45kg | Horizontal Payload 115kg GX16 Max. Stroke 1450mm | Vertical Payload 55kg | Horizontal Payload 130kg GX20 Max. Stroke 1450mm | Vertical Payload 65kg | Horizontal Payload 160kg
Min. Stroke 100 mm
Max. Stroke 1250 mm
Horizontal Payload 100 kg
Vertical Payload 30 kg
