YAMAHA Large type SCARA robots YK-XG Specifications

No reviews yet.

Write a review!

Ranked Nr. 1 of 163 SCARA Robots

See all 163 SCARA Robots

Add to comparison

01 Internal structure achieving the high-rigidity and high-accuracy.

02 Completely beltless structure

A totally beltless structure was achieved by using a ZR axis direct coupling structure. This direct drive structure drastically reduces wasted motion. It also maintains high accuracy over a long period of time. It ensure maintenance-free usage for extended periods with no worries about belt breakage, stretching or deterioration with age (feature applies to all XG series models and the YK180X/YK220X).

03 High speed

The standard cycle time is fast of course but the YAMAHA design also stresses tact time in the actual usage region. A drastic improvement in maximum speed was made by changing the gear ratio and maximum motor rpm. This also resulted in a better tact time during long distance movement.

04 Improved maintenance features

The covers on the YAMAHA SCARA robot YK-XG series can be removed from the front or upwards. The cover is separate from the cable so maintenance tasks are easy.
On ordinary robots replacing the grease on the harmonic gear takes a great deal of time and trouble because the gear must be disassembled and position deviations might occur. On YAMAHA SCARA robots however the harmonic gear is the grease-sealed type so no grease replacement is needed (YK-500XG to YK1000XG).

05 Robot R axis inertia moment capacity

SCARA robot performance is not limited to just standard cycle time. Actual work situations include a diverse range of heavy work pieces as well as work with large offsets. Using a low R axis inertia moment in those cases will help drastically cut the cycle time. All YAMAHA SCARA robots have a speed reducer directly coupled to the tip of the rotating axis. The R axis produces an extremely high allowable inertia moment which delivers high speed operation compared to structures where positioning is usually done by a belt after decelerating.

R axis allowable inertia moment : Comparing YK120XG with competitor's models

A large inertia is generated when the offset from the R axis to the load center is large and this can severely restrict the acceleration during operation.
The allowable inertia moment on the YAMAHA XG series is exceedingly large compared to other company SCARA robots in the same class and so can operate at high speed even with a work offset.

Figures when using 1kg load (see view at upper right)

R axis allowable inertia moment : Comparing YK120XG with competitor's models

06 Compact

Changing the cable layout made the overall cable height lower than the unit cover.
Also, utilizing a motor with a small overall length and extrusion material base yielded the smallest dimensions among equipment in the same class.

07 Environmentally rugged resolver provides closed loop control

The position detector is a resolver. The resolver has a simple yet strong structure using not electronic components or elements and so has great features such as being extremely tough in harsh environments as well as a low breakdown rate. The resolver structure has none of the detection problems that occur in other detectors such as optical encoders whose electronic components breakdown or suffer from moisture or oil that sticks to the disk. Moreover, mechanical specifications for both absolute and incremental specifications are common to all controllers so one can switch to either absolute or incremental specifications just by setting a parameter.
Also even if the absolute battery is completely worn down, the SCARA can operate on incremental specifications so in the unlikely event of trouble one can feel secure knowing that there will be no need to stop the production line. The backup circuit has been completely renovated and now has a backup period extending to 1 year.

Note. The resolver has a simple structure not using electronic components at all. It is highly resistant to low and high temperatures, impacts, electrical noise, dust particles, oil, etc. and is used in automobiles, trains, and airplanes.

08 Zone control (=Automatically sets the maximum acceleration/deceleration) function

On SCARA robots there is a large difference in the load applied to the motor and the speed reducer depending on whether the robot arm is folded or extended. YAMAHA SCARA robots however can automatically set an optimal maximum acceleration and deceleration using the arm status when starting operation and the arm status when ending operation. This capability means that just entering the initial payload will prevent the robot from exceeding tolerance values for motor peak torque and speed reducer allowable peak torque. So full power can be extracted from the motor whenever needed and a high level of acceleration/deceleration maintained.

Zone control (=Automatically sets the maximum acceleration/deceleration) function

Note. A motor torque that exceeds the peak value will cause bad effects on robot controllability and cause mechanical vibration. Also, exceeding the speed reducer allowable peak torque value will cause early stage robot breakdowns and lead to a drastic drop in the robot service life span.

09 Hollow shaft and tool flange options are selectable

Useful options include a hollow shaft for easy wiring to the tip tool and a tool flange for tool clamping.

*YK250XG/YK350XG/YK400XG/YK500XGL/YK600XGL

Hollow shaft and tool flange options are selectable

10 History of 30 years

The first YAMAHA robots were SCARA robots. Since the first SCARA robot called "CAME" was produced in 1979, some 30 years of SCARA robot innovations have continually appeared. These SCARA robots have undergone countless modifications in an everchanging marketplace and amassed a hefty record of successful products making them an essential part of the YAMAHA robot lineup.

Choose your model:

Orbit type YK350TW/YK500TW Reach 350-500 mm | Payload 4-5 kg Tiny SCARA robots - Extra small Reach 120-220 mm | Payload 1-5 kg Small type SCARA robots YK-XG Reach 250-400 mm | Payload 5kg Low cost high performance SCARA Robot YK-XE Reach 400-710 mm | Payload 4-10 kg Medium type SCARA robots YK-XG Reach 500-600 mm | Payload 5-20 kg Large type SCARA robots YK-XG Reach 700-1200 mm | Payload 10-50 kg Wall-mount and inverse type SCARA robots Reach 300-1000 mm | Payload 3-20 kg Dust-proof and drip-proof SCARA robots Reach 250-1000 mm | Payload 5-18 kg

Horizontal Reach	700-1200 mm
Payload	10-50 kg

Large type SCARA robots YK-XG Downloads

YK700 XGL

Yk900xg

Yk700xg

Yk1000xg

Yk800xg

Yk1200x

Large type SCARA robots YK-XG Alternatives

See all 217 SCARA Robots

YAMAHA Small type SCARA robots YK-XG

Reach 250-400 mm | Payload 5kg

No reviews yet.

FEATURES:01. Internal structure achieving the high-rigidity and high-accuracy. 02. Completely beltless structure A totally beltless structure was achieved by using a ZR axis direct coupling structure. This direct drive structure drastically reduces wasted motion. It also maintains high accuracy over a long period of time. It ensure maintenance-free usage for extended periods with no worries about belt breakage, stretching or deterioration with age (feature applies to all XG series models and the YK180X/YK220X). 03. High Speed The standard cycle time is fast of course but the YAMAHA design also stresses tact time in the actual usage region. A drastic improvement in maximum speed was made by changing the gear ratio and maximum motor rpm. This also resulted in a better tact time during long distance movement. 04. Improved maintenance features The covers on the YAMAHA SCARA robot YK-XG series can be removed from the front or upwards. The cover is separate from the cable so maintenance tasks are easy.On ordinary robots replacing the grease on the harmonic gear takes a great deal of time and trouble because the gear must be disassembled and position deviations might occur. On YAMAHA SCARA robots however the harmonic gear is the grease-sealed type so no grease replacement is needed (YK-500XG to YK1000XG).05. Robot R axis inertia moment capacity SCARA robot performance is not limited to just standard cycle time. Actual work situations include a diverse range of heavy work pieces as well as work with large offsets. Using a low R axis inertia moment in those cases will help drastically cut the cycle time. All YAMAHA SCARA robots have a speed reducer directly coupled to the tip of the rotating axis. The R axis produces an extremely high allowable inertia moment which delivers high speed operation compared to structures where positioning is usually done by a belt after decelerating. R axis allowable inertia moment : Comparing YK120XG with competitor's models A large inertia is generated when the offset from the R axis to the load center is large and this can severely restrict the acceleration during operation.The allowable inertia moment on the YAMAHA XG series is exceedingly large compared to other company SCARA robots in the same class and so can operate at high speed even with a work offset. 06. Compact Changing the cable layout made the overall cable height lower than the unit cover.Also, utilizing a motor with a small overall length and extrusion material base yielded the smallest dimensions among equipment in the same class. 07. Environmentally rugged resolver provides closed loop control The position detector is a resolver. The resolver has a simple yet strong structure using not electronic components or elements and so has great features such as being extremely tough in harsh environments as well as a low breakdown rate. The resolver structure has none of the detection problems that occur in other detectors such as optical encoders whose electronic components breakdown or suffer from moisture or oil that sticks to the disk. Moreover, mechanical specifications for both absolute and incremental specifications are common to all controllers so one can switch to either absolute or incremental specifications just by setting a parameter.Also even if the absolute battery is completely worn down, the SCARA can operate on incremental specifications so in the unlikely event of trouble one can feel secure knowing that there will be no need to stop the production line. The backup circuit has been completely renovated and now has a backup period extending to 1 year. Note. The resolver has a simple structure not using electronic components at all. It is highly resistant to low and high temperatures, impacts, electrical noise, dust particles, oil, etc. and is used in automobiles, trains, and airplanes.08. Zone control (=Automatically sets the maximum acceleration/deceleration) function On SCARA robots there is a large difference in the load applied to the motor and the speed reducer depending on whether the robot arm is folded or extended. YAMAHA SCARA robots however can automatically set an optimal maximum acceleration and deceleration using the arm status when starting operation and the arm status when ending operation. This capability means that just entering the initial payload will prevent the robot from exceeding tolerance values for motor peak torque and speed reducer allowable peak torque. So full power can be extracted from the motor whenever needed and a high level of acceleration/deceleration maintained. Note.A motor torque that exceeds the peak value will cause bad effects on robot controllability and cause mechanical vibration. Also, exceeding the speed reducer allowable peak torque value will cause early stage robot breakdowns and lead to a drastic drop in the robot service life span. 09. Hollow shaft and tool flange options are selectable Useful options include a hollow shaft for easy wiring to the tip tool and a tool flange for tool clamping. * YK250XG/YK350XG/YK400XG/YK500XGL/YK600XGL 10. History of 30 years The first YAMAHA robots were SCARA robots. Since the first SCARA robot called "CAME" was produced in 1979, some 30 years of SCARA robot innovations have continually appeared. These SCARA robots have undergone countless modifications in an everchanging marketplace and amassed a hefty record of successful products making them an essential part of the YAMAHA robot lineup.

YAMAHA Tiny SCARA robots - Extra small

Reach 120-220 mm | Payload 1-5 kg

No reviews yet.

FEATURES:01. Internal structure achieving the high-rigidity and high-accuracy. 02. Completely beltless structureA totally beltless structure was achieved by using a ZR axis direct coupling structure. This direct drive structure drastically reduces wasted motion. It also maintains high accuracy over a long period of time. It ensure maintenance-free usage for extended periods with no worries about belt breakage, stretching or deterioration with age (feature applies to all XG series models and the YK180X/YK220X). 03. High SpeedThe standard cycle time is fast of course but the YAMAHA design also stresses tact time in the actual usage region. A drastic improvement in maximum speed was made by changing the gear ratio and maximum motor rpm. This also resulted in a better tact time during long distance movement. 04. Improved maintenance featuresThe covers on the YAMAHA SCARA robot YK-XG series can be removed from the front or upwards. The cover is separate from the cable so maintenance tasks are easy.On ordinary robots replacing the grease on the harmonic gear takes a great deal of time and trouble because the gear must be disassembled and position deviations might occur. On YAMAHA SCARA robots however the harmonic gear is the grease-sealed type so no grease replacement is needed (YK-500XG to YK1000XG).05. Robot R axis inertia moment capacitySCARA robot performance is not limited to just standard cycle time. Actual work situations include a diverse range of heavy work pieces as well as work with large offsets. Using a low R axis inertia moment in those cases will help drastically cut the cycle time. All YAMAHA SCARA robots have a speed reducer directly coupled to the tip of the rotating axis. The R axis produces an extremely high allowable inertia moment which delivers high speed operation compared to structures where positioning is usually done by a belt after decelerating. R axis allowable inertia moment : Comparing YK120XG with competitor's modelsA large inertia is generated when the offset from the R axis to the load center is large and this can severely restrict the acceleration during operation.The allowable inertia moment on the YAMAHA XG series is exceedingly large compared to other company SCARA robots in the same class and so can operate at high speed even with a work offset. 06. CompactChanging the cable layout made the overall cable height lower than the unit cover.Also, utilizing a motor with a small overall length and extrusion material base yielded the smallest dimensions among equipment in the same class. 07. Environmentally rugged resolver provides closed loop controlThe position detector is a resolver. The resolver has a simple yet strong structure using not electronic components or elements and so has great features such as being extremely tough in harsh environments as well as a low breakdown rate. The resolver structure has none of the detection problems that occur in other detectors such as optical encoders whose electronic components breakdown or suffer from moisture or oil that sticks to the disk. Moreover, mechanical specifications for both absolute and incremental specifications are common to all controllers so one can switch to either absolute or incremental specifications just by setting a parameter.Also even if the absolute battery is completely worn down, the SCARA can operate on incremental specifications so in the unlikely event of trouble one can feel secure knowing that there will be no need to stop the production line. The backup circuit has been completely renovated and now has a backup period extending to 1 year. Note. The resolver has a simple structure not using electronic components at all. It is highly resistant to low and high temperatures, impacts, electrical noise, dust particles, oil, etc. and is used in automobiles, trains, and airplanes.08. Zone control (=Automatically sets the maximum acceleration/deceleration) functionOn SCARA robots there is a large difference in the load applied to the motor and the speed reducer depending on whether the robot arm is folded or extended. YAMAHA SCARA robots however can automatically set an optimal maximum acceleration and deceleration using the arm status when starting operation and the arm status when ending operation. This capability means that just entering the initial payload will prevent the robot from exceeding tolerance values for motor peak torque and speed reducer allowable peak torque. So full power can be extracted from the motor whenever needed and a high level of acceleration/deceleration maintained. Note.A motor torque that exceeds the peak value will cause bad effects on robot controllability and cause mechanical vibration. Also, exceeding the speed reducer allowable peak torque value will cause early stage robot breakdowns and lead to a drastic drop in the robot service life span.09. Hollow shaft and tool flange options are selectable Useful options include a hollow shaft for easy wiring to the tip tool and a tool flange for tool clamping. * YK250XG/YK350XG/YK400XG/YK500XGL/YK600XGL 10. History of 30 yearsThe first YAMAHA robots were SCARA robots. Since the first SCARA robot called "CAME" was produced in 1979, some 30 years of SCARA robot innovations have continually appeared. These SCARA robots have undergone countless modifications in an everchanging marketplace and amassed a hefty record of successful products making them an essential part of the YAMAHA robot lineup.

YAMAHA Medium type SCARA robots YK-XG

Reach 500-600 mm | Payload 5-20 kg

No reviews yet.

Completely beltless structure with the tip rotation axis directly connected to the speed reduction gear.This ensures high-accuracy, high-speed, excellent maintenance ability, and amazing tolerable moment of inertia.01 Internal structure achieving the high-rigidity and high-accuracy. 02 Completely beltless structure A totally beltless structure was achieved by using a ZR axis direct coupling structure. This direct drive structure drastically reduces wasted motion. It also maintains high accuracy over a long period of time. It ensure maintenance-free usage for extended periods with no worries about belt breakage, stretching or deterioration with age (feature applies to all XG series models and the YK180X/YK220X). 03 High speed The standard cycle time is fast of course but the YAMAHA design also stresses tact time in the actual usage region. A drastic improvement in maximum speed was made by changing the gear ratio and maximum motor rpm. This also resulted in a better tact time during long distance movement. 04 Improved maintenance features The covers on the YAMAHA SCARA robot YK-XG series can be removed from the front or upwards. The cover is separate from the cable so maintenance tasks are easy.On ordinary robots replacing the grease on the harmonic gear takes a great deal of time and trouble because the gear must be disassembled and position deviations might occur. On YAMAHA SCARA robots however the harmonic gear is the grease-sealed type so no grease replacement is needed (YK-500XG to YK1000XG).05 Robot R axis inertia moment capacity SCARA robot performance is not limited to just standard cycle time. Actual work situations include a diverse range of heavy work pieces as well as work with large offsets. Using a low R axis inertia moment in those cases will help drastically cut the cycle time. All YAMAHA SCARA robots have a speed reducer directly coupled to the tip of the rotating axis. The R axis produces an extremely high allowable inertia moment which delivers high speed operation compared to structures where positioning is usually done by a belt after decelerating. R axis allowable inertia moment : Comparing YK120XG with competitor's models A large inertia is generated when the offset from the R axis to the load center is large and this can severely restrict the acceleration during operation.The allowable inertia moment on the YAMAHA XG series is exceedingly large compared to other company SCARA robots in the same class and so can operate at high speed even with a work offset. Figures when using 1kg load (see view at upper right) 06 Compact Changing the cable layout made the overall cable height lower than the unit cover.Also, utilizing a motor with a small overall length and extrusion material base yielded the smallest dimensions among equipment in the same class. 07 Environmentally rugged resolver provides closed loop control The position detector is a resolver. The resolver has a simple yet strong structure using not electronic components or elements and so has great features such as being extremely tough in harsh environments as well as a low breakdown rate. The resolver structure has none of the detection problems that occur in other detectors such as optical encoders whose electronic components breakdown or suffer from moisture or oil that sticks to the disk. Moreover, mechanical specifications for both absolute and incremental specifications are common to all controllers so one can switch to either absolute or incremental specifications just by setting a parameter.Also even if the absolute battery is completely worn down, the SCARA can operate on incremental specifications so in the unlikely event of trouble one can feel secure knowing that there will be no need to stop the production line. The backup circuit has been completely renovated and now has a backup period extending to 1 year. Note. The resolver has a simple structure not using electronic components at all. It is highly resistant to low and high temperatures, impacts, electrical noise, dust particles, oil, etc. and is used in automobiles, trains, and airplanes.08 Zone control (=Automatically sets the maximum acceleration/deceleration) function On SCARA robots there is a large difference in the load applied to the motor and the speed reducer depending on whether the robot arm is folded or extended. YAMAHA SCARA robots however can automatically set an optimal maximum acceleration and deceleration using the arm status when starting operation and the arm status when ending operation. This capability means that just entering the initial payload will prevent the robot from exceeding tolerance values for motor peak torque and speed reducer allowable peak torque. So full power can be extracted from the motor whenever needed and a high level of acceleration/deceleration maintained. Note.A motor torque that exceeds the peak value will cause bad effects on robot controllability and cause mechanical vibration. Also, exceeding the speed reducer allowable peak torque value will cause early stage robot breakdowns and lead to a drastic drop in the robot service life span.09 Hollow shaft and tool flange options are selectable Useful options include a hollow shaft for easy wiring to the tip tool and a tool flange for tool clamping. *YK250XG/YK350XG/YK400XG/YK500XGL/YK600XGL 10 History of 30 years The first YAMAHA robots were SCARA robots. Since the first SCARA robot called "CAME" was produced in 1979, some 30 years of SCARA robot innovations have continually appeared. These SCARA robots have undergone countless modifications in an everchanging marketplace and amassed a hefty record of successful products making them an essential part of the YAMAHA robot lineup.

YAMAHA Low cost high performance SCARA Robot YK-XE

Reach 400-710 mm | Payload 4-10 kg

No reviews yet.

01 Optimal for transfer and assembly of automotive parts Note. For YK610XE-10 and YK710XE-10 02 Improvement of productivity by high-speed operation By reviewing the arm structure, the vibration is reduced and the motion is optimized to shorten the standard cycle time. High-speed, less-vibration, and agile operation contributes to improvement of the productivity. Note. For YK610XE-10 Standard Cycle time 03 For a wide variety of applications Maximum payload 4kg to 10kg Assembly Packaging Palletizing Sorting Inspection Labelling Soldering The models support a wide variety of fields such as assembly work that requires a high precision or food sorting work that requires a high-speed operation. As the maximum payload is 10 kg, heavy workpieces such as automotive parts can also be supported. 04 Application Examples Palletizing Loading and unloading Assembly (or Pick & Place) Inspection 05 Affordable Price and Improved Performance Both the high operation performance and affordable price are achieved. Production equipment with high cost performance can be constructed. 06 Improved User Interface Enhanced size and numbers of air tubes and user I/O for end effectors. Tubes and wires are positioned for easy layout and reduced risk of disconnection. (YK610XE-10 and YK710XE-10) * YK400XE-4 provides the user wiring x 10 cores and the User tubing φ4 x 3 pcs. 07 In Yamaha YK-XE series Acceleration/Deceleration is optimized automatically The optimal acceleration and deceleration are automatically selected from the arm posture at the time of operation start and the arm posture at the time of operation end. The motor peak torque or the tolerable peak torque of the speed reducer is not exceeded by inputting only three parameters*. The full power of the motor is always output to maintain the high acceleration/deceleration.* Payload, R-axis moment of inertia, and offset amount of R-axis moment of inertia 08 Through-shaft and through-cap have been added. NEW (Option specifications) “Through-shaft” or “through-cap” option for wiring and tubing that is convenient to run the air tubing and wiring can be selected. The wiring and tubing routes can be investigated easily without designing and manufacturing a stay for installing the wiring and tubing. In addition, by passing the wiring and tubing through the inside of the main body, worries about wire breakage or disconnection are reduced during operation. (Only through-shaft is available in YK400XE-4.) 09 Brake release switch is selectable. NEW (Option specifications) In the emergency stop state, the Z-axis brake is released and the Z-axis can be moved up or down while the brake release switch is held down. Releasing the switch applies the brake to the Z-axis. This improves the convenience during installation adjustment. 10 Drop-In upgrade by common platform design The installation position of the YK400XE-4 is fully compatible with that of the conventional model YK400XR.This ensures easy replacement work. 11 Easier operation in combination with the RCX340 controller RCX340 comprehensive controller brings out maximum potential of YK400XE robot system. Optional integrated vision system “iVY2” provides simplified image processing. Choice of PC Programming Software or Teaching Pendant available. 12 Simple and Easy integration of Vision System Robot controller with vision and gripper interface 13 Compatible with various field networks The robot is compatible with full field networks such as CC-Link, EtherNet/IP™, DeviceNet™, PROFIBUS, PROFINET, and EtherCAT. 14 Reliability backed by 43-year experience of SCARA robot development Originally developed in-house to provide durable and accurate motion control in harsh environment of motorcycle manufacturing, Yamaha SCARA robot has been “road tested” and proven over 43 years in various fields.* The product release was 1984.

YAMAHA Orbit type YK350TW/YK500TW

Reach 350-500 mm | Payload 4-5 kg

No reviews yet.

Resolves the shortcomings of previous SCARA and parallel-link robots. Offers both superior positioning accuracy and high speed. YAMAHA'S Next-Generation SCARA Robot: The YK-TW Omnidirectional 01 User: We want a smaller equipment footprint. Layout design freedomThe YK-TW can move anywhere through the full 1000 mm* downward range.Featuring a ceiling-mount configuration with a wide arm rotation angle, the YK-TW can access any point within the full 1000 mm downward range. This eliminates all motion-related restrictions with regard to pallet and conveyor placement operations, while dramatically reducing the equipment footprint.* Applies to the YK500TW Underpass motionOptimize use of the space right below the main unit Improvement of productivity The standard cycle time for moving 1-kg load horizontally 300 mm and up/down 25 mm is shortened by approximately 36 % compared to existing YAMAHA models.* Measurement may vary depending on conditions. 02 User: We want a higher quality assembly system. Higher qualityThe YK-TW offers a repeated positioning accuracy of +/-0.01 mm* (XY axes). This is a much higher repeated positioning accuracy than that offered by a parallel-link robot. This was accomplished by optimizing the robot's weight balance through an extensive re-design of its internal construction. The lightweight yet highly rigid arm has also been fitted with optimally tuned motors to enable high accuracy positioning.* Applies to the YK350TW 03 User: We need to reduce our tact times. Higher productivity The YK-TW offers a standard cycle time of 0.29 secs* The Y-axis (arm 2) passes beneath the X-axis (arm 1) and it has a horizontal articulated structure, allowing it to move along the optimal path between points. Moreover, the optimized weight balance of the internal components reduces the cycle time by 36 % as compared to previous models.* Applies to the YK500TW The standard cycle time for moving a 1-kg load horizontally 300 mm and up/down 25 mm is shortened by approx. 36 % compared to previous YAMAHA models. 04 User: We need to move heavy workpieces at high speeds. Suitable for a wide range of applications The YK-TW can handle workpieces weighing up to 5 kg. Handles loads up to 5 kg. Also accommodates arm-end tools which tend to be heavy, making it highly adaptable to various applications. 05 User: We want to reduce the height of our equipment. Smaller equipment footprint The YK-TW offers both a low height and a small footprint. The YK-TW height is only 392 mm. This compact size enables more freedom in the equipment layout design. 06 User: Parallel-link robots require large frames which complicate installation… Easy installation The YK-TW has a total height of only 392 mm, and weighs only 27 kg*. Due to its low inertia, a sturdy frame is not required. * Applies to the YK500TW An optional dedicated installation frame is available for the YK-TW. For details, contact a YAMAHA sales representative. 07 Preparing an installation stand is too much bother. A dedicated stand is availableSetup can be simplified As an option, we provide a dedicated installation stand for the YK-TW.* There's no need to calculate strength, so setup can be simplified.* Contact Yamaha for details on dimensions and price. 08 User: Operating our equipment in stringent environments is worrisome… Environment resistantThe YK-TW features the same type of resolver as those used in hybrid automobiles and aircraft. This resolver is a magnetic position sensor. It features a simple construction with no electronic or optical parts, making it far less susceptible to failure than conventional optical encoders. It is this superior environment resistance and low failure rate that makes it reliable enough for use in many fields such as hybrid automobiles and aircraft, etc., where reliability is essential.

YAMAHA Wall-mount and inverse type SCARA robots

Reach 300-1000 mm | Payload 3-20 kg

No reviews yet.

As the ceiling installation or the wall installation is used, the robot installation space that could not be used conventionally can be utilized efficiently.01 Hanging type is renewed. Completely beltless structure and high rigidity As the conventional hanging type is changed to the wall mount type, the flexibility of the system design is improved. The production equipment can be downsized. Additionally, as an inverse type that allows upward operation is also added to the product lineup, the flexibility of the working direction is widened. Furthermore, use of a completely beltless structure achieves a maximum payload of 20 kg and a R-axis tolerable moment of inertia of 1 kgm2* that are the top in the class. A large hand can also be installed. So, this robot is suitable for heavy load work. *YK700XGS to YK1000XGS 02 Internal structure achieving the high-rigidity and high-accuracy. 03 Completely beltless structure A totally beltless structure was achieved by using a ZR axis direct coupling structure. This direct drive structure drastically reduces wasted motion. It also maintains high accuracy over a long period of time. It ensure maintenance-free usage for extended periods with no worries about belt breakage, stretching or deterioration with age (feature applies to all XG series models and the YK180X/YK220X). 04 High speed The standard cycle time is fast of course but the YAMAHA design also stresses tact time in the actual usage region. A drastic improvement in maximum speed was made by changing the gear ratio and maximum motor rpm. This also resulted in a better tact time during long distance movement. 05 Improved maintenance features The covers on the YAMAHA SCARA robot YK-XG series can be removed from the front or upwards. The cover is separate from the cable so maintenance tasks are easy.On ordinary robots replacing the grease on the harmonic gear takes a great deal of time and trouble because the gear must be disassembled and position deviations might occur. On YAMAHA SCARA robots however the harmonic gear is the grease-sealed type so no grease replacement is needed (YK-500XG to YK1000XG). 06 Robot R axis inertia moment capacitySCARA robot performance is not limited to just standard cycle time. Actual work situations include a diverse range of heavy work pieces as well as work with large offsets. Using a low R axis inertia moment in those cases will help drastically cut the cycle time. All YAMAHA SCARA robots have a speed reducer directly coupled to the tip of the rotating axis. The R axis produces an extremely high allowable inertia moment which delivers high speed operation compared to structures where positioning is usually done by a belt after decelerating. R axis allowable inertia moment : Comparing YK120XG with competitor's models A large inertia is generated when the offset from the R axis to the load center is large and this can severely restrict the acceleration during operation.The allowable inertia moment on the YAMAHA XG series is exceedingly large compared to other company SCARA robots in the same class and so can operate at high speed even with a work offset. Figures when using 1kg load (see view at upper right) 07 Compact Changing the cable layout made the overall cable height lower than the unit cover.Also, utilizing a motor with a small overall length and extrusion material base yielded the smallest dimensions among equipment in the same class. 08 Environmentally rugged resolver provides closed loop control The position detector is a resolver. The resolver has a simple yet strong structure using not electronic components or elements and so has great features such as being extremely tough in harsh environments as well as a low breakdown rate. The resolver structure has none of the detection problems that occur in other detectors such as optical encoders whose electronic components breakdown or suffer from moisture or oil that sticks to the disk. Moreover, mechanical specifications for both absolute and incremental specifications are common to all controllers so one can switch to either absolute or incremental specifications just by setting a parameter.Also even if the absolute battery is completely worn down, the SCARA can operate on incremental specifications so in the unlikely event of trouble one can feel secure knowing that there will be no need to stop the production line. The backup circuit has been completely renovated and now has a backup period extending to 1 year. Note. The resolver has a simple structure not using electronic components at all. It is highly resistant to low and high temperatures, impacts, electrical noise, dust particles, oil, etc. and is used in automobiles, trains, and airplanes.09 Zone control (=Automatically sets the maximum acceleration/deceleration) function On SCARA robots there is a large difference in the load applied to the motor and the speed reducer depending on whether the robot arm is folded or extended. YAMAHA SCARA robots however can automatically set an optimal maximum acceleration and deceleration using the arm status when starting operation and the arm status when ending operation. This capability means that just entering the initial payload will prevent the robot from exceeding tolerance values for motor peak torque and speed reducer allowable peak torque. So full power can be extracted from the motor whenever needed and a high level of acceleration/deceleration maintained. Note.A motor torque that exceeds the peak value will cause bad effects on robot controllability and cause mechanical vibration. Also, exceeding the speed reducer allowable peak torque value will cause early stage robot breakdowns and lead to a drastic drop in the robot service life span.10 Hollow shaft and tool flange options are selectable Useful options include a hollow shaft for easy wiring to the tip tool and a tool flange for tool clamping. *YK250XG/YK350XG/YK400XG/YK500XGL/YK600XGL 11 History of 30 years The first YAMAHA robots were SCARA robots. Since the first SCARA robot called "CAME" was produced in 1979, some 30 years of SCARA robot innovations have continually appeared. These SCARA robots have undergone countless modifications in an everchanging marketplace and amassed a hefty record of successful products making them an essential part of the YAMAHA robot lineup.

Epson G3 SCARA Robots - 350mm

Reach 150-350 mm | Repeatability 0mm | Payload 1-3 kg

4.6/5 (1)

The G3 SCARA Robot is a compact, powerful and low cost robot. Best in class cycle time and precision, tabletop, ceiling and wall mount models. A unique curved arm option, ISO clean & ESD compliant models.The G3 SCARA Robot is also available in 250mm and 300mm arm lengths Epson G3 robots lead the industry with best in class cycle time, precision and motion range. With over 30 models available in sizes from 250-350mm, Epson G3 robots are the robot of choice for high precision, high speed applications where performance AND low cost are required. G3 SCARA robots are ideal for applications such as hard drive assembly, lab automation, electronics assembly, medical device assembly, photonics, semiconductor, telecommunications, solar, and many others.Unique to the G-Series, is the new curved arm option which allows G3 arms to be purchased as right or left curved models to maximize work envelope usage while maintaining small workspace usage overall. G3 arms are available in 250, 300 and 350mm arm lengths and come with 150mm (120 clean) Z-Axis lengths. They are also available in table top, wall or ceiling mount configurations as well as Clean/ESD configurations. Lots of choices. A lot more Power of Choice.

EVS SCARA Robot EVS10-700H

Reach 700mm | Repeatability 0mm | Payload 5-10 kg

No reviews yet.

Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields

EVS SCARA Robot EVS6-700H

Reach 700mm | Repeatability 0mm | Payload 2-6 kg

No reviews yet.

EVS SCARA Robot EVS6-700U

Reach 700mm | Repeatability 0mm | Payload 2-6 kg

No reviews yet.

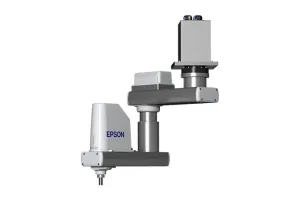

Epson RS4 SCARA Robots - 550mm
