Ranked Nr. 22 of 218 Cobots
Choose your model

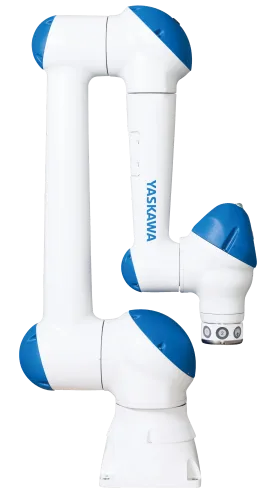

The MOTOMAN HC10DTP Classic is the perfect cobot for entry-level collaborative automation.

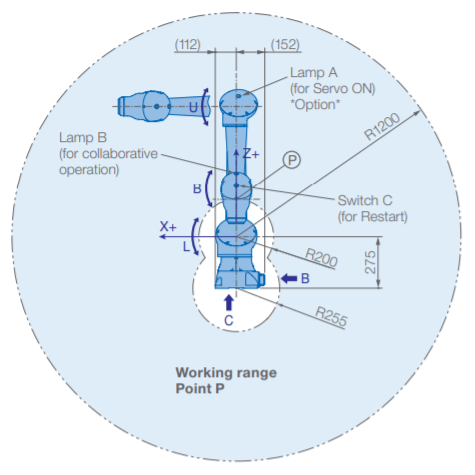

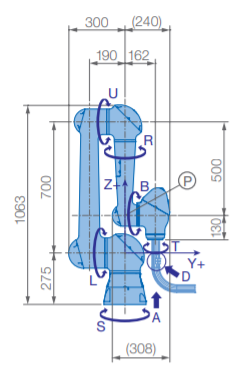

Offering a payload of 10 kg, an absolute reach (center of rotation S/L axis to center of rotation R/T axis) of 1,379 mm and an effective reach (center of rotation S/L axis to working point P) of 1,200 mm.
Typical applications include collaborative, simple assistance tasks in handling and assembly, palletizing, loading/unloading of machine tools or quality inspection.
The MOTOMAN HC10DTP Classic can be operated and programmed using hand guiding, standard teach pendant or the intuitive Smart Pendant. For particularly efficient programming via hand guiding, it has Direct Teach buttons on the wrist that can be used to accept taught positions immediately without having to confirm them on the teach pendant. This reduces programming times and makes it suitable for both professional system integrators and newbies. Many safety functions, e.g. automatic retraction from a clamping situation, or simply pushing the robot away with resumption of movement, distinguish it as a professional collaborative robot.

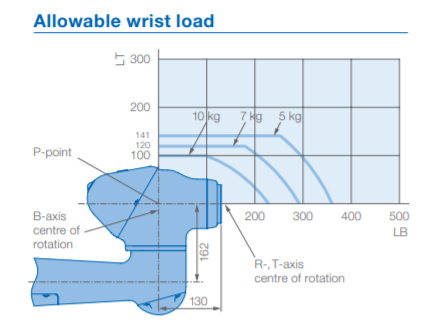

Payload | 10 kg |
Reach | 1379 mm |
Shijith V
Madox Technologies
Jan 27, 2023
Loqmane HASSANE
Stäubli
Oct 30, 2022

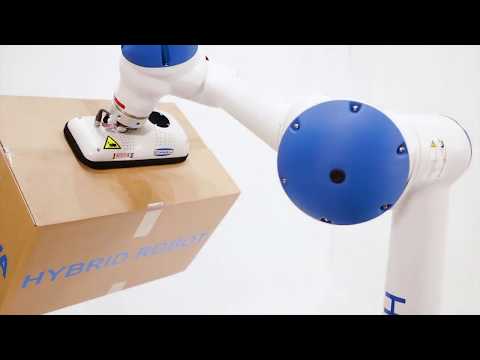

The cobot has multiple tasks in the same workstation. First the cobot forms the small cardboard boxes and puts them on a conveyor. After the small cardboard boxes are filled with products, the cobot grabs 8 of them at the same time with a vacuum gripper and places them in a big cardboard box. While the collaborative robot waits for the small boxes to be filled, he forms the big cardboard boxes and creates a buffer.
Learn moreProco Case Packer integrated with Motoman HC-10 Collaborative robot for packing the bottles in either necks-up or necks-down orientation mechanism.
Learn moreJust move the robot arm directly via hand guiding function to "teach" the cobot what to do.
Depending on the application, the HC10 can be used without a safety fence.
-torque sensors in each joint (6x)
-comprehensive safety settings in the functional safety unit (FSU), i.e. definition of cubes and planes
-high precision 3D modelled envelope curves of the whole manipulator
-two retraction movements: retract & clamp release function
-pushback function
-25 hardware and software safety functions
-PL d Cat. 3 certification according to EN ISO 13849-1
-rounded edges without clamping areas according to ISO/TS 15066

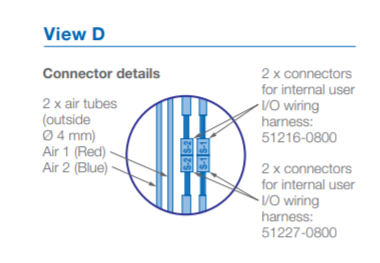

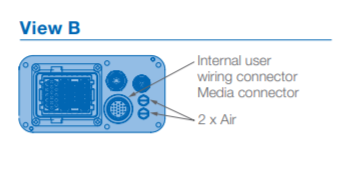

-internal media routing
HC10 easy to use features:

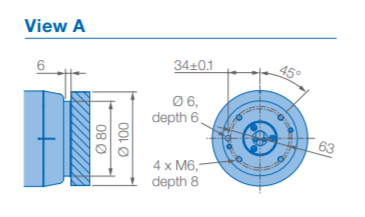

-ISO flange: directly attach grippers from the Yaskawa ecosystem
-internal media routing: no need for customized external cable packages
Yaskawa ecosystem:
-Ecosystem of 3rd party and Yaskawa inhouse plug&play and compatible products
-e-tutorials to support the first steps in setup, programming and configuration
There are two ways to easily program the HC10:
1. Smart Pendant:
-10 inch easy tablet programming with a simplified interface
-wizard programming for various applications
-plug&play wizard integration for many ecosystem products
-patented Smart Frame technology for automatic coordinate system adaption
-installation of updates, software wizards and settings via USB stick
-simple setup of safety settings
-integrated help menu
2. Direct Teaching:
-hand guiding function for direct movement of the cobot by hand
-teach points and actuate grippers directly on the flange by clicking the direct teach (DT) buttons on the flange
