AGI Automation Components AGC-40 TOOL CHANGER Specifications

No reviews yet.

Write a review!

Ranked Nr. 55 of 116 End of Arm Tools

FIND SUPPLIER

See all 116 End of Arm Tools

Add to comparison

Fail Safe - The locking mechanism remains locked even with a loss of pnumatic pressure.

Handles High Moments as Extremely High Repeatability - The index pin gives Tool Chang Adapters the ability to handle radical moments, with high repeatablity +/- 0.0005 in.

Fast Coupling - The robot adapter can couple with the tool mounting adapter in less than 1/2 second.

Low Deflection - The unique latching mechanism pulls the tool adapter into the robot adapter body - preloading the toll mounting adapter for excellent rigidity.

Coupling Window - The robat adapter pulls up the tool adapter, allowing the user to couple while up to 0.4" off the face of the tool mounting plate.

Type	Collision/Torque Sensors Compensation Unit Compilance Devices Connectors Dispensers Force Torque Sensors Sanders Screwdrivers Tool Changers Vacuum Generators Welding Torches Wrist Cameras
Payload	90.72 kg
Product mass	1.88 kg

AGC-40 TOOL CHANGER Downloads

Agc 40 robot tool changer

AGC-40 TOOL CHANGER Alternatives

See all 173 End of Arm Tools

AGI Automation Components AGC-20 TOOL CHANGER

Payload 31.75kg | Product mass 41.27kg

No reviews yet.

Fail Safe - The locking mechanism remains locked even with a loss of pnumatic pressure.Handles High Moments as Extremely High Repeatability - The index pin gives Tool Chang Adapters the ability to handle radical moments, with high repeatablity +/- 0.001 in.Fast Coupling - The robot adapter can couple with the tool mounting adapter in less than 1/2 second.Low Deflection - The unique latching mechanism pulls the tool adapter into the robot adapter body - preloading the toll mounting adapter for excellent rigidity.Coupling Window - The robat adapter pulls up the tool adapter, allowing the user to couple while up to 0.4" off the face of the tool mounting plate.

AGI Automation Components AGTC TOOL CHANGER

Payload 90.72kg | Product mass 1.88kg

No reviews yet.

The AGTC Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With its modular design, we offer the maximum flexibility for any application. OPTIONAL UTILITIES: 1. 4x M5 User Pneumatic Ports 2. Electrical Passthru (Signal, Communication, etc.) 3. Hardware Kit

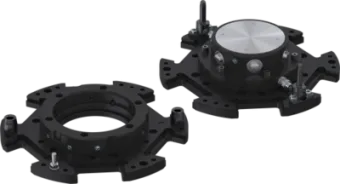

Zimmer SERIES WWR1000
