Applied Robotics QPGB Specifications

Write a review!

FIND SUPPLIER

Add to comparison

QPGB is a universal three-finger centric gripper, with a hollow center, featuring high reliability and a long service life, suitable for applications that require a center bore,(e.g. for workpiece feed, special sensor systems or optical recognition systems).

Number of fingers	0 1 2 3 4 5+
Operation type	Angular Parallel Vacuum Palletizer Magnetic Adhesive Soft Radial Centric
Extra info	Robust lightweight housing made of hard-coated aluminum alloy / Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance / Central through-hole which can be used for feed-through of supply hoses and utilities / Mounting from one side in two screw directions for versatile and flexible integration / Integrated permanent magnets for direct monitoring of piston movement / Slots for mounting and positioning magnetic-field sensors / Air supply via hose-free direct connections or fitting screw connections.

QPGB Downloads

QPGB 3 catalogue en rev 00 02 2020 ARI

QPGB Alternatives

See all 564 Grippers

SCHUNK PZV

Centric

4.8/5 (2)

The SCHUNK PZV 4-finger centric gripper offers a robust and precise solution for applications that demand more than the conventional two or three fingers can provide. Its design incorporates a multi-tooth guidance system, ensuring accurate handling even in complex tasks. The gripper's wedge-hook design further enhances its capabilities by enabling high power transmission and synchronized gripping, making it suitable for tasks that require both strength and precision.One of the standout features of the SCHUNK PZV gripper is its adaptable air supply system. The gripper can be connected directly through hose-free connections or screw connections, allowing for flexible pressure supply across various automated systems. The comprehensive sensor accessory program adds versatility by enabling diverse querying possibilities and stroke position monitoring, enhancing the gripper's adaptability to different applications.A lesser-known yet crucial specification is the pressure reduction capability for certain models, such as the PZV 160 and 200, when used in a two-finger configuration. In this scenario, the operating pressure must be reduced to a maximum of 5 bar. Additionally, the gripper's integrated air purge connection serves to prevent dirt ingress into the gripper's internals, ensuring its longevity and reliability even in demanding industrial environments.

FESTO Three-point gripper DHDS

Parallel

4.7/5 (2)

Three-point grippers make it possible to pick up a workpiece centrally. These products are available in different versions from Festo. Standard three-point grippers are suitable for the universal handling of small parts in a clean environment. To absorb high forces, Festo provides three-finger gripper systems with a resilient T-slot guide for internal and external gripping. Sealed three-point grippers are suitable for handling tasks in very dirty and demanding environments.

SCHUNK PGN-plus-P

Payload 4.35kg | Parallel

4.3/5 (5)

Universal 2-finger parallel gripper with permanent lubrication, high gripping force, and high maximum moments due to the use of a multi-tooth guidance.

SCHUNK PZB-plus

Centric

No reviews yet.

Universal 3-finger centric gripper with large gripping force and high maximum moments per finger, plus center bore.

SCHUNK PGB

Parallel

4.3/5 (5)

Universal 2-finger parallel gripper with a high gripping force and high moment capacity due to the multi-tooth slideway as well as the center bore.

Applied Robotics QPG – 3-FINGER

Parallel

No reviews yet.

QPG is a universal three-finger-centric gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Applied Robotics QPG – 2-FINGER

Parallel

No reviews yet.

QPG is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications. ADVANTAGES:Robust and lightweight housing made of hard coated aluminum alloy.Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling and easy maintenance.Wedge-hook design for high-force transmission and jaw synchronization.Compact dimensions for minimal impact in space sensitive applications.Mounting from two sides in three screw directions for versatile and flexible integration.Integrated permanent magnets for direct monitoring of piston movement.Slots for mounting and positioning of magnetic-field sensors.Air supply via hose-free direct connections or fitting screw connections.

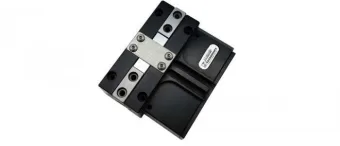

Applied Robotics QPG-TECH 2-FINGER
