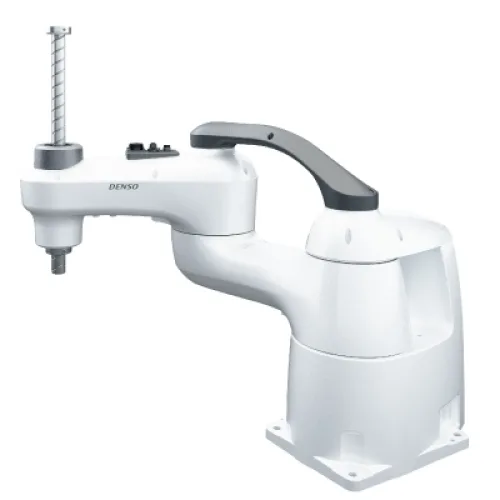

DENSO HSR-048/055/065 Pricing & Product Details

Ranked Nr. 94 of 161 SCARA Robots

See all 161 SCARA Robots

HSR-048/055/065 Pricing

Price indication:

HSR-048/055/065 Overview

What is HSR-048/055/065?

Speedy start, speedy continuation of motion, and accurate stopping.


Total arm length|480 / 550 / 650 mm
Vertical stroke(Z)
|100 / 200 / 320 / 510 mm
Maximum payload
|8kg
Cycle time
|0.28 / 0.31 sec


True High Speed performance never seen before has been achieved.
Sometimes, the performance of a robot cannot be known only from its specifications. You may not be confident whether it can complete the motion within the listed cycle time, or whether it can actually continue its motion. To address those challenges, we have pursued the basic performances of robots—quick acceleration; runs continuously at high speed; stops precisely—that have been requested from fields to the utmost limits, and have developed new high-speed SCARA robots, the HSR Series, that can achieve "True high-speed performance." As a result of pursuing high-speed performance, high-speed picking systems can be realized with small, space-saving robots not only in conventional parts assembly processes, but also in packaging processes of food, medical supplies, and cosmetics, which is bringing about a revolution in performance.

Technical Features:

High-speed motion
High acceleration & motion profiles.
Improved CPM (cycle per minute) allows the robot to
move at high speed continuously.


Continuous motion
Achieving Non-Stop continuous motion.
Improved heat dissipation performance at the base unit allows the robot to achieve continuous motion, which is required in actual processes.


Vibration control
The robot can suppress vibrations in a short time by actively reflecting the status of the arm to vibration control. This can suppress vibrations that occur with high-speed transfer and residual vibrations, reducing the cycle time.


Light weight

Newly designed, highly rigid,lightweight arm.
The combination of between high rigidity and light weight allows the robot to achieve a high payload (8kg) and high-speed motion at the same time.


Improved flexibility in mounting direction

The mounting direction can be switched.
Floor and ceiling mount models available.


Optimum layout

A large-capacity motor is integrated into the base unit. Weight reduction at the tip of the arm and optimized arm structure allow the robot to improve its high-speed performance.

What are the specifications of HSR-048/055/065?

Horizontal Reach 480-650 mm
Payload 8 kg
Repeatability ±0.01-±0.012 mm
