FANUC CRX-10iA/L Pricing & Product Details

4.8/5 (5) Write a review!

Ranked Nr. 26 of 219 Cobots

CRX-10iA/L Overview

What is CRX-10iA/L?

The CRX-10iA/L Collaborative Robot, featuring a 10kg payload and 1,418mm reach, stands out with its unique underflip motion, providing versatile solutions for industrial applications. With 8 years of zero maintenance, it ensures long-term reliability. Its lightweight and compact design facilitates easy integration into diverse work areas, and installation is simplified without the need for a crane, thanks to the CRX Collaborative Robots using FANUC’s compact R-30iB Mini Plus Controller, operating on standard 230V power.

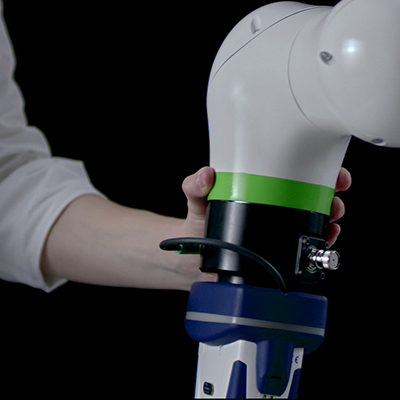

Programming the CRX-10iA/L is user-friendly, employing a new teach pendant interface for lead-through teaching and drag-and-drop programming. FANUC's CRX e-Learning videos further enhance the ease of setup, making it quick for production initiation. The robot offers versatility in peripherals with two connection ports on the J6 axis, allowing quick interchangeability for end-of-arm tooling like grippers and cameras. FANUC intelligent features enable seamless connections to iRVision, force sensors, and more, expanding its adaptability in industrial automation.

What applications is CRX-10iA/L product best for?

In addition to its low weight, the Fanuc CRX-10iA/L has many features that make it well-suited for a wide range of industrial applications. For example, its compact size and flexibility make it easy to integrate into existing production processes, whether it's for small parts assembly, packaging, or material handling.

The robot is also highly precise and can perform tasks with a high degree of accuracy, making it a great choice for quality control applications. Its underflip motion can be used to handle delicate or irregularly shaped items without damaging them, making it ideal for pick-and-place applications.

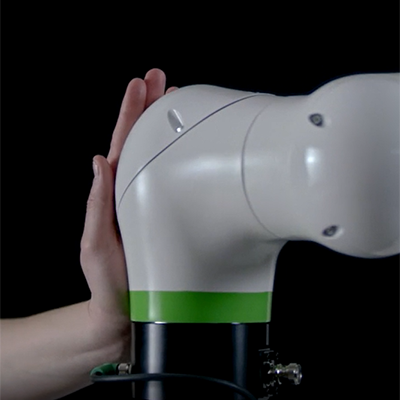

The CRX-10iA/L's collaborative design also makes it safe to work alongside human operators, which is useful in settings where close collaboration is required. It has a soft outer covering, so it won't hurt workers if they accidentally come into contact with it.

As mentioned, the CRX-10iA/L is well-suited for automated guided vehicle (AGV) applications, where it can be easily installed on a mobile platform to provide automated material handling capabilities. This makes it a great tool for manufacturers looking to automate their warehouse or distribution operations.

Additionally, the CRX-10iA/L's compliance with safety standards makes it suitable for use in applications where safety is of paramount importance, such as in the medical industry, where it can be used to assist in surgeries or perform other tasks that require high precision and accuracy.

What are the specifications of CRX-10iA/L?

CRX-10iA/L Images

CRX Series Reviews

WRITE A REVIEW!
checkmark
  • Overall

    4.8/5 (5)

Nathan Jones

Pari-Robotics

Jan 18, 2023

  • Overall

    4.6/5

  • Meet Requirements

    3/5

  • Easy to Use

    5/5

  • Quality of Documentation

    5/5

  • Quality of Support

    5/5

  • Maintenance & Uptime

    5/5

  • Safety

    5/5

  • Compatibility

    4/5

  • Value for Money

    4/5

  • Recommendation

    5/5

Period
  • 2022
Title
Vision Inspections
Pro
Collaborative robots, per Universal Robots, are a form of robotic automation built to work collaboratively alongside humans. Unlike industrial robots, which operate behind cages and several different types of safety equipment, collaborative robots work without any form of external safety equipment.
Con
The use of Industrial robots can be very dangerous to both operators and maintenance personal, including robot programmers, because industrial robots are unable to sense people in the operational envelope of the robot’s reach.

Julian Hernandez

Integrator

Mar 8, 2022

  • Overall

    4.6/5

  • Meet Requirements

    5/5

  • Easy to Use

    3/5

  • Quality of Documentation

    5/5

  • Quality of Support

    5/5

  • Maintenance & Uptime

    5/5

  • Safety

    5/5

  • Compatibility

    4/5

  • Value for Money

    5/5

  • Recommendation

    4/5

Period
  • 2022
Title
Laser Applications with Cobots
Pro
I have been working since 2021 with this cobot in laser cleaning operations. Fanuc has always had a very well know experience in robot operations and this brand offers it with their cobots : - Due to their "cumulative philosophy" knowledge in Fanuc robots, you can find industrial functions into the Cobot. You can exchange your TP tablet for an industrial fanuc Teachpendant ... so industrial robots operator may adapt very fast to this cobot. - Regarding the Tablet teachpendant, you can change between the easy interface for cobot operations and an industrial fanuc robot TP interface. - They have a very good and reactive technical support. - Singularity management is good when arriving to high speed positions. - It is a very good advantage the "underflip" option. No need to do a 180° J1 robot mouvement to achieve back positions ... to Temps Cycle may be shorter. - Obviously, DCS option is already implemented. - You can use the "sliding blocks programming way" to do some algorithms in the robot, so an easier way of programming is available. - The "hand" operation of the robot can be adjusted. You can select the strenght of the cobot doing this manual operation. - The quality of construction is very remarkable. - Fanuc offers complementary technologies as a very good 3d camera, 2d cameras and sensors compatibles with the cobot.
Con
- The tablet application is sometimes slow and not that easy to handle (just talking about the table usage regarding a normal teachpendant) - Everytime the user changes one security parameter, the cobot must be restarted. It takes a lot of time. - This cobot is created mostly for users with experience. Somebody without robot knowledge may have problems using this cobot. You must do the fanuc academy course. - There is not an available cockpit to command the robot by "hand". - New options, updates and complementary bricks must be always paid. Not even the communications bricks are included (i.e. Modbus, profinet, Ethernet, etc). - Even if underflip is a very good advantage, the space between the J2 joint and the J5 joint is very small ... there is a risk of capturing user's fingers during the mouvement. - Not a very opened brand, not available for ROS. Inexistant blog to solve issues in internet as from other brands, you will always need to call fanuc support if you have big issues.

CRX Series Use-Cases

Bin picking with FANUC CRX-10iA at FAMAR

Famar builds machine tools for the automotive sector. They have 210 employees and a turnover of 70 million per year. They made 6000 machines over the past 40 years. They want to upgrade their machines that go to the customer with a cobot. The CRX is easy to use and Fanuc offers great support in every country. These two things are necessary as the cobot is delivered as part of the solution to customers all over the world.

Learn more

Collaborative Robotic Palletizer Fanuc CRX

A collaborative palletizing solution that addresses key labor concerns and reduces the cost associated with large safety fences and sensors. The solution utilizes a FANUC CRX 10iA/L cobot to stack pallets up to heights of 95” using a vertical axis to adjust the robot height as the pallet layers increase in height.

Learn more
