FANUC CRX-20iA/L Pricing & Product Details

4.8/5 (5) Write a review!

Ranked Nr. 25 of 228 Cobots

CRX-20iA/L Overview

What is CRX-20iA/L?

The CRX-20iA/L Collaborative Robot is a notable addition to the CRX family, featuring a 20 kg payload and 1,418 mm reach. Its distinctive under-flip motion makes it ideal for applications requiring a higher payload in a compact space. Notably, the CRX Series boasts 8 years of zero maintenance, ensuring reliability in various tasks such as palletizing, welding, machine load/unload, inspection, and material removal. Its lightweight, compact design facilitates easy integration into diverse work areas without the need for a crane or lifting equipment.

Installation is simplified with the CRX Collaborative Robot, running on standard 120V power and utilizing FANUC's compact R-30iB Mini Plus Controller for space efficiency. The new easy programming feature allows users to teach points effortlessly through lead-through teaching and drag-and-drop programming, supported by instructional e-Learning videos for quick setup and production initiation. The CRX-20iA/L offers versatility in peripherals, with two connection ports on the J6 axis for quick interchangeability of end-of-arm tooling, including grippers and cameras. Additionally, seamless integration with FANUC intelligent features allows easy connection to iRVision, force sensors, and more, enhancing its adaptability for diverse industrial applications.

What applications is CRX-20iA/L product best for?

Because of its very low weight, the CRX can be easily installed in a broad range of applications such as automated guided vehicles (AGV).

What are the specifications of CRX-20iA/L?

Payload 20 kg
Reach 1418 mm

CRX Series Images

CRX Series Reviews

WRITE A REVIEW!
checkmark
  • Overall

    4.8/5 (5)

Write Review

Nathan Jones

Pari-Robotics

Jan 18, 2023

  • Overall

    4.6/5

  • Meet Requirements

    3/5

  • Easy to Use

    5/5

  • Quality of Documentation

    5/5

  • Quality of Support

    5/5

  • Maintenance & Uptime

    5/5

  • Safety

    5/5

  • Compatibility

    4/5

  • Value for Money

    4/5

  • Recommendation

    5/5

Period
  • 2022
Title
Vision Inspections
Pro
Collaborative robots, per Universal Robots, are a form of robotic automation built to work collaboratively alongside humans. Unlike industrial robots, which operate behind cages and several different types of safety equipment, collaborative robots work without any form of external safety equipment.
Con
The use of Industrial robots can be very dangerous to both operators and maintenance personal, including robot programmers, because industrial robots are unable to sense people in the operational envelope of the robot’s reach.

Julian Hernandez

Integrator

Mar 8, 2022

  • Overall

    4.6/5

  • Meet Requirements

    5/5

  • Easy to Use

    3/5

  • Quality of Documentation

    5/5

  • Quality of Support

    5/5

  • Maintenance & Uptime

    5/5

  • Safety

    5/5

  • Compatibility

    4/5

  • Value for Money

    5/5

  • Recommendation

    4/5

Period
  • 2022
Title
Laser Applications with Cobots
Pro

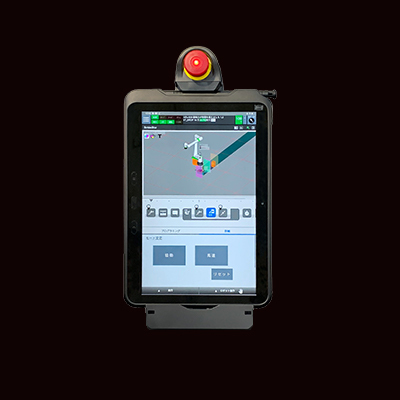

I have been working since 2021 with this cobot in laser cleaning operations. Fanuc has always had a very well know experience in robot operations and this brand offers it with their cobots : - Due to their "cumulative philosophy" knowledge in Fanuc robots, you can find industrial functions into the Cobot. You can exchange your TP tablet for an industrial fanuc Teachpendant ... so industrial robots operator may adapt very fast to this cobot. - Regarding the Tablet teachpendant, you can change between the easy interface for cobot operations and an industrial fanuc robot TP interface. - They have a very good and reactive technical support. - Singularity management is good when arriving to high speed positions. - It is a very good advantage the "underflip" option. No need to do a 180° J1 robot mouvement to achieve back positions ... to Temps Cycle may be shorter. - Obviously, DCS option is already implemented. - You can use the "sliding blocks programming way" to do some algorithms in the robot, so an easier way of programming is available. - The "hand" operation of the robot can be adjusted. You can select the strenght of the cobot doing this manual operation. - The quality of construction is very remarkable. - Fanuc offers complementary technologies as a very good 3d camera, 2d cameras and sensors compatibles with the cobot.
Con
- The tablet application is sometimes slow and not that easy to handle (just talking about the table usage regarding a normal teachpendant) - Everytime the user changes one security parameter, the cobot must be restarted. It takes a lot of time. - This cobot is created mostly for users with experience. Somebody without robot knowledge may have problems using this cobot. You must do the fanuc academy course. - There is not an available cockpit to command the robot by "hand". - New options, updates and complementary bricks must be always paid. Not even the communications bricks are included (i.e. Modbus, profinet, Ethernet, etc). - Even if underflip is a very good advantage, the space between the J2 joint and the J5 joint is very small ... there is a risk of capturing user's fingers during the mouvement. - Not a very opened brand, not available for ROS. Inexistant blog to solve issues in internet as from other brands, you will always need to call fanuc support if you have big issues.

CRX Series Use-Cases

Bin picking with FANUC CRX-10iA at FAMAR

Famar builds machine tools for the automotive sector. They have 210 employees and a turnover of 70 million per year. They made 6000 machines over the past 40 years. They want to upgrade their machines that go to the customer with a cobot. The CRX is easy to use and Fanuc offers great support in every country. These two things are necessary as the cobot is delivered as part of the solution to customers all over the world.

Learn more

Collaborative Robotic Palletizer Fanuc CRX

A collaborative palletizing solution that addresses key labor concerns and reduces the cost associated with large safety fences and sensors. The solution utilizes a FANUC CRX 10iA/L cobot to stack pallets up to heights of 95” using a vertical axis to adjust the robot height as the pallet layers increase in height.

Learn more
