Fiessler Light curtains ULVT Specifications

No reviews yet.
Write a review!

Ranked Nr. 168 of 122 Safety Scanners

FIND SUPPLIER

See all 122 Safety Scanners

Properties:

integrated control-unit with contactor control and restart activatable by DIP switches activatable

contactor/valves directly connectablly, switching capacity 0,5A/24V

smallest safety distances by short response times 4,5ms to 24,5ms, depending of the protection high

smallest obstacle recognition of 14mm from 0,3m to 7m range

protection heights of 100mm to 1900mm in 100mm steps

microprocessor monitoring of the safety functions

built in selfdiagnostic with error display

muting and stroke operation with optional safety control-unit PLSG

protective system IP65

Optical Safety Device
  • Safety Light Curtain
  • Safety Scanner

Light curtains ULVT Downloads

958
You need to register to download this file.
C1 PR ULVT BLVT GB
You need to register to download this file.

Light curtains ULVT Alternatives

See all 216 Safety Scanners

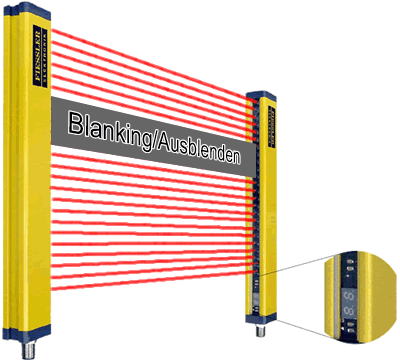

Fiessler Safety Light Curtains with Blanking features BLVT
No reviews yet.
Properties: Blanking features for blanking any obstacles in the detection field integrated switching unit, contactor control and restart interlock activated by Dip-switches can be connected directly to contactors/valves, switching capacity 0,5A/24V minimum safety distance due to short response times, between 5 ms and 25 ms, depending on constructional length detection of smallest obstacles (14 mm / 30 mm) inside a detection range of 7 meters / 24 meters between 7 and 247 beams with protective heights from 100 up until 2500 mm micro-processor controlled safety functions muting and stroke operation with optional safety control-unit PLSG self-monitoring semiconductor outputs with line interruption monito ring, short-circuit- and side current passages check built-in self-diagnosis with error display protective system IP 65 (waterproof sealed)
Fiessler Safety Light curtains BLCT
No reviews yet.
Properties: Integrated control-unit with contactor control and restart can be programmed without a PC Contactor/valves directly connectablly, switching capacity 0,5A/24V Smallest safety distances by short response times 4 ms to 29 ms, depending of the protection high Finger and hand protection with up to 5m protective width(resolution 14 mm and 30 mm) Protection heights from 100mm to 1500 mm in steps of 100 mm Microcontroller monitoring of the safety functions (self-monitored) Semiconductor outputs with short-circuit and crossconnection monitoring Integrated self-diagnosis with a fault indication by 7-digit display Optional safety switchgears permit muting and clocked operation Direct connection via M12 connector Compact design 25 x 35 mm w/ flexible fastening by tenon blocks and protection category IP 65

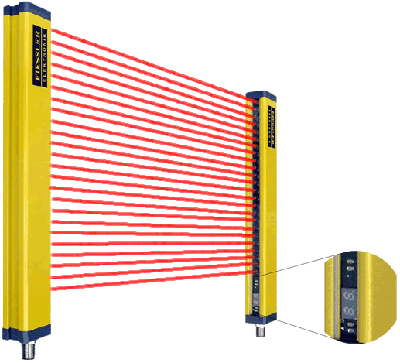

Fiessler Safety Light curtains ULCT
No reviews yet.
Properties: Integrated control-unit with contactor control and restart can be programmed without a PCContactor/valves directly connectablly, switching capacity 0,5A/24VSmallest safety distances by short response times 4 ms to 29 ms, depending of the protection highFinger and hand protection with up to 5m protective width(resolution 14 mm and 30 mm)Protection heights from 100mm to 1500 mm in steps of 100 mmMicrocontroller monitoring of the safety functions (self-monitored)Semiconductor outputs with short-circuit and crossconnection monitoringIntegrated self-diagnosis with a fault indication by 7-digit displayOptional safety switchgears permit muting and clocked operationDirect connection via M12 connectorCompact design 25 x 35 mm w/ flexible fastening by tenon blocks and protection category IP 65
See all Light curtains ULVT Alternatives
