HITBOT Z-Arm 2442 Pricing & Product Details
Ranked Nr. 272 of 221 Cobots
Z-Arm 2442 Pricing
Choose your model
Price indication:Z-Arm 2442 Overview
What is Z-Arm 2442?

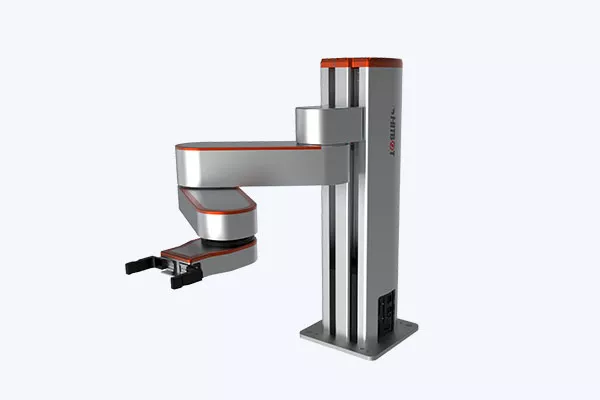

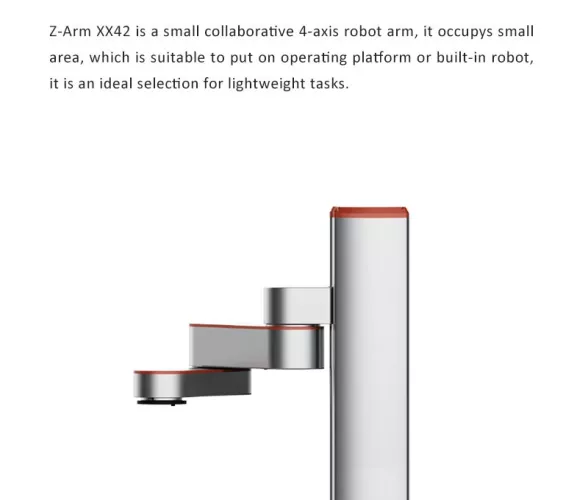

The Hitbot Z-Arm 2442 is a collaborative robotic arm designed for various industrial applications. This lightweight robotic arm weighs only 19kg and has a compact design, making it easy to install and use in confined spaces. The robot has a built-in motion controller, with 24 I/O ports for extensibility and adding one more arm.

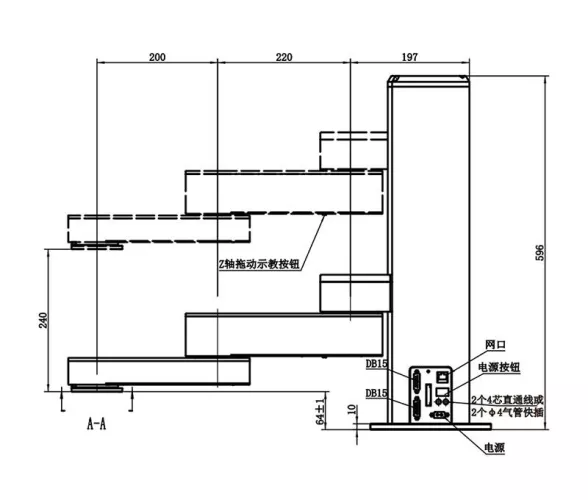

The robot has four axes, with a maximum payload of 3kg and a rated payload of 2kg. The robot arm has a reach of 220mm for the J1 axis, 200mm for the J2 axis, and 240mm for the Z-axis. The rotation range for the J1 axis is ±90°, for the J2 axis is ±164°, and for the R-axis (optional) is ±1080°. The maximum average linear velocity of the robot arm is 1255.45mm/s (with a 1.5kg payload) and 1023.79mm/s (with a 2kg payload). The repeatability of the robot arm is ±0.03mm.
The robot arm supports HITBOT grippers such as Z-EFG-8S, Z-EFG-12, Z-EFG-20, Z-EFG-20S, Z-EFG-30, and Z-EFG-50. Additionally, the robot arm has optional accessories such as grippers, a 5th axis, a 485 board, and a 3D printing kit. The robot arm has a customizable Z-axis height ranging from 0.1-1 meter and supports drag-to-teach programming.
The robot arm has a voltage of 220V/110V 50-60Hz DC24V and power of 500W. The robot arm communicates through Ethernet and has a working temperature range of 0-55℃ with RH85 humidity. The robot arm has digital input (isolated) with 9+3 arm extensibility and digital output (isolated) with 9+3 extensibility for one more arm. The robot arm has collision detection technology, making it safe to operate in human-machine collaboration scenarios.
Overall, the Hitbot Z-Arm 2442 is a high-performance and versatile robotic arm that can be used in various industrial applications, including pick-and-place, assembly, and packaging. With its lightweight and compact design, customizable height, and extensibility, it is an excellent choice for industries looking for cost-effective and efficient automation solutions.
What applications is Z-Arm 2442 product best for?
The Hitbot Z-Arm 2442 is a versatile robotic arm that can be used in various industrial applications that require high-precision, high-speed, and high-repeatability automation. Some of the applications that the robot arm is best suited for include:
1. Pick-and-place operations: The robot arm's high-speed and precision make it ideal for pick-and-place operations that require accuracy and speed.
2. Assembly: The robot arm's high-precision and repeatability make it suitable for assembly operations, especially in the electronics and automotive industries.
3. Packaging: The robot arm can be used in packaging applications that require high-speed and precision in picking and placing products.
4. Material handling: The robot arm can be used in material handling operations, such as moving products between different workstations or loading and unloading machines.
5. Inspection: The robot arm can be used for inspection applications that require high-precision and repeatability, such as in quality control processes.
6. 3D Printing: With its optional 3D printing kit, the robot arm can also be used for additive manufacturing applications.
Overall, the Hitbot Z-Arm 2442 is best suited for applications that require high-precision, high-speed, and high-repeatability automation. Its versatility and ease of use make it an excellent choice for various industrial automation applications.
What are the specifications of Z-Arm 2442?
| Payload | 3 kg |
