- Z-Arm 2442
- Specifications
The Hitbot Z-Arm 2442 is a collaborative robotic arm designed for various industrial applications. This lightweight robotic arm weighs only 19kg and has a compact design, making it easy to install and use in confined spaces. The robot has a built-in motion controller, with 24 I/O ports for extensibility and adding one more arm.
The robot has four axes, with a maximum payload of 3kg and a rated payload of 2kg. The robot arm has a reach of 220mm for the J1 axis, 200mm for the J2 axis, and 240mm for the Z-axis. The rotation range for the J1 axis is ±90°, for the J2 axis is ±164°, and for the R-axis (optional) is ±1080°. The maximum average linear velocity of the robot arm is 1255.45mm/s (with a 1.5kg payload) and 1023.79mm/s (with a 2kg payload). The repeatability of the robot arm is ±0.03mm.
The robot arm supports HITBOT grippers such as Z-EFG-8S, Z-EFG-12, Z-EFG-20, Z-EFG-20S, Z-EFG-30, and Z-EFG-50. Additionally, the robot arm has optional accessories such as grippers, a 5th axis, a 485 board, and a 3D printing kit. The robot arm has a customizable Z-axis height ranging from 0.1-1 meter and supports drag-to-teach programming.
The robot arm has a voltage of 220V/110V 50-60Hz DC24V and power of 500W. The robot arm communicates through Ethernet and has a working temperature range of 0-55℃ with RH85 humidity. The robot arm has digital input (isolated) with 9+3 arm extensibility and digital output (isolated) with 9+3 extensibility for one more arm. The robot arm has collision detection technology, making it safe to operate in human-machine collaboration scenarios.
Overall, the Hitbot Z-Arm 2442 is a high-performance and versatile robotic arm that can be used in various industrial applications, including pick-and-place, assembly, and packaging. With its lightweight and compact design, customizable height, and extensibility, it is an excellent choice for industries looking for cost-effective and efficient automation solutions.
Robot mass | 19 kg |
Number of Axes | 4 |
Repeatability | 0.03 mm |
Payload | 3 kg |
Z-Arm 2442 Alternatives
See all 331 CobotsElephant Robotics mechArm 270-Pi
Payload 0.25kg | Reach 270mmElephant Robotics All-In-One Suite
4.1/5 (1)
FANUC CRX-10iA
Payload 10kg | Reach 1249mm4.8/5 (5)
OMRON TM 5-900
Payload 4kg | Reach 900mmOMRON TM 5-700
Payload 6kg | Reach 700mmOMRON TM12
Payload 12kg | Reach 1300mmOMRON TM14
Payload 14kg | Reach 1100mmFLEXIV Rizon 4
Payload 4kg | Reach 780mmFANUC CRX-5iA
Payload 5kg | Reach 994mm4.8/5 (5)

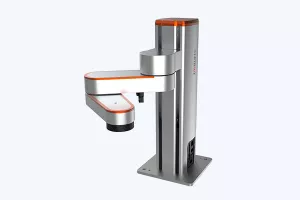

HITBOT Z-Arm 1832
