Hypersen HPS-FT060E Pricing & Product Details
Ranked Nr. 157 of 115 End of Arm Tools
HPS-FT060E Overview
What is HPS-FT060E?

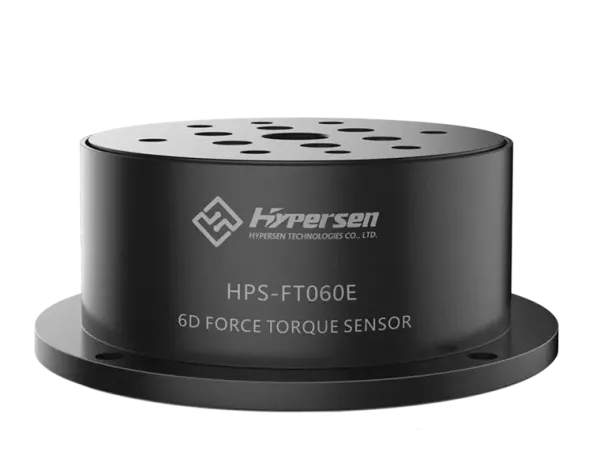

Hypersen's HPS-FT060E is a high-performance force and torque sensor designed to measure forces and torques on three spatial axes of XYZ. It is equipped with a high-performance processor and 24-bit ADC, ensuring accurate and reliable data collection. The sensor has a high SNR digital output and provides a 2000Hz output data rate, which is suitable for high-speed applications. The device has a high static overload protection and can withstand forces and torques up to 350% of its maximum rated measurement range without damage.
The HPS-FT060E has a low zero drift & cross-axis effect, and low temperature drift, which ensures the accuracy of the sensor over time. It is available with Ethernet, EtherCAT, Analog, and RS-485 communication, making it compatible with a variety of applications. The device is suitable for use in industrial robots, collaborative robots, factory automation, and more.
The sensor has a measuring range of ±600N for the Fxy axis, ±800N for the Fz axis, and ±15Nm for the Mxy and Mz axes. The precision of the device is 0.2N for the Fxy axis, 0.4N for the Fz axis, and 0.002Nm for the Mxy and Mz axes. The device has an overload limit of 350% of its maximum rated measurement range for all axes of force and moment measurement. The HPS-FT060E has a protection class of IP65 and a hysteresis of 0.1% F.S. The non-linearity is less than 1.25%, and creep is less than 2%. The signal noise is 0.03N for the Fxy axis, 0.12N for the Fz axis, and 0.001N for the Mxy and Mz axes. The crosstalk is less than 2% F.S. for all axes of measurement. The sensor weighs 255g and has a size of 877828.5mm.
What applications is HPS-FT060E product best for?
The Hypersen HPS-FT060E is a highly capable force and torque sensor that is ideal for a range of applications in the industrial and automation sectors. One of its key applications is in robot hand guiding, where the sensor's high precision and accuracy make it an ideal tool for controlling the movements of robotic arms.
Another key application for the HPS-FT060E is in surface polishing, where the sensor's ability to accurately measure the forces and torques involved in the polishing process can help to optimize the performance of automated polishing machines.
The sensor is also well-suited to force-controlled assembly applications, where it can be used to ensure that components are assembled with the correct amount of force, thus reducing the risk of damage or failure.
In machine tending applications, the HPS-FT060E can be used to monitor the forces and torques involved in the machining process, helping to optimize performance and reduce the risk of damage to machinery.
Finally, the sensor's high accuracy and precision make it an ideal choice for force feedback control applications, where it can be used to provide accurate feedback to operators, helping to improve the efficiency and safety of a wide range of automated systems. Similarly, the sensor can be used for robot collision avoidance, where its ability to measure forces and torques can help to prevent collisions and ensure safe operation of robotic systems.
