Hypersen HPS-FT060E Specifications

No reviews yet.
Write a review!

Ranked Nr. 157 of 116 End of Arm Tools

FIND SUPPLIER

See all 116 End of Arm Tools

Hypersen's HPS-FT060E is a high-performance force and torque sensor designed to measure forces and torques on three spatial axes of XYZ. It is equipped with a high-performance processor and 24-bit ADC, ensuring accurate and reliable data collection. The sensor has a high SNR digital output and provides a 2000Hz output data rate, which is suitable for high-speed applications. The device has a high static overload protection and can withstand forces and torques up to 350% of its maximum rated measurement range without damage.

The HPS-FT060E has a low zero drift & cross-axis effect, and low temperature drift, which ensures the accuracy of the sensor over time. It is available with Ethernet, EtherCAT, Analog, and RS-485 communication, making it compatible with a variety of applications. The device is suitable for use in industrial robots, collaborative robots, factory automation, and more.

The sensor has a measuring range of ±600N for the Fxy axis, ±800N for the Fz axis, and ±15Nm for the Mxy and Mz axes. The precision of the device is 0.2N for the Fxy axis, 0.4N for the Fz axis, and 0.002Nm for the Mxy and Mz axes. The device has an overload limit of 350% of its maximum rated measurement range for all axes of force and moment measurement. The HPS-FT060E has a protection class of IP65 and a hysteresis of 0.1% F.S. The non-linearity is less than 1.25%, and creep is less than 2%. The signal noise is 0.03N for the Fxy axis, 0.12N for the Fz axis, and 0.001N for the Mxy and Mz axes. The crosstalk is less than 2% F.S. for all axes of measurement. The sensor weighs 255g and has a size of 877828.5mm.

Application
  • Agriculture
  • Cleaning and maintenance
  • Delivery
  • Material handling
  • Picking and Packing
  • Security and surveillance
  • Transportation
Industry
  • Agriculture
  • Healthcare
  • Logistics
  • Manufacturing
  • Mining
  • Retail
  • Warehousing
Overload Limit (Moment) 52.5 Nm
Overload Limit (Force) 2800 N
Product mass 0.255 kg
Range (Force) 800 N
Range (Moment) 15 Nm
Type
  • Collision/Torque Sensors
  • Compensation Unit
  • Compilance Devices
  • Connectors
  • Dispensers
  • Force Torque Sensors
  • Sanders
  • Screwdrivers
  • Tool Changers
  • Vacuum Generators
  • Welding Torches
  • Wrist Cameras

HPS-FT060E Alternatives

See all 173 End of Arm Tools

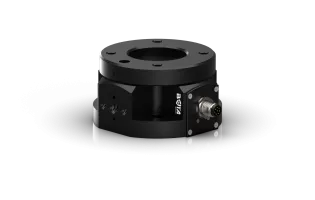

Bota Systems Rokubi
Product mass 0.12kg

4.7/5 (5)

Robuki's Rokubi FT sensor is an excellent choice for a variety of applications due to its compact design, robust structure, and versatile features. With a weight of only 120g, this small form factor sensor is perfect for use in rehabilitation, robotic surgery, polishing, sanding, and other fine mechanics tasks.This force-torque sensor is equipped with integrated signal processing electronics, a 6 DoF IMU, and temperature sensors, all housed in a compact package. It can measure on 6 axes with 6 DoF IMU (available only with EtherCAT communication), providing direct force and torque data in N and Nm. The sensor is also resistant to dust, water, and extreme environments, making it an ideal choice for outdoor and industrial applications.The Rokubi FT sensor is compatible with a range of software platforms, including TwinCAT, ROS, LabVIEW, and MATLAB, which makes it easy to integrate into existing systems. Additionally, the sensor comes with complete installation kits for use with Kinova Jaco, making integration with this popular robotic arm easy.One of the significant advantages of Robuki's Rokubi FT sensor is its open-source software compatibility, which enables users to customize and adjust the sensor's settings and functionalities according to their needs. The sensor is also CE compliant, ensuring that it meets the high-quality standards required for European markets.Finally, the sensor is equipped with overload protection and high-stiffness structure, which means that it can withstand high impact forces and will not deform even under heavy loads. Overall, the Robuki Rokubi FT sensor is an excellent choice for those looking for a versatile, compact, and robust force-torque sensor for a wide range of applications.

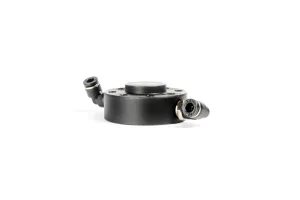

SMARTSHIFT robotics Manifold Pneumatic
